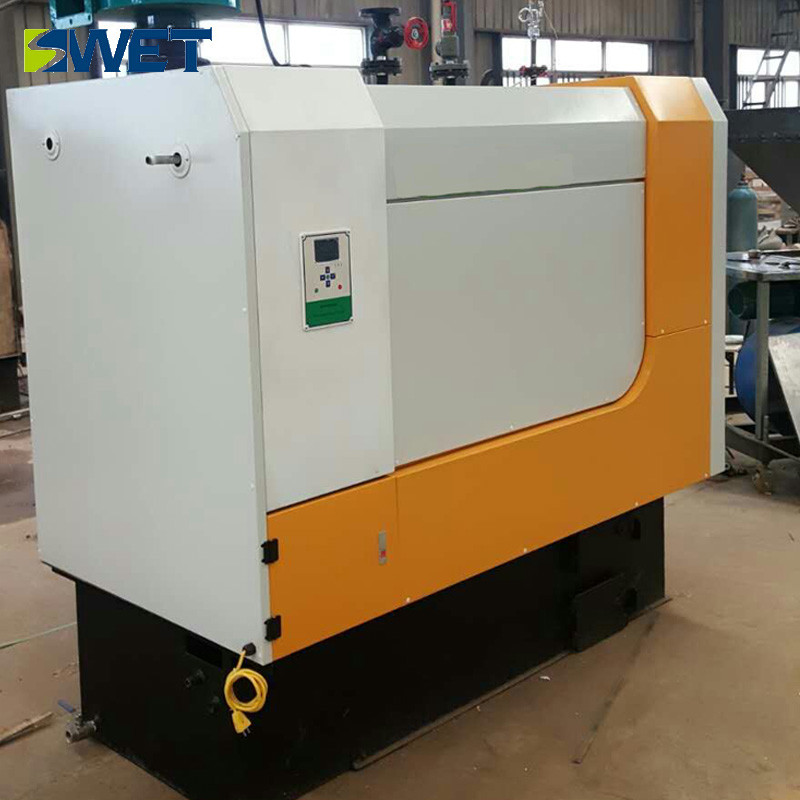

400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency

Certification
Good quality Gas Steam Boiler for sales
Good quality Gas Steam Boiler for sales
We are very satisfied the machine, it's easy to assemble and operate. advanced controlling theory with high-performance PLC, high level of automatic.

—— Smith

During the three times cooperation, all the machines are working well, hope your company getting better and better. A good beginning is half done.

—— Abdul Moiz

I'm Online Chat Now

400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency

China 400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency supplier
400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency supplier 400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency supplier 400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency supplier 400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency supplier

Large Image :  400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency

Product Details:

Place of Origin: HENAN CHINA
Brand Name: SWET
Certification: ISO 9001
Model Number: LSS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 400kg/h Steam Pressure: 0.7Mpa
Rated Steam Temperature: 170℃ Thermal Efficiency: 93%
Color: Customer's Requirement Design Fuel: Oil Gas
Warranty: 12 Months Weight: 3000kg
Dimension: 2350x1750x2200mm Material: Boiler Steel



400kg / H Industrial Steam Boiler , 0.7Mpa Steam Gas Boiler High Efficiency


The oil gas steam boiler description


1.The inner tank adopts the international advanced three-return vertical water pipe tubular structure, the flue gas and the fin tube fully flush heat exchange, and the thermal efficiency reaches over 92%.



2. The boiler operating system is fully automatic, and all operating states can be seen at a glance in the LCD screen.You can observe the burner working status, boiler water level status, current temperature, feed pump running status, fault alarm status, etc. in the display, so that you can use it more safely.



3. Equipped with multiple interlocking protection devices such as safety valve, pressure controller and water level control protector, it is absolutely safe and reliable.



4. The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.



 Fully automatic 400kg/h gas steam boiler for industrial production

Fully automatic 400kg/h gas steam boiler for industrial production

The gas steam boiler technical parameters



oil gas steam generator technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200/2500 3 61.5
500 0.7 170℃ 20℃ 93% 29 32 1525 25 2500 1800 2500/3100 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500/3100 4.3 80
1000 0.7 170℃ 20℃ 93% 29 32 15 25 3000 2300 2500 6 153.5



400kg/h oil gas steam boiler production process:

Fully automatic 400kg/h gas steam boiler for industrial production



Fully automatic 400kg/h gas steam boiler for industrial production



Fully automatic 400kg/h gas steam boiler for industrial production



Fully automatic 400kg/h gas steam boiler for industrial production



FAQ





Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.





Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Q:How is the warranty term?

A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
