30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output

Certification
Good quality Gas Steam Boiler for sales
Good quality Gas Steam Boiler for sales
We are very satisfied the machine, it's easy to assemble and operate. advanced controlling theory with high-performance PLC, high level of automatic.

—— Smith

During the three times cooperation, all the machines are working well, hope your company getting better and better. A good beginning is half done.

—— Abdul Moiz

I'm Online Chat Now

30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output

China 30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output supplier
30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output supplier 30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output supplier 30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output supplier 30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output supplier

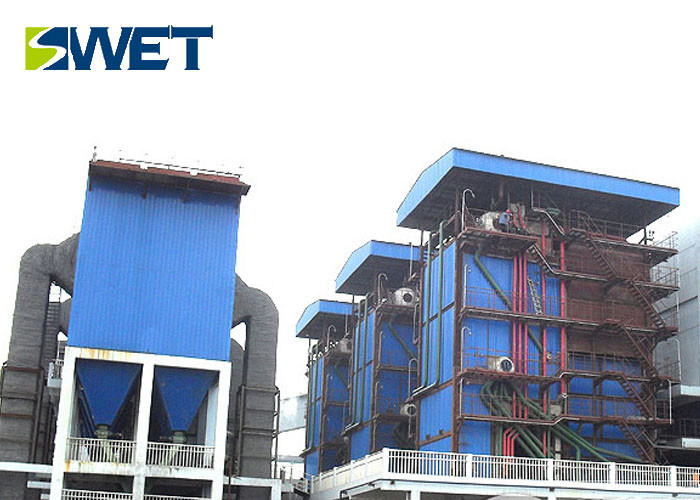

Large Image :  30t / H Circulating Fluidized Bed Boiler Coal Fired Fuel Steam Output

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: DHX30-1.6-0016

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: 1. Industrial Steam Boiler in nude package. 2. All boiler accessories in plywood or wooden case. 3.Delivery Detail :Shipped in 60 days after payment
Delivery Time: shipped in 60 after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 700 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 30t/h Work Pressure: 1.6MPa
Steam Temperature: 204℃ Feed Water Temperature: 104℃
Dimensions: 12170x9200x25500mm Thermal Efficiency: 91%

30t / h Environment Friendly Circulating Fluidized Bed Boiler Coal Fired Steam Boiler



Product description



1. Circulating fluidized bed boiler is a new efficient, low-pollution technology of clean coal boiler, the main features of the boiler furnace with a lot of material, in the combustion flue gas in a large number of materials are carried to the upper chamber, through the arrangement In the separator furnace exit, the materials and gas separation, and after non-mechanical valve will be sent back to materials will be sent to bed, repeatedly looping combustion.



2. Because high concentrations of materials and has great heat capacity and sound materials Hunhe generally carry a number of per kg of flue gas Ke kilograms of materials are Xunhuan brings high heat transfer material coefficient in the boiler heat load regulation, wide range of the fuel adaptability.



3. Circulating fluidized bed boiler higher than the bubbling fluidized bed speed, rather than the bubble column as a clear interface, due to strong turbulence and bed material circulation, increased fuel residence time in the furnace, Therefore, higher than the bubbling bed combustion efficiency, stable under low load operation, no additional auxiliary fuel.





Circular flow bed CFB boiler technical parameters



Model Rated evaporation Work pressure Steam temperature Water supply temperature Fuel consumption Thermal efficiency Dimensions
Unit t/h MPa Kg/h % mm(Long x wide x high)
DHX20-1.25 20 1.25 194 104 2475 91 12000x8160x22120
DHX20-1.6 20 1.6 204 104 2483 91 12000x8160x22120
DHX20-2.5/400 20 2.5 400 104 2934 91 12000x8160x22120
DHX25-1.25 25 1.25 154 104 3003 91 13000x8610x23170
DHX25-1.6 25 1.6 204 104 3100 91 13000x8610x23170
DHX25-2.5/400 25 2.5 400 104 3692 93 13000x8610x23170
DHX30-1.25 30 1.25 194 104 3712 93 12170x9200x25500
DHX30-1.6 30 1.6 204 104 3724 93 12170x9200x25500
DHX30-2.5/400 30 2.5 400 104 4431 93 12170x9200x25500
DHX35-1.25 35 1.25 194 104 4331 91

13800x10320x26815



FAQ



1. Q: How can you guarantee the production quality?
    A: Our production quality follow strict boiler making standard with high quality materials,and we do 3rd party boiler quality inspection.



2. Q: Can i visit your factory?
    A: Yes,many domestic and foreign customers visit our factory every year,welcome to our factory!



3. Q: Do you provide after sale service?
    A: Yes, we have a professional after-sale service team to promptly and thoroughly solve your problems.
