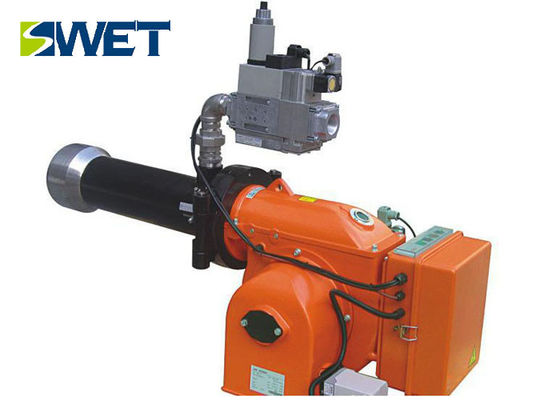

40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler

Certification
Good quality Gas Steam Boiler for sales
Good quality Gas Steam Boiler for sales
We are very satisfied the machine, it's easy to assemble and operate. advanced controlling theory with high-performance PLC, high level of automatic.

—— Smith

During the three times cooperation, all the machines are working well, hope your company getting better and better. A good beginning is half done.

—— Abdul Moiz

I'm Online Chat Now

40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler

China 40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler supplier
40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler supplier 40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler supplier 40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler supplier 40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler supplier

Large Image :  40 WKcal Diesel Oil Burner , 237-474KW Output Power Diesel Burner For Boiler

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: 180Mode

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: packed in wooden cases .
Delivery Time: Within 30 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 5000 Set/Sets Per Year
Contact Now
Detailed Product Description
Burner Model: 40 Wkcal Fuel Consumption: 20.4-40.0kg/h
Output Power: 237-474KW Output Calorific Value: 20.4-40.8Wkcak/h
Caliber: 160mm Power Supply: 220/380V
Control Method: Two Stage Of Fire Boiler Fuels: Oil,waste Oil
Color: Based On Customer's Needs Application: Boiler System

40 WKcal Environmental Protection Energy Saving Diesel Oil / Waste Burner

    It is used for small steam boilers, heating stoves, stoves, dissolved furnaces, spraying equipment, drying equipment, heat treatment equipment, etc.



 Oil burners.
1. Compatible with any type of combustion chamber.

2. High pressure mechanical atomisation of fuel using nozzle.

3. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

4. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

Technical Parameters
Burner model

Fuel consumption

(kg/h)

Output Power

(KW)

Output calorific value

(Wkcak/h)

Caliber(mm) Power supply Control method
300,000 kcal 12.0-30.0 132-345 12.6-31 130 220/380V Two stage fire
400,000 kcal 20.4-40.0 237-474 20.4-40.8 160 380V Two stage of fire
600,000 kcal 28.0-60.0 335-655 28.8-60 170

380V

Two stage of fire
1.2 million kca 60.0-120.0 712-1425 61.5-122 240 380V Two stage of fire
1.8 million kca 80.0-180.0 880-1980 85.0-190.0 240 380V Two stage of fire
2.4 million kca 110.0-250. 1210-2750 115-265 260 380V Two stage of fire
Features: Automatic control, multi-function protection, independent research and development of combustion machine, product modeling unique, methanol gas can be switched.



300,000 Kcal Environmental protection portable diesel oil burner
