Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber

Name: Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Brand: SWET
SKU: 120Mode
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (161 reviews)

Minimum Order Quantity :	1 Set/Sets	Price :	Negotiation
Packaging Details :	packed in wooden cases .	Delivery Time :	Within 30 days after payment
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement	Supply Ability :	1500 Set/Sets Per Year

Place of Origin:	Henan China	Brand Name:	SWET
Certification:	ISO9001	Model Number:	120Mode

Detail Information
Burner Model:	120Wkcal	Fuel Consumption:	60.0-120.0kg/h
Output Power:	712-1425KW	Output Calorific Value:	61.5-122Wkcak/h
Caliber:	240mm	Power Supply:	380V
Control Method:	Two Stage Of Fire	Boiler Fuels:	Light Oil,waste Oil
Color:	Based On Customer's Needs	Application:	Boiler System
High Light:	water softener machine , oil boiler burner

Product Description

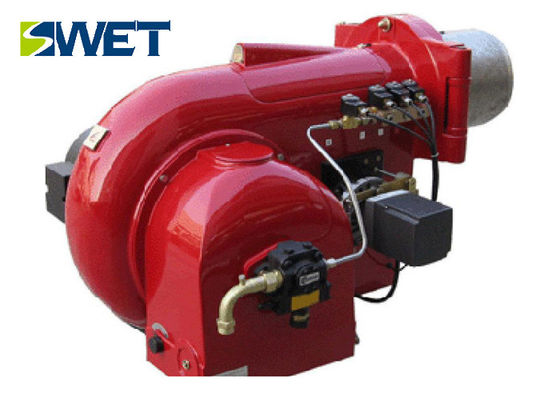

120 WKcal Environmental Protection High Efficiency Portable Light Oil Burner

Oil burners.

1. Single stage operation (on/off).

2. Compatible with any type of combustion chamber.

3. High pressure mechanical atomisation of fuel using nozzle.

4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

6. Low consumption.

7. High efficiency.

8. Cheap and durable.

1. Unique product modeling, luxurious and elegant appearance, advanced anti-burning technology, energy saving.

2. Furnace heating area layout is reasonable, water jacket, water pipes, water tank scientific combination, increase the heat absorbing surface, and strengthen heat absorption, truly energy efficient, fierce fire, warming fast, sealing a long time.

Technical Parameters
Burner model	Fuel consumption (kg/h)	Output Power (KW)	Output calorific value (Wkcak/h)	Caliber(mm)	Power supply	Control method
300,000 kcal	12.0-30.0	132-345	12.6-31	130	220/380V	Two stage fire
400,000 kcal	20.4-40.0	237-474	20.4-40.8	160	380V	Two stage of fire
600,000 kcal	28.0-60.0	335-655	28.8-60	170	380V	Two stage of fire
1.2 million kca	60.0-120.0	712-1425	61.5-122	240	380V	Two stage of fire
1.8 million kca	80.0-180.0	880-1980	85.0-190.0	240	380V	Two stage of fire
2.4 million kca	110.0-250.	1210-2750	115-265	260	380V	Two stage of fire
Features: Automatic control, multi-function protection, independent research and development of combustion machine, product modeling unique, methanol gas can be switched.

120 WKcal Environmental Protection High Efficiency Portable Light Oil Burner

Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber 2
