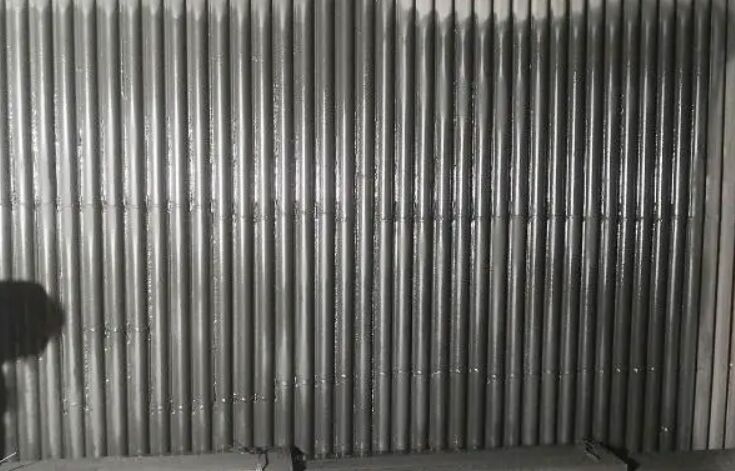

Environmental Friendly Boiler Water Wall Panels With Alloy Seamless Tubes ASTM

Min Bestellmenge :	1	Preis :	Verhandelbar
Verpackung Informationen :	Je nach Transportart werden verschiedene Verpackungsmethoden angewendet.	Lieferzeit :	30 Tage
Zahlungsbedingungen :	L/C, D/A, D/P, T/T

Herkunftsort:	China	Markenname:	Xinjie

Detailinformationen
Anwendung:	Wohnraumheizung, Gewerbeheizung, industrielle Prozesswärme	Heizleistung:	50 kW - 5 MW
Betriebsdruck:	Bis zu 3 bar	Kraftstofftyp:	Holzpellets, Hackschnitzel, landwirtschaftliche Reststoffe
Struktur:	Wasserschlauchkessel	Material:	Edelstahl-Verbrennungskammer
Verbrennungstechnik:	Automatische Zufuhr- und Verbrennungssteuerung	Rauchgastemperatur:	120°C bis 200°C
Installationstyp:	Innen- oder Außeninstallation	Auslegungsdruck:	Niederdruck 1,25 MPa, 2,0 MPa2,5 MPa
Hervorheben:	ASTM Water Wall Panel , Boiler Water Wall Panel , 50kW water wall panels

Produkt-Beschreibung

Environmental Friendly Boiler Water Wall Panels

Alloy Seamless ASTM Certified water wall panels designed for superior performance in industrial boiler applications.

Product Overview

Water cooled wall panels are constructed using high-strength alloy seamless tubes that meet strict ASTM certification standards. These panels form the inner surface of the boiler furnace, directly absorbing radiant heat from combustion. The optimized tube arrangement increases heat transfer area and ensures uniform temperature distribution, improving thermal efficiency while protecting the furnace structure from overheating.

Applications

These water wall panels are essential components in power plants, industrial steam boilers, biomass boilers, and waste heat recovery systems. They serve critical roles in coal-fired boilers, gas-fired boilers, and renewable energy systems across energy, chemical processing, metallurgy, and manufacturing industries.

Technical Specifications

Parameter	Details
Product Name	Boiler Water Cooled Wall Panel
Material	Alloy seamless steel ASTM certified
Tube Diameter	32 mm to 76 mm
Wall Thickness	4 mm to 12 mm
Operating Temperature	Up to 600°C
Pressure Rating	Suitable for high pressure boilers
Structure	Membrane type water cooled wall
Manufacturing Standard	ASTM certification
Surface Treatment	Anti-corrosion coating
Application	Industrial boilers and power plants

Key Advantages

Superior heat transfer efficiency with maximum radiant heat absorption
Improved boiler performance and reduced fuel consumption
High strength alloy seamless tubes with corrosion resistance
Extended operational life and reduced maintenance requirements
Environmental benefits through enhanced heat utilization and reduced emissions
ASTM certified materials ensuring consistent quality and reliability
Modular panel structure for easy installation and reduced downtime
Cost-effective solution for industrial applications

Global Market Presence

Our water wall panels are exported worldwide to markets including Asia, Europe, Africa, and North America. With increasing demand for high-efficiency and eco-friendly boiler components, these ASTM certified panels have become the preferred choice for global industries seeking reliable, efficient, and sustainable boiler solutions.
