Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection

China Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection supplier
Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection supplier Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection supplier Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection supplier Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection supplier

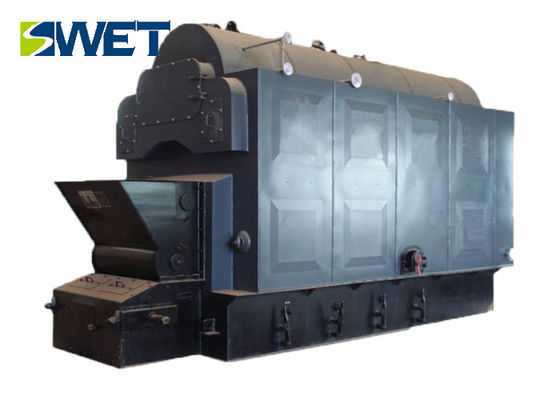

Large Image :  Reliable 20T Chain Grate Steam Boiler High Efficient Environmental Protection

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL20-1.6-T-0013

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 20t/h Working Pressure: 1.6MPa
Return Water Temperature: 104℃ Keywords: Chain Grate Steam Boiler
Steam Temperature: 204℃ Exhaust Temperature: 155℃
Combustion Mode: Suspension Combustion + Layer Combustion Thermal Efficiency: 83%

20T Environmental Protection Chain Grate Steam Boiler Double Drum Biomass Power Station Boiler



Product Description



1. Product Features Double-drum longitudinal placement of biomass water boiler, the use of chain grate for combustion equipment.



2. The biomass particles (briquettes) are transported (lifted) by the loading machine to the furnace before the hopper falls into the screw feeding mechanism and falls onto the grate, and enters the hearth through the grate drum to configure the secondary air for combustion, Furnace full combustion, high temperature flue gas from the furnace through the combustion chamber into the flue, into the economizer flue, dust collector, and then by the draft fan through the chimney into the atmosphere.



3. Leakage with the chain falls into the grate ash door grate, the rest separated by dust collector into the ash bucket, burning, the air from the blower into the total air duct through the bottom of the air chamber into the grate on both sides Air duct, and then adjusted by their fan-shaped damper into the air chamber, through the grate surface of the biomass fuel layer into the furnace.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800



Advantage



1. The series of boilers learned the advantages of fast loading boilers, easy installation site, the boiler structure is compact,Small footprint, elegant appearance.



2. Equipped with electric control console, grate stepless speed regulation can run.



3. Air supply system uses warehouse-style double-side air supply device, each plenum can be independently adjusted, less leakage, adjustable, and can better meet the requirements of the chain grate combustion characteristics.
