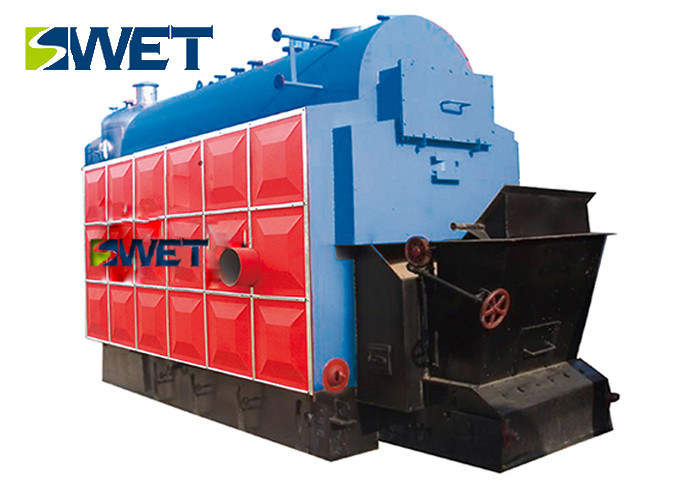

Chemical Plants Biomass Pellet Boiler , High Efficiency Industrial Biomass Boiler

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs. Delivery Time : 25-35 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1500 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: SZL25-2.5-T-0032

Detail Information

Rated Evaporation: 25t/h Working Pressure: 2.5MPa
Return Water Temperature: 104℃ Keywords: Chain Grate Boiler
Steam Temperature: 224℃ Exhaust Temperature: 160℃
Application: Chemical Plants Thermal Efficiency: 85%
High Light:

coal fired boiler

,

biomass pellet boiler

Product Description

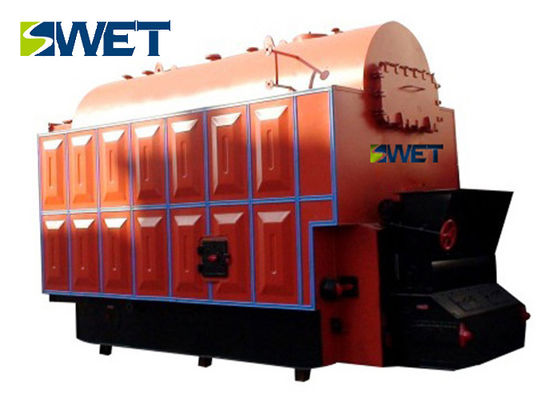

SZL Series Low Pressure 25t Biomass Fuel Pellet Fired Chain Grate Boiler For Chemical Plants



Product Description



1. SZL series biomass chain grate boilers with high efficiency, strong overload capacity and various fuel adaptability (biomass pallet or coal), are well known as the best design among contemporary domestic similar products and have reached the world's advanced level.



2. The boiler is mainly composed of upper and lower drums, convection tubes, water-cooling wall tubes, down pipes and headers. The upper and lower drums are arranged longitudinally and with belt type chain grate as its combustion equipment and non-polar speed-changing device drivers.The boiler proper is composed of upper and lower longitudinal drums and convection tubes.



Features



1. By adopting the water-cooling system in packaged boilers which is usually used in power plant boilers, the boiler can achieve large heat transfer area, high heat transfer efficiency, low heat loss, good air tightness, and no distortion or dust leakage of the brickwork.



2. The front and back water-cooling wall tubes stretch themselves to the upper side of the chain grate, which increases the heating surface and overload capacity. The frames of the front and the rear arch are made of water-cooling tube wall, together with high alumina cement, which can avoid the defects of the cracking and collapsing of the arch and extend its lifespan.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800
