Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency

China Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency supplier
Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency supplier Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency supplier Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency supplier Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency supplier

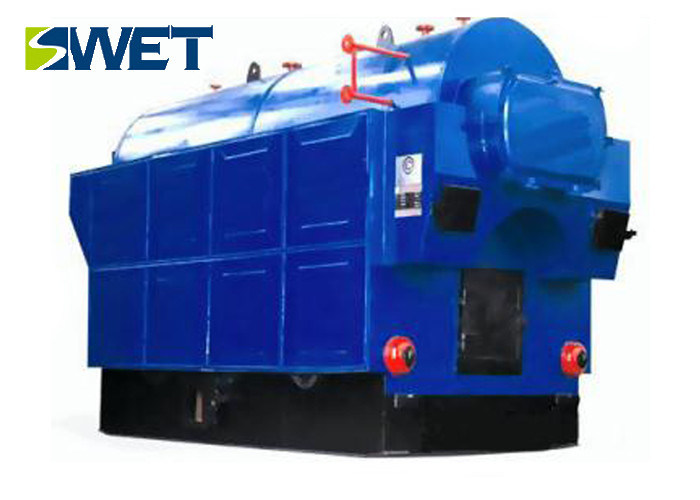

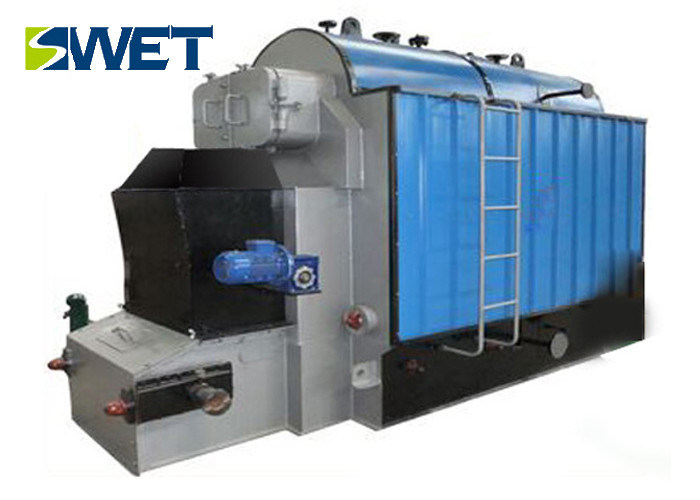

Large Image :  Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL25-2.5-T-0035

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 25t/h Working Pressure: 2.5MPa
Return Water Temperature: 104℃ Keywords: Chain Grate Boilers
Steam Temperature: 224℃ Exhaust Temperature: 160℃
Types: Vertical Type Thermal Efficiency: 85%
Fuel: Coal-fired,wood Pellet,wood Chip,biomass Pellet Application: Industrial Production,wood Industry,Textile Mill

Rational Construction 25 ton Biomass Coal Steam Chain Grate Boilers



Product Description



1. The boiler adopts the structure of double drum vertical type chain grate, compact structure,beautiful appearance. Assembly delivery,construction the front and rear arch onsite. The advantage of this structure is that the boiler room occupies a small area, the installation period is short, and the project investment is low.



2. Small ventilation resistance to ensure full combustion of the fuel, larger grate ventilation load surface ratio design, and coal slag realizes mechanization.



3. Optimized arch is used, extending the journey of high temperature flue gas in the furnace, and then return to the new high temperature flue gas coal, to improve it’s temperature, so that the new coal will catch fire in a short period of time. Because of the long residence time of high temperature flue gas in the furnace, the disturbance of the flue gas is enhanced, and the combustion conditions in the furnace are enhanced.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800



Product Advantages



1. Coal into a hydraulic push, manual, chain drive three.



2. Beautiful appearance.



3. Simple operation.



4. Energy-saving.

Rational Construction Chain Grate Coal Fired Steam Boiler Vertical Type High Efficiency
