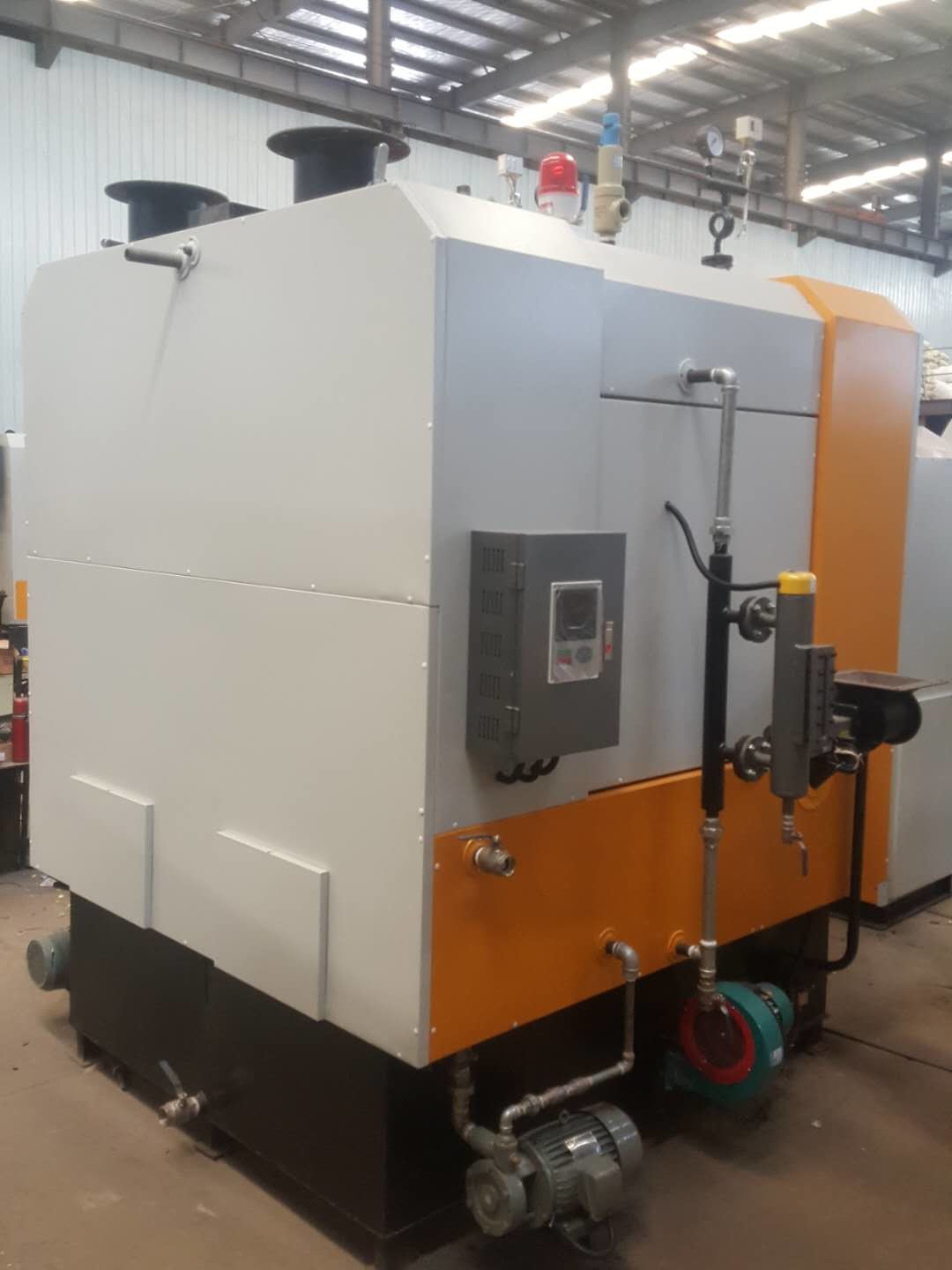

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The steam boiler is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | YDZ1.5-0.7-S |
|
Detail Information |
|||
| Rated Evaporation: | 1500kg/h | Style: | Horizontal,Vertical,horizontal And Vertical |
|---|---|---|---|
| Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
| Thermal Efficiency: | 93% | Color: | Customer's Requirement |
| Design Fuel: | Biomass | Warranty: | 12months |
| Usage: | Industrial | Type: | Natural Circulation,Once Through /Auxiliary Cycle |
| Fuel: | Oil,Gas,Oil/Gas-fired | Condition: | New |
| Output: | Steam | Pressure: | Low Pressure,High Pressure |
| Structure: | Fire Tube,Water Tube | Application: | Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory |
| Steam Temperature: | 170-204℃,194 ℃,≤194℃ | Name: | Industry Fire Tube Boiler,Electric Industrial Boiler,gas Heating Boilers,Electric Steam Boiler |
| High Light: | oil steam boiler,natural gas steam boiler |
||
Product Description
1. The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.
2. The burner releases heat, which is first absorbed by the water wall by radiative heat transfer. The water of the water wall boils and vaporizes, and a large amount of steam enters the steam drum for steam and water separation. The separated saturated steam enters the superheater and continues to absorb by convection. The flue gas heat at the top of the furnace and the horizontal flue, the tail flue, and the superheated steam reaches the required operating temperature.
| Rated evaporation | 1500kg/h |
| Generator product model | YDZ1.5-0.7-S |
| Rated pressure(Mpa) | 0.7 |
| Rated steam temperature(℃) | 171 |
| Water capacity(L) | ≤30 |
| Thermal efficiency | 90% |
| Fuel consumption(kg/h) | 240 |
| Dimensions (length*width*height)mm | 2300*3200*2500 |
Application field description:
1.For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
our engineering case:
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
