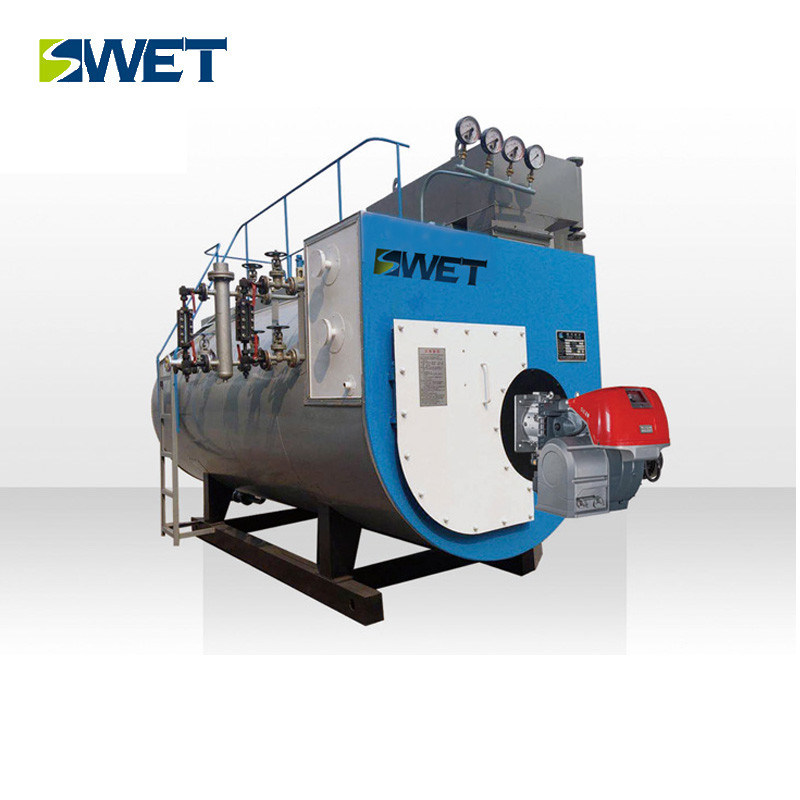

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
|
Product Details:
|
|
| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SWET |
| Certification: | ISO9001 |
| Model Number: | WNS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | Negotiation |
| Packaging Details: | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement |
| Supply Ability: | 1500 Set/Sets Per Year |
|
Detail Information |
|||
| Rated Evaporation: | 2t / H | Rated Working Pressure: | 1.25/1.6 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 194/204 ℃ | Feed Water Temperature: | 20 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS |
| Testing Efficiency: | 96.48 % | Color: | Customer Requirements |
| High Light: | industrial gas boiler,oil fired steam boiler |
||
Product Description
Our product advantages and features:
(1)This kind of burning gasoline boiler uses new type fireproof material, no preload, high thermal efficiency, stable air pressure, steam can produce high quality products in a short time.
(2)When burning, the noise is low, pollution-free, flue gas is burned completely, which can save fuel cost and improve economic efficiency.
(3)This is an environment-friendly and energy-saving product.
(4)It has perfect automatic control device and safety protection device, high and low water level alarm and low water level chain protection function.
(5)Automatic ignition of boiler, automatic adjustment of burner firepower and flameout protection to ensure safe operation of boiler.
(6)In the overall structure, the lower furnace is used, and the smoke tube and the furnace are arranged symmetrically in the left and right. The corrugated furnace increases the heat transfer area, increases the rigidity of the furnace, and satisfies the free expansion of the furnace after being heated.
| WNS series automatic gas (oil) steam energy saving boiler product selection form | |||||||
| Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Gas consumption | Outline dimension |
| Unit | t/h | Mpa | ℃ | ℃ | % | Nm³/h | mm(L*W*H) |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 97.62 | 1407.5 | 8660*3520*4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1459 | 8870*3550*3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/197/204 | 105 | 97.2 | 1126 | 7450*3520*4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 837.25 | 6370*2812*3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 96.7 | 659.25 | 6000*2920*3403 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 433.51 | 5470*2770*3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 96.48 | 409.33 | 5160*2410*3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 334.23 | 4880*2710*2600 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 245.12 | 4762*2447*2469 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 163.72 | 4030*2010*2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
Important production process of the product
(1) The boiler is composed of a tube sheet manufacturing process, a barrel manufacturing process, a manhole device manufacturing process, a drum manufacturing process, and a boiler assembly process.
(2) After the components of the boiler are assembled, they are packaged or sent directly to the user.
Company Introduction
The size of the:The factory covers an area of 130,000 square meters, including a construction area of 160,000 square meters.
The quality assurance:The company has established a complete quality assurance system and has passed ISO9001 international quality management system certification.
The main products:High-efficiency low-emission energy-saving circulating fluidized bed boilers, low-emission energy-saving gas boilers, various grate industrial boilers, smelting industry and waste heat boilers in hazardous waste industries.
Honor obtained by the company
1.Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
2.China 's top ten boiler manufacturing enterprises.
3.Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
4.North China Water Conservancy and Hydropower University teaching and research base
5. The China’s first circular flow bed (CFB)boiler manufacture and so on.
application
(1) The steam boiler for food industry and wood processing.
(2) The steam boiler for asphalt plant and brewery.
(3) The steam boiler for printing mill and garment industry.
(4) The steam boiler for hospital and school
(5) The steam boiler hotel and paper industry.
(6) The steam boiler steel industry and rice mill.
Product packaging
(1) Industrial steam boiler package.
(2) In all boiler attachments or plywood wooden boxes.
(3) Packing specification: customer requirements.
(4) Bulk, wooden boxes, crate.
1. Technical services
According to the user's technical requirements, at any time to design units
user units to provide technical services.Provide detailed design and installation
of technical parameters for the user unit.Providing technical services in the
installation engineering for the user units and providing on-site technical support.
After installation, the boiler host can be debugged free of charge.The company is
free to send experts to the boiler for the use of units of fireman on-site technical
training, training content including operation, maintenance, maintenance.
2. Pquality assurance
The design and manufacture of the products are strictly carried out in accordance
with the "GB" standard and the factory quality assurance system of China, and are
strictly monitored according to the national standards of China.
Provide the quality guarantee issued by the competent department to the use unit.
After the product is put into operation, it can guarantee the user to achieve the required
output and stable and reliable operation.
Q: What is our Qualification?
A: We are a Class-A Boiler Manufacturer, with 30 years' experience in the field of boilers and pressure vessels.
Q: What is our Product Range?
A: We specialized in Hot Water Boiler, Steam Boiler, Thermal Oil Boiler, Autoclave, Pressure Tanks, Wood Treatment Plant, Hot Air Generator, etc.
Q: What is our Warranty Period?
A: The Warranty Period is one year with lifelong service.
Q:How is our industry brand?
A:Boiler design, manufacturing, transportation, installation, service integration.
Q: how do you choose the type of boiler?
A: type (steam or hot water), capacity, pressure and fuel (coal, biomass, natural gas or oil) need to be confirmed.
Q: what is the service life of the boiler
A: the service life of the Boiler is at least 10 years, but in good condition, the Boiler can be used for at least 15 years.
Q: how do you choose the boiler model?
A: identify the type of Boiler, steam or hot water), capacity, working pressure (or output temperature) and fuel (coal, biomass, gas or oil or other fuel), Swet Boiler will be according to your usage suggest suitable model.
Q: how about the warranty period?
A: if there is any quality problem during the warranty period, the seller will repair or replace the damaged parts free of charge. If the customer has any problem, the seller will provide the spare parts at the lowest cost.
