Vertical Biomass 500kg/Hr Steam Generator Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | HENAN CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | LSS-7002 |
|
Detail Information |
|||
| Rated Evaporation: | 400kg | Steam Pressure: | 0.7Mpa |
|---|---|---|---|
| Rated Steam Temperature: | 170℃ | Thermal Efficiency: | 93% |
| Color: | Customer's Requirement | Design Fuel: | Biomass |
| Warranty: | 12 Months | Weight: | 1200kg |
| Dimension: | 2150x1000x2400mm | Material: | Boiler Steel |
| High Light: | industrial biomass boiler,oil fired steam boiler |
||
Product Description
The biomass steam boiler description
1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.
2. The steam generator furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth.complete combustion and no visible smoke emissions. fully meeting the national emission requirements on the boiler.
3. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.
The biomass steam boiler technical parameters
| Biomass steam generator technical | |||||||||||||
| Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 26.5 | 15 | 15 | 20 | 1600 | 900 | 1750 | 0.6 | 13.6 |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 26.8 | 15 | 15 | 20 | 1600 | 900 | 1900 | 0.65 | 16.4 |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 1650 | 900 | 1900 | 0.7 | 24.6 |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27 | 20 | 15 | 25 | 2150 | 1000 | 2400 | 1.2 | 32.8 |
| 300 | 0.7 | 170℃ | 20℃ | 93% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 46.1 |
| 400 | 0.7 | 170℃ | 20℃ | 93% | 28.7 | 32 | 15 | 25 | 2350 | 1750 | 2200/2500 | 3 | 61.5 |
| 500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 1525 | 25 | 2500 | 1800 | 2500/3100 | 4.1 | 76.8 |
| 600 | 0.7 | 170℃ | 20℃ | 93% | 29.5 | 32 | 15 | 25 | 2500 | 1800 | 2500/3100 | 4.3 | 80 |
| 1000 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |

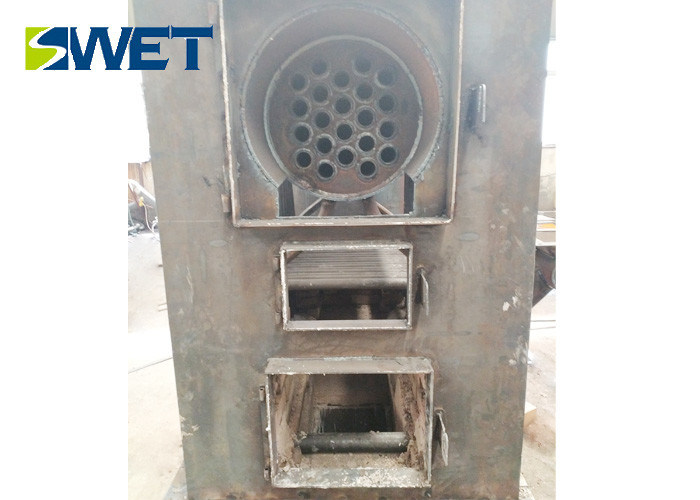

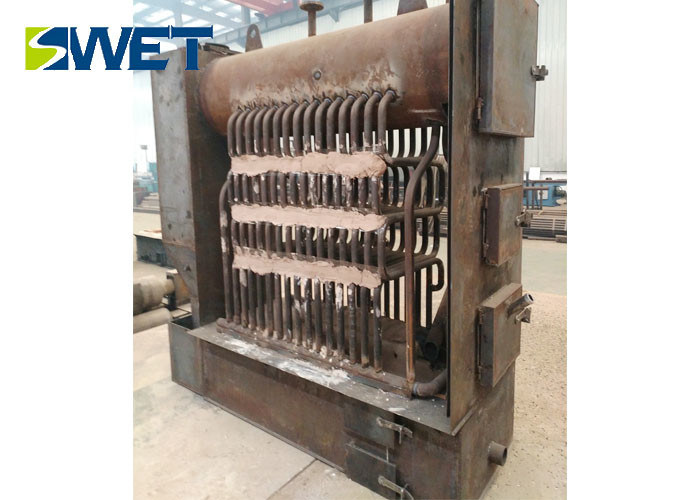

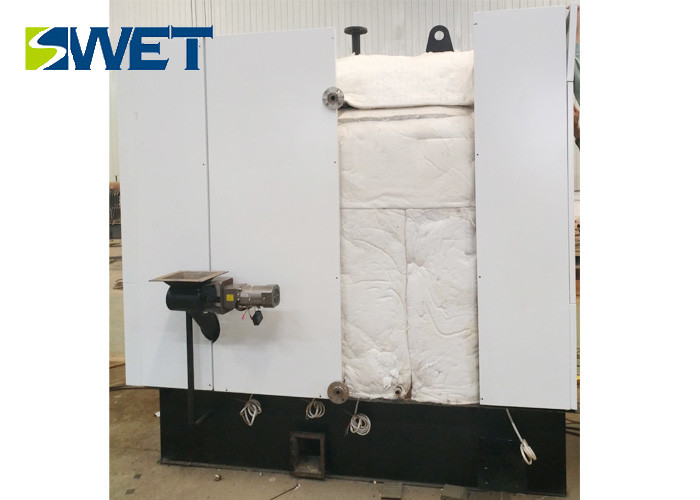

400kg biomass steam boiler production process:
