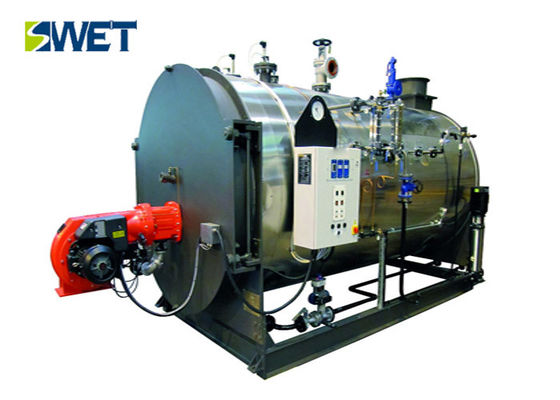

Gas Fired Industrial Steam Boiler 95.57 % High Thermal Efficiency

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements Delivery Time : 25-30 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1500 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: QXS(SZS)5.6-1.25-Y,Q-3020

Detail Information

Leaving Water Temperature: 95(115)(130) ℃ Efficiency: 95.57 %
Model: QXS(SZS)5.6-1.25-Y,Q-3020 Keywords: Hot Water Boiler
Rated Thermal Power: 5.6 MW Nominal Working Pressure: 0.7(1.0)(1.25) MPa
Gas Consumption: 619.2 Nm³/h Color: Customer Requirements
Highlight:

oil steam boiler

,

natural gas steam boiler

Product Description

High Thermal Efficiency Gas fired industrial boiler With Full Automatic


Product description

1. The series of dual-drum longitudinal type three-way micro-positive pressure combustion bulk water tube boiler, D-type layout



2. supporting one or two imported automatic fuel gas burners and advanced PLC computer control system



3. The fuel gas boiler is composed of upper and lower drums, membrane water wall, convection tube bundle and economizer and condenser.


Product advantages

1. Hot water boiler feed water with continuous automatic adjustment, and with high and low water level alarm protection chain.



2. Hot water boiler imported burner, high combustion efficiency with ignition control and over-voltage flameout protection



3. Hot water boiler has a wealth of heated surface and large enough space to ensure the stability of boiler parameters.



FAQ



1. Q: Why should you believe our quality?
A:1.Sixty years of boiler manufacturing enterprise culture, boiler performance is good.



2. The birthplace of China's first circulating fluidized bed boiler, advanced technology and products have been extended so far.


3. More than 2000 environmental protection industrial boilers have been sold at home and abroad, performance, quality and stability.


4. Q: What is the Warranty for the boilers?
A: Based on highly responsible for your esteemed company, due to equipment itself failure, our company provides 12 months since the date of shipment free maintenance



5. Q:How to choose a boiler model?
A: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage





High Thermal Efficiency Gas Hot Water Boiler With Full AutomaticHigh Thermal Efficiency Gas Hot Water Boiler With Full Automatic



Product parameters



SZS water pipe type full automatic gas-fired hot water energy-saving boiler

Model

Rated thermal power

nominal working pressure

Leaving Water Temperature

return water temperature

efficiency

gas consumption

Overall dimensions of transportation

Unit

MW

MPa

%

Nm³/h

mm

QXS(SZS)48

48

1.25(1.6)(2.5)

130(150)

70(90)

98.09

5048

15600*9500*7920

QXS(SZS)29

29

1.25(1.6)

130(150)

70(90)

97.8

3150

9685*6870*7180

QXS(SZS)21

21

1.0(1.25)(1.6)

115(130)(150)

70(90)

97.13

2328

10130*6170*6134

QXS(SZS)14

14

1.0(1.25)(1.6)

115(130)(150)

70(90)

97.02

1558

8120*3385*3750

QXS(SZS)10.5

10.5

1.0(1.25)(1.6)

115(130)(150)

70(90)

97

1136

7250*3682*3820

QXS(SZS)7

7

0.7(1.0)(1.25)

95(115)(130)

70(90)

96.87

754

6770*3210*3775

QXS(SZS)7

7

1.25

115

70(90)

95.76

763

6760*2780*3299

QXS(SZS)5.6

5.6

0.7(1.0)(1.25)

95(115)(130)

70(90)

95.57

619.2

6450*2956*3620

QXS(SZS)4.2

4.2

0.7(1.0)(1.25)

95(115)(130)

70(90)

95.36

456.7

5700*3105*3410

Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

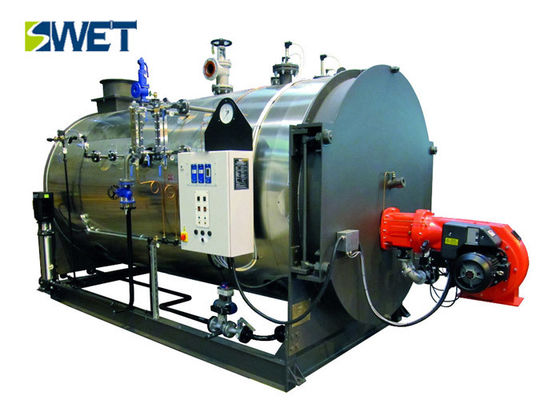

Gas Fired Industrial Steam Boiler 95.57 % High Thermal Efficiency 2
