|Preset Pressure:||0.7mpa||Rated Steam Temperature:||170℃|
|Thermal Efficiency:||87%||Color:||Customer's Requirement|
|Usage:||Industrial,Steam Outputing||Type:||Natural Circulation,Once Through /Auxiliary Cycle|
|Fuel:||Oil,Gas,Oil/Gas-fired||Style:||Horizontal,Vertical,horizontal And Vertical|
|Pressure:||Low Pressure,High Pressure||Structure:||Fire Tube,Water Tube|
|Application:||Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory||Name:||Industry Fire Tube Boiler,gas Heating Boilers,Electric Steam Boiler|

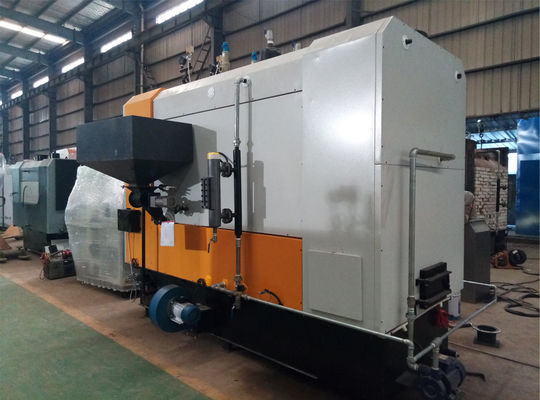

Good quality 200kg industrial wood pellet steam boiler for pharmaceutical industry
1. In the design structure, compared with the traditional boiler furnace space, and the very reasonable secondary air arrangement, it is beneficial to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.
2.The boiler safety is equipped with multi-level interlock protection: pressure switch protection (automatic shutdown and alarm above set pressure), low water level protection (water level in boiler body is lower than warning water level, automatic power off and alarm), safety valve protection (boiler) The pressure exceeds the working pressure, and the air pressure is automatically reduced.) Ensure that the boiler is safe under all working conditions and safe to get home.
|Fuel Cost analysis(Take 100 kg per hour as an example)|
|Equipment selection||Steam volume||Energy consumption||Unit Price||Operating costs|
|Electrothermal steam boiler||100kg||72 kw/h||0.08 USD/kw||10.91 USD|
|Fuel steam boiler||100kg||7 kg/h||0.53 USD/kg||7.42 USD|
|Gas steam boiler||100kg||8 m³/h natural gas||0.34 USD/m³||5.45 USD|
|Biomass steam boiler||100kg||20 kg/h wood pellet||0.08 USD/kg||3.03 USD|
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
