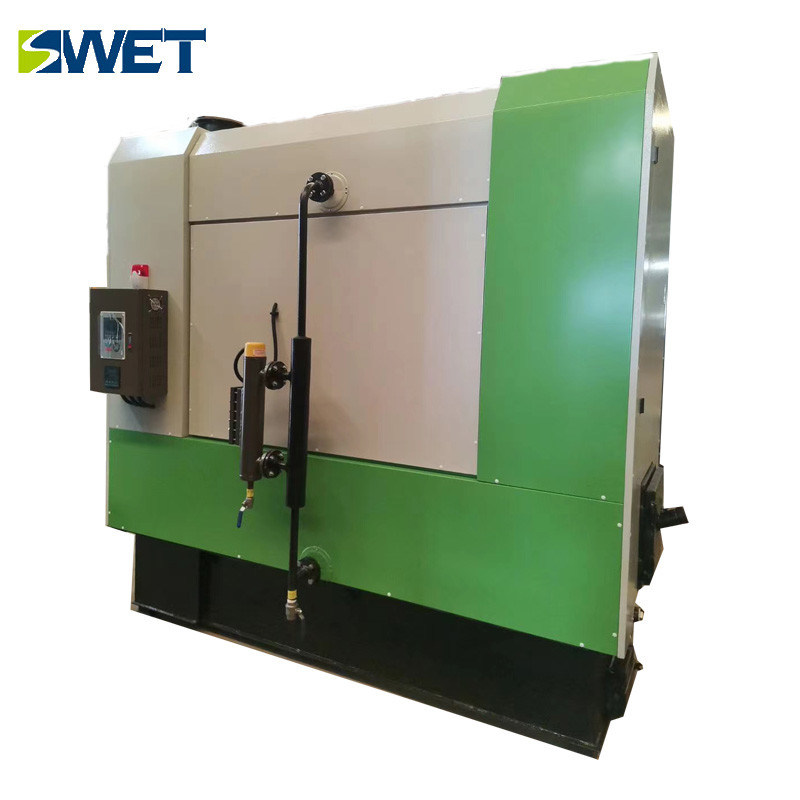

|Product Name:||Fully Automatic 150kg Industrial Heating Gas-fired Steam Boiler||Item:||YDZ- Biomass Steam Boiler|
|Design Fuel:||Biomass||Color:||Customer's Requirement|
|Warranty:||12 Months||Thermal Efficiency:||Over 92%|
|The Biggest Fuel Consumption(Nm3/h):||70||Rated Evaporation (kg/h):||500kg|
|Rated Steam Temperature(℃):||170||Rated Steam Pressure(Mpa):||0.7|
1. The inner tank adopts the international advanced three-return vertical water pipe tubular structure, the flue gas and the fin tube fully flush heat exchange, and the thermal efficiency reaches over 92%.
2. The boiler operating system is fully automatic, and all operating states can be seen at a glance in the LCD screen. You can observe the burner working status, boiler water level status, current temperature, feed pump running status, fault alarm status, etc. in the display, so that you can use it more safely.
3. Equipped with multiple interlocking protection devices such as safety valve, pressure controller, water level control protector, absolutely safe and reliable.
4. The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.
1. Compact structure, small footprint, beautiful appearance, small investment in land engineering
2. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes, high working efficiency and wide application.
3. Energy-saving, scientific design, high thermal energy, more than 50% energy saving than traditional boilers;
4. Safety, the product is over temperature, ignition, water cut, gas cut, all controlled by microcomputer, very safe
Working principle of 150kg industrial heating gas-fired steam boiler:
1.The burner releases heat, which is first absorbed by the water wall by radiative heat transfer. The water of the water wall boils and vaporizes, and a large amount of steam enters the steam drum for steam and water separation.
2.The separated saturated steam enters the superheater and continues to absorb by convection. The flue gas heat at the top of the furnace and the horizontal flue, the tail flue, and the superheated steam reaches the required operating temperature.
|Fuel Cost analysis(Take 100 kg per hour as an example)|
|Equipment selection||Steam volume||Energy consumption||Unit Price||Operating costs|
|Electrothermal steam boiler||100kg||72 kw/h||0.08 USD/kw||10.91 USD|
|Fuel steam boiler||100kg||7 kg/h||0.53 USD/kg||7.42 USD|
|Gas steam boiler||100kg||8 m³/h natural gas||0.34 USD/m³||5.45 USD|
|Biomass steam boiler||100kg||20 kg/h wood pellet||0.08 USD/kg||3.03 USD|
150kg industrial heating gas-fired steam boiler technical
|Rated evaporation||Rated pressure||
Rated steam tempe
Feed water temper
|Design thermal efficiency||Water capacity||Steam outlet||water intake||Drain valve||Dimensions||Shipping weight||Full load biomass consumption|
The 150kg industrial heating gas-fired steam boiler application area:
Application field description:
1.For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
3.For biological equipment industry: sterilizer, school laboratory, thermal test
our engineering case:
1.Henan Swet Boiler Co., Ltd. is located in the historical city, Kaifeng, the ancient capital of the seven dynasties. The company was founded in 1954, and the company has strong technical force. The factory has more than 1,100 employees, including 217 engineers and technicians and 12 senior engineers.
2. The company has established a complete consulting service system, design, manufacture and installation of one-stop service, comprehensive pre-sale, sale, after-sales service, so that products and services follow. Henan Swet Boiler Co., Ltd. will provide users with all-round services with high-tech technology, high-quality products and reasonable.
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
My company has to cover the country and the radiation overseas areas of mature sales network, and has a group of professional quality of the sales staff, according to customer requirements, to develop the most in line with the user's actual solution.
Pre-sale technical guidance, including the host, auxiliary equipment selection and layout. Provide a full set of installation services, such as self-installation, can provide on-site technical guidance, including furnace wall masonry, cooking, commissioning and so on.
After the sale of professional and technical personnel to train the customer burner, until its complete grasp, independent operation. Usually 24 hours to accept telephone consultation, timely service.
