Small scale horizontal 300kg steam boiler for textile industry

China Small scale horizontal 300kg steam boiler for textile industry supplier
Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier Small scale horizontal 300kg steam boiler for textile industry supplier

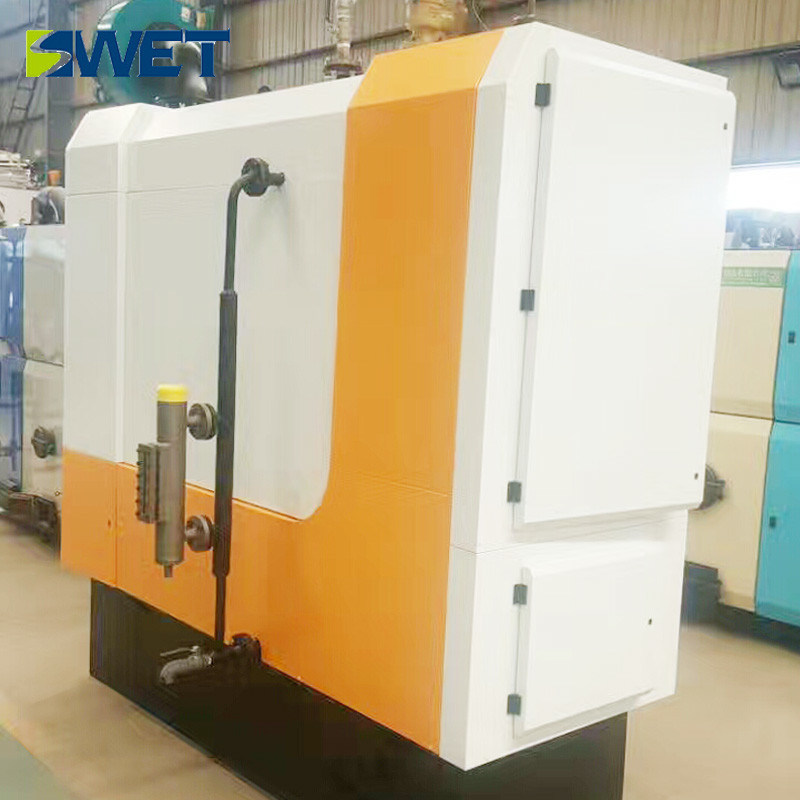

Large Image :  Small scale horizontal 300kg steam boiler for textile industry

Product Details:

Place of Origin: HENAN,CHINA
Brand Name: SWET
Certification: ISO9001
Model Number: LSS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: The300kg steam boiler bady with plywood packaging.
Delivery Time: 10 WORKING DAY
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 SETS PER YEAR
Contact Now
Detailed Product Description
Product Name: Small Scale Horizontal 300kg Steam Boiler For Textile Industry Item: YDZ-gas Steam Boiler
Design Fuel: Gas/oil Color: Customer's Requirement
Warranty: 12 Months Thermal Efficiency: Over 92%
The Biggest Fuel Consumption(Nm3/h): 46.9 Rated Evaporation (kg/h): 300kg
Rated Steam Temperature(℃): 170 Rated Steam Pressure(Mpa): 0.7
Size: 1700x1600x2300mm Weight: 1300kg
Burner: Italy Riello

Small scale horizontal 300kg steam boiler for textile industry

Product Description

1. The inner tank adopts the international advanced three-return vertical water pipe tubular structure, the flue gas and the fin tube fully flush heat exchange, and the thermal efficiency reaches over 92%.


2. The boiler operating system is fully automatic, and all operating states can be seen at a glance in the LCD screen. You can observe the burner working status, boiler water level status, current temperature, feed pump running status, fault alarm status, etc. in the display, so that you can use it more safely.


3. Equipped with multiple interlocking protection devices such as safety valve, pressure controller and water level control protector, it is absolutely safe and reliable.


4. The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.

Small scale horizontal 500kg steam boiler for textile industry





Small scale horizontal 500kg steam boiler for textile industry



Horizontal 500kg steam boiler steam boiler core advantages:

1. Compact structure, small footprint, beautiful appearance, small investment in land engineering.
2. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes, high working efficiency and wide application.
3. Energy-saving, scientific design, high thermal energy, more than 50% energy saving than traditional boilers;
4. Safety, the product is over temperature, ignition, water cut, gas cut, all controlled by microcomputer, very safe.

The horizontal 500kg steam boiler production process:

Small scale horizontal 500kg steam boiler for textile industry



The horizontal 500kg steam boiler application area:Small scale horizontal 500kg steam boiler for textile industry



Appliction field description:

1. For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.



2.For chemical industry: activated carbon heating and disinfection, high temperature plating.



3.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.





and so on...



our engineering case:Small scale horizontal 500kg steam boiler for textile industry

Horizontal 500kg steam boiler cost analysis:

Fuel Cost analysis(take 100kg per hour as an example)
Equipment selection Steam volume Energy consumption Unit Price Operating costs
Electrothermal steam boiler 100kg 72 kw/h 0.08 USD/kw 10.91 USD
Fuel steam boiler 100kg 7 kg/h 0.53 USD/kg 7.42 USD
Gas steam boiler 100kg 8 m³/h natural gas 0.34 USD/m³ 5.45 USD
Biomass steam generator 100kg 20 kg/h wood pellet 0.08 USD/kg 3.03 USD
Small scale horizontal 300kg steam boiler for textile industry
product parameters



Horizontal 500kg steam boiler technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
300 0.7 170℃ 20℃ 87% 28 25 15 25 2000 1400 2700 1.35 49.3
500 0.7 170℃ 20℃ 93% 29 32 15 25 2500 1800 2500 4.1 76.8
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

Small scale horizontal 300kg steam boiler for textile industry

Related Products

Small scale horizontal 300kg steam boiler for textile industry






Small scale horizontal 300kg steam boiler for textile industrySmall scale horizontal 300kg steam boiler for textile industry

Customer Access



Small scale horizontal 300kg steam boiler for textile industry















Packaging & Shipping





Small scale horizontal 300kg steam boiler for textile industry



FAQ



Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.





Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Q:How is the warranty term?

A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.

Sales and Service



Pre-sale technical guidance, including the host, auxiliary equipment selection and layout. Provide a full set of installation services, such as self-installation, can provide on-site technical guidance, including furnace wall masonry, cooking, commissioning and so on.

After the sale of professional and technical personnel to train the customer burner, until its complete grasp, independent operation. Usually 24 hours to accept telephone consultation, timely service.
