2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator

China 2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator supplier
2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator supplier 2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator supplier 2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator supplier 2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator supplier

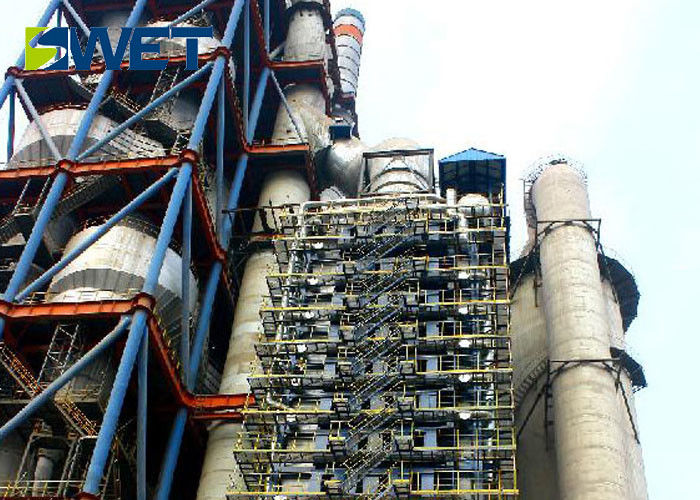

Large Image :  2.5MPa Sintering Cooler Heat Recovery Boiler , Waste Heat Recovery Steam Generator

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: Q29/800-10-2.5-0010

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Standard Packaging
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash or on the basis of mutual agreement
Supply Ability: 200 Set/Sets Per Year
Contact Now
Detailed Product Description
Flue Gas Volume: 29000m³/h Flue Gas Temperature: 800℃
Evaporation: 10T/H Steam Pressure: 2.5MPa
Steam Temperature: Saturated Vapor Fuel: Waste Heat



2.5MPa Sintering Cooler Waste Heat Boiler Waste Heat Recovery Boiler



Product Description



1. Condensing waste heat recovery boiler is a structure different from ordinary steam boilers, an additional condensing heat exchanger and air preheater. The burner uses a split burner and uses air preheater to heat the combustion air.



2. Steam vapor pressure with automatic regulation, automatic ignition, and water, over-pressure, flameout protection.



3. The use of stainless steel finned tube heat exchanger, enhanced heat transfer. Vacuum heat pipe air preheater and so on. Optional high quality imported low NOx burner, full combustion, are environmentally friendly products.



Note



1. In the process of boiling furnace pay attention to the expansion of various parts of the furnace, the water level remained normal.



2. In the replenishment, water softener application process, and slowly.



3. Every 3 ~ 4 hours, sampling and analysis of water alkalinity and chloride root, if it has become normal, then the end of the furnace.



Waste Heat Boiler

Technical Parameters



Model

Flue gas volume

Flue gas temperature

Evaporation

Steam pressure

Steam temperature

Unit

m³/h

t/h

MPa

Q19/1100-6-1.25

19000

1100

6

1.25

Saturated Vapor

Q29/800-10-2.5

29000

800

10

2.5

Saturated Vapor

QZ9/1150-4-0.4

9000

1150

4

0.4

Saturated Vapor

Q15-420-8-2.4/350

15000

420

8

2.4

350

Q16-740-5-3.82/440

16000

740

5

3.82

440

Q120/900-82-3.82/450

120000

900

82

3.82

450

QC28/720-9-1.0

12000

720

9

1.0

Saturated Vapor

QC18/1200-4-1.25/220

18000

1200

4

1.25

220
