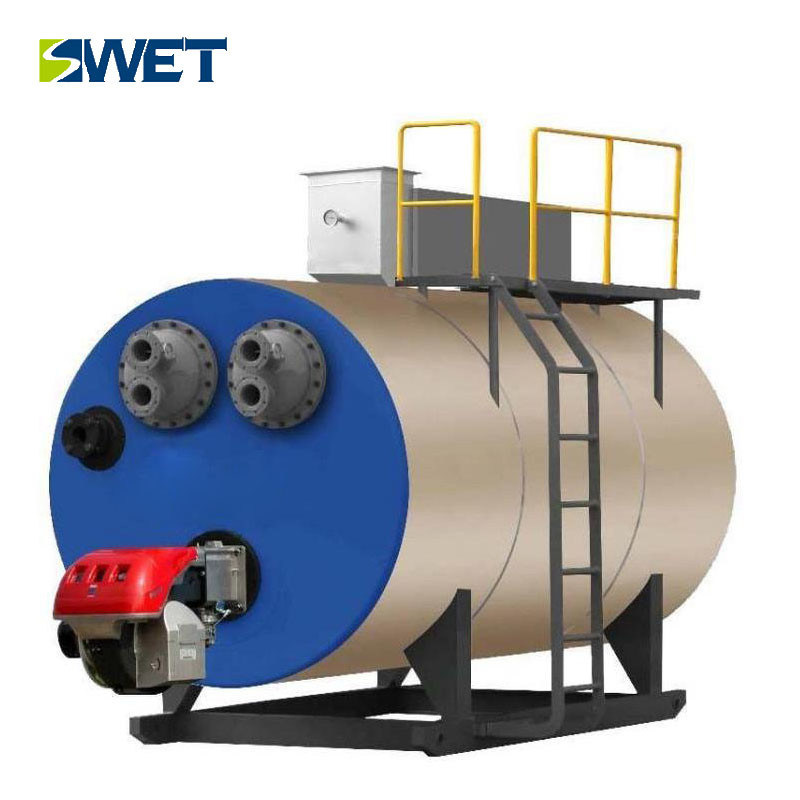

Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure

China Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure supplier
Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure supplier Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure supplier Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure supplier Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure supplier

Large Image :  Fully automatic 6t/h oil gas fired steam boiler 1.25 / 1.6Mpa Working Pressure

Product Details:

Place of Origin: Henan,China
Brand Name: SWET
Certification: ISO9001
Model Number: WNG-0.8/0.6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wood care plus tarpaulin packaging
Delivery Time: 25-30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Set Per Year
Contact Now
Detailed Product Description
Rated Capacity: 6t/h Working Pressure: 1.25/1.6Mpa
Steam Temperature: 194/204℃ Feed Temperature: 20℃
Testing Efficiency: 96.58% Diesel Consumption: 379.32kg/h
Gas Consumption: 433.51Nm3 Outline Dimension: 5470*2770*3195mm

Fully automatic 6t/h oil gas fired steam boiler for Food Industry



Product Description



  1.The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.



Advantage



1 Boiler with light oil and natural gas as design fuel can also burn city gas or liquefied petroleum gas with wide adaptability, high efficiency and low energy consumption.

2 The boiler body adopts full butt weld wet back structure, low-profile full-wave furnace, boiler structure flexibility and heat-retractable, safe and reliable.

3 The use of 80mm thick aluminum silicate fiber insulation layer, light weight, good thermal insulation, heat loss.

4 Boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

5 Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable.

6 The boiler body resistance is small, stable operation, saving power consumption, low noise.

7. Quick-mounted overall structure, small size, compact structure, easy installation.

8 There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefit is remarkable.



Technical Parameters



Model Unit WNS6-1.25(1.6)-Q(Y)
Rated capacity t/h 6
Working pressure Mpa 1.25/1.6
Steam temperature 194/204
Feed temperature 105
Testing efficiency 96.58
Diesel consumption Kg/h 379.32
Gas consumption Nm³/h 433.51
Outline dimension mm(L*W*H) 5470*2770*3195





 Focus on the achievement of quality, Professional to create the future.







Fully automatic 6t/h oil gas fired steam boiler for Food Industry
