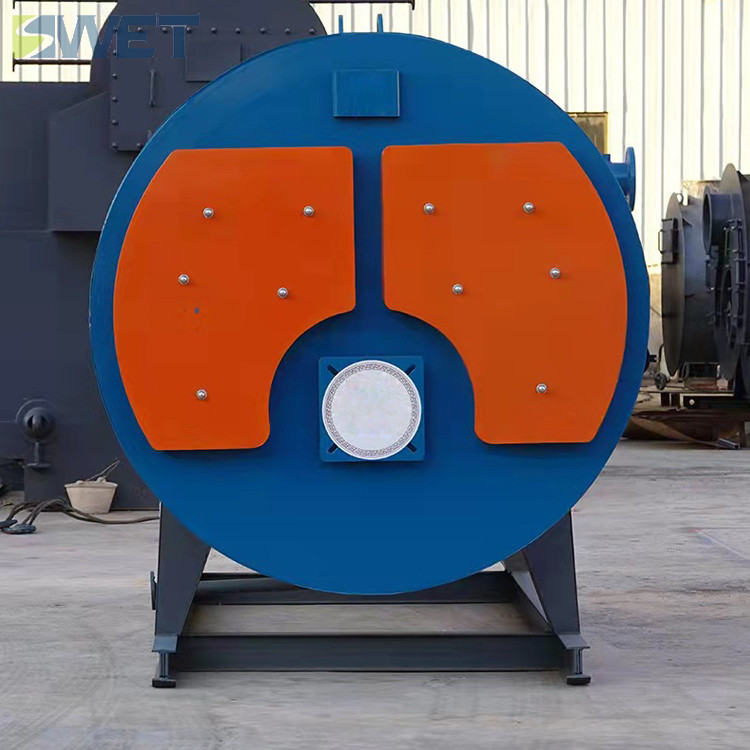

0.7Mpa Industrial Gas Oil Fired Steam Boiler 0.5ton/Hr Rated Thermal Power
0.7Mpa Industrial Gas Oil Fired Steam Boiler 0.5ton/Hr Rated Thermal Power
Contact Now

0.7Mpa Industrial Gas Oil Fired Steam Boiler 0.5ton/Hr Rated Thermal Power

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : packed in wooden cases . Delivery Time : Within 30 days after payment
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1500 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: WNS0.3-Q

Detail Information
Rated Thermal Power: 0.5ton/hr Working Pressure: 0.7Mpa
Stem Temperature: 170℃ Fuel: Natural Gas
Type: Steam Boiler Warranty: 12 Months
High Light:

Gas Oil Fired Steam Boiler

,

0.7Mpa Industrial Gas Steam Boiler

,

0.5ton/Hr Industrial Steam Boiler

Product Description

WNS0.5-0.7-y(Q) model Gas Oil fired Steam Boiler

Our WNS skid mounted gas oil fired steam boiler features a state-of-the-art three-return full wet back construction with large steam space and good steam quality.
Our WNS skid mounted gas oil fired steam boiler is equipped with automatic burner ignition, automatic water level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable on/off time, visible system's working states on screen.We equipped the WNS steam boiler with a reasonable rear view device to facilitate the observation of the flame combustion in the furnace.
Technical parameters
Model WNS0.5-0.7-Q
Rated evaporation (t/h) 0.5
Rated working pressure (Mpa) 0.7
Rated steam temperature (°C) 170
Design thermal efficiency (%) 92.32
Fuel consumption (Nm³/h) 39
Feedwater temperature(°C) 20
Applicable fuel natural gas, liquid gas, city gas etc
Applicable power supply (AC) 380V 50HZ
Approx shipping weight (kg) 2500
Approx shipping size (mm) 3300*1500*1700
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Application
Textile industry: shrinking machine, dryer, washing machine, dehydration machine, printing, ironing machine and other equipment.
Food machinery industry: steamer, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry,hotels, schools, enterprises and other hot water supply and other industries.
WNS0.5-0.7-y(Q) model Gas Oil fired Steam Boiler
Production Process
WNS0.5-0.7-y(Q) model Gas Oil fired Steam Boiler
Packaging & Shipping
WNS0.5-0.7-y(Q) model Gas Oil fired Steam Boiler
Company Information
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland. In 1987 China's first circulating fluidized bed boiler was born in our factory. In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
China 's top ten boiler manufacturing enterprises. Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
Other Products
WNS0.5-0.7-y(Q) model Gas Oil fired Steam Boiler
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
