100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The steam boiler is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | YDZ0.5-0.7-S |
|
Detail Information |
|||
| Rated Evaporation: | 500kg/h | Weight: | 4.3T |
|---|---|---|---|
| Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
| Thermal Efficiency: | 93% | Color: | Customer's Requirement |
| Design Fuel: | Biomass | Warranty: | 12months |
| Usage: | Industrial,Steam Outputing | Type: | Natural Circulation,Other,Once Through /Auxiliary Cycle |
| Fuel: | Oil,Gas,Oil/Gas-fired | Style: | Horizontal,Vertical,horizontal And Vertical |
| Condition: | New | Pressure: | Low Pressure,High Pressure |
| Structure: | Fire Tube,Water Tube | Application: | Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory |
| High Light: | oil steam boiler,natural gas steam boiler |
||
Product Description

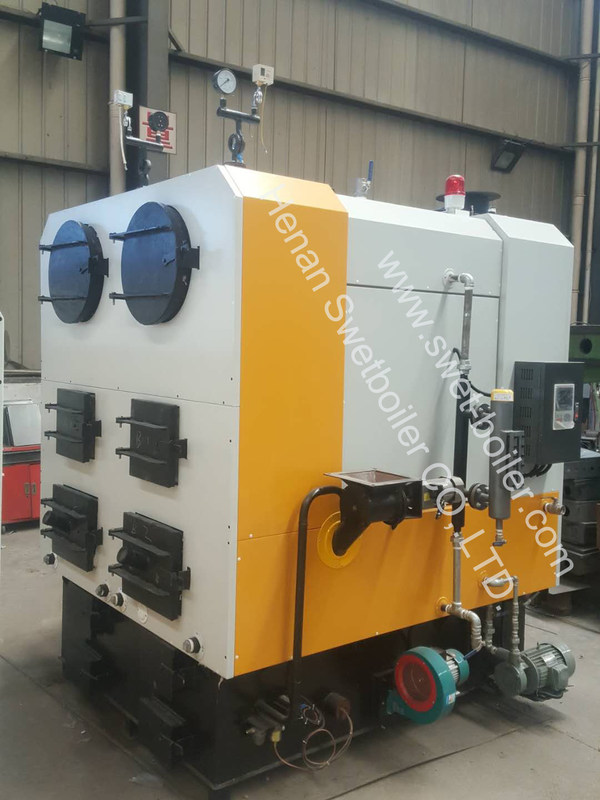

High efficiency 500kg/hr food processing steam boiler
1. In the design structure, compared with the traditional boiler furnace space, and the very reasonable secondary air arrangement, it is beneficial to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.
2. The boiler has the characteristics of high thermal efficiency, no pollution, no emission, compact structure, etc. It is an alternative to electric, combustion and gas steam boilers.
3.The furnace body is generally made of a special seamless pipe for boilers. Because the generator has high pressure and temperature during normal operation, the safety protection system makes it safe, reliable and efficient in long-term operation. The safety valve consists of a strong copper alloy, check valve and exhaust valve for three-stage protection.
| Biomass steam boiler technical | |||||||||||||
| Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
| 600 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
| 1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
