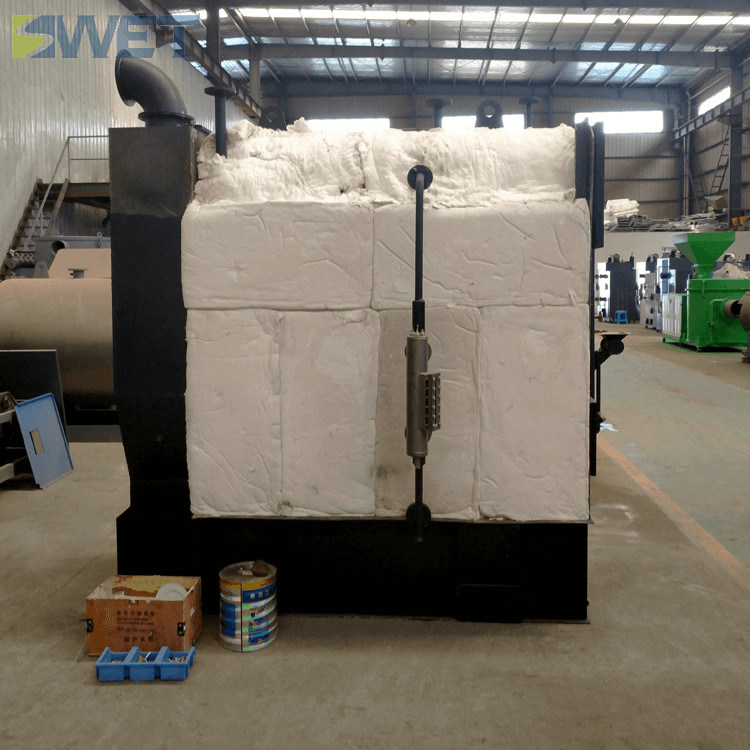

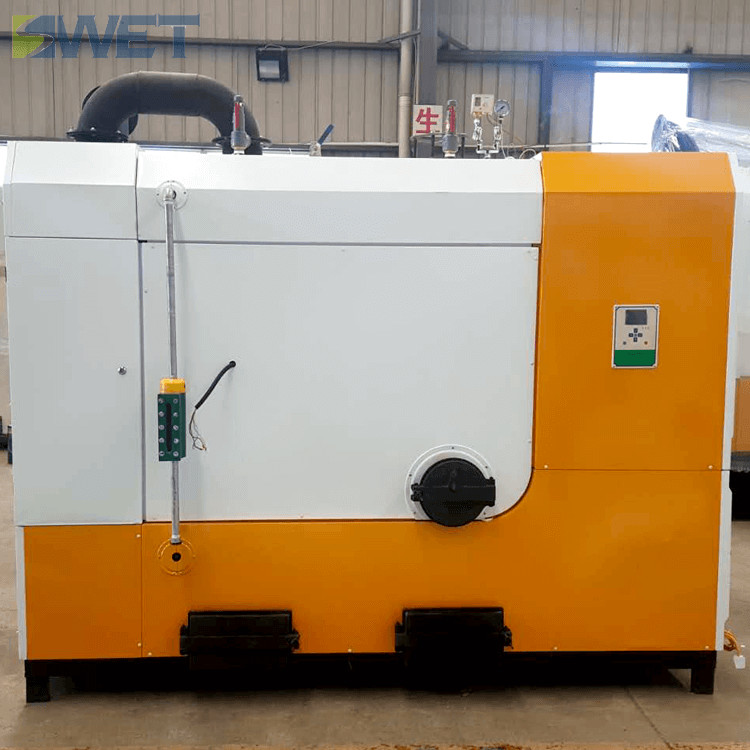

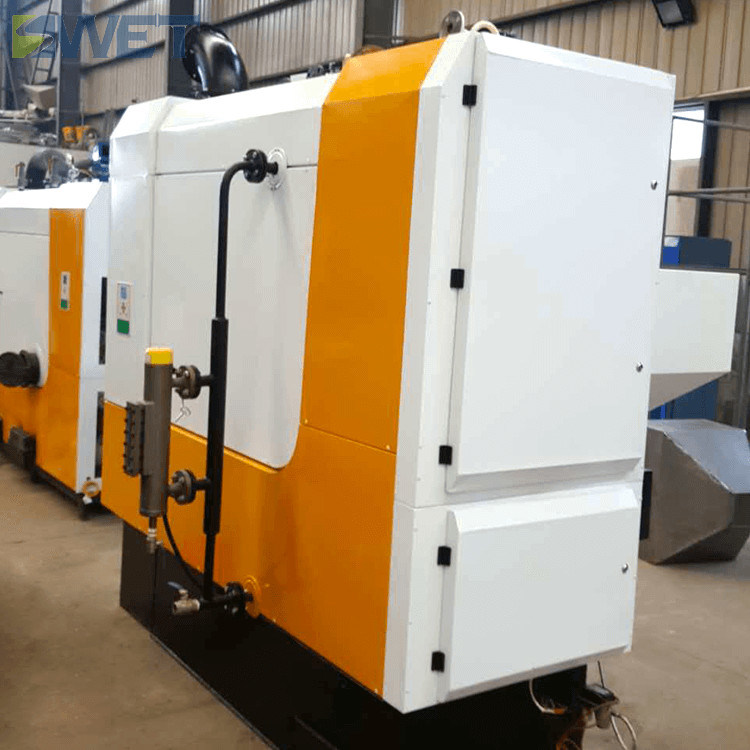

0.7Mpa 1000kg Industrial Automatic Biomass Steam Generator

Environmental protection and durability: gas steam boiler with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards; meticulous design, the use of table steel is much higher than peers Standard, the main body of gas steam boiler in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.

Sophisticated and beauty: gas steam boiler innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.

The gas steam boiler furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.

The gas steam boiler control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.

Steam boiler technical parameters

Item			Vertical
			LSS0.1-0.7-S	LSS0.15-0.7-S	LSS0.2-0.7-S	LSS0.3-0.7-S	LSS0.4-0.7-S	LSS0.5-0.7-S
Rated evaporation		Kg/h	100	150	200	300	400	500
Rated pressure		Mpa	0.7	0.7	0.7	0.7	0.7	0.7
Rated steam temperature		℃	170	170	170	170	170	170
Design thermal efficiency		%	87	87	87	87	87	87
Water capacity		L	<29	<29	<29	<29	<29	<29
Steam outlet		DN	15	15	20	25	25	32
Water intake		DN	15	15	15	15	15	25
Drain valve		DN	20	20	25	25	25	25
Dimensions	L	mm	1500	1600	2000	2000	2100	2400
	W	mm	900	900	1000	1000	1000	1000
	H	mm	1800	1900	2000	2100	2100	2300
Shipping weight		T	0.65	0.7	1	1.2	1.2	1.6
Full load biomass consumption		Kg/h	16	24	32	49	65	82

Item			Horizontal
			YDZ0.3-0.7-S	YDZ0.4-0.7-S	YDZ0.5-0.7-S	YDZ0.7-0.7-S	YDZ1.0-0.7-S
Rated evaporation		Kg/h	300	400	500	700	1000
Rated pressure		Mpa	0.7	0.7	0.7	0.7	0.7
Rated steam temperature		℃	170	170	170	170	170
Design thermal efficiency		%	92	92	92	92	92
Water capacity		L	<29	<29	<29	<29	<29
Steam outlet		DN	25	32	32	40	50
Water intake		DN	25	25	25	25	25
Drain valve		DN	25	25	25	25	25
Dimensions	L	mm	2400	2400	2500	2500	2500
	W	mm	1700	1700	1700	1700	1700
	H	mm	2100	2100	2500	2600	2600
Shipping weight		T	3	3.2	4	4.1	4.3
Full load biomass consumption		Kg/h	46	62	77	108	154







Company Information

Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.

It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.

It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.

In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.

In 1987 China's first circulating fluidized bed boiler was born in our factory.

In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.

OUR ENTERPRISE HONOR

OUR ADVANTAGES

Chinese Academy of Sciences circulating fluidized bed boiler research and development base.

China 's top ten boiler manufacturing enterprises.

Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.

North China Water Conservancy and Hydropower University teaching and research base.

The China’s first circular flow bed (CFB)boiler manufacturer.

Packaging & Shipping

Some of our domestic customers

China Petroleum Pipeline Materials and Equipment Corporation.

China Petroleum & Chemical Corporation.

China Aero Engine Group.

COFCO Group Limited.

Our Customer Visit

Any Question, Please contact us ,we serve you 24 hours !
