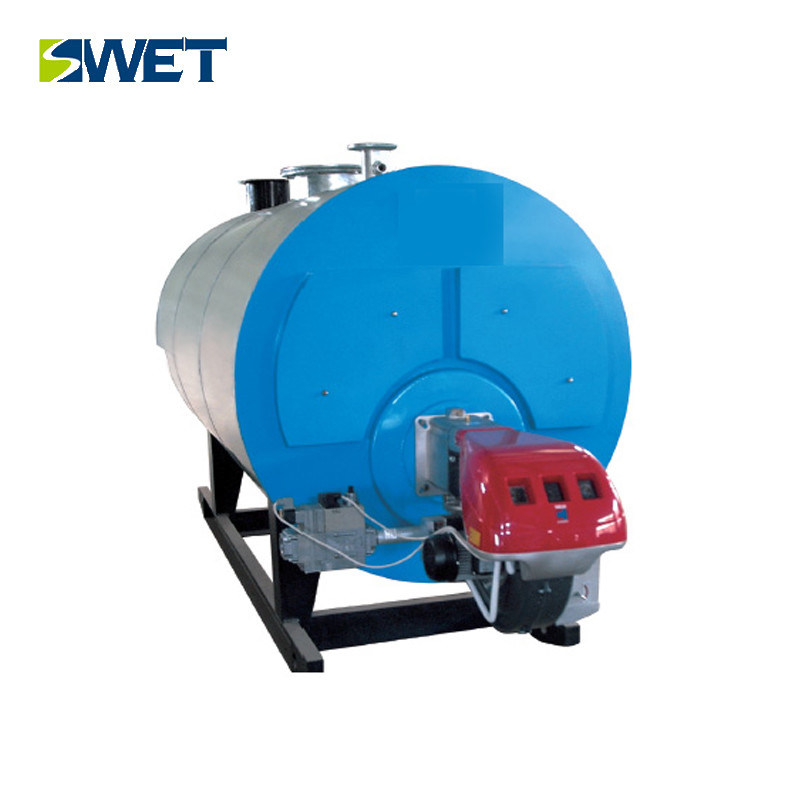

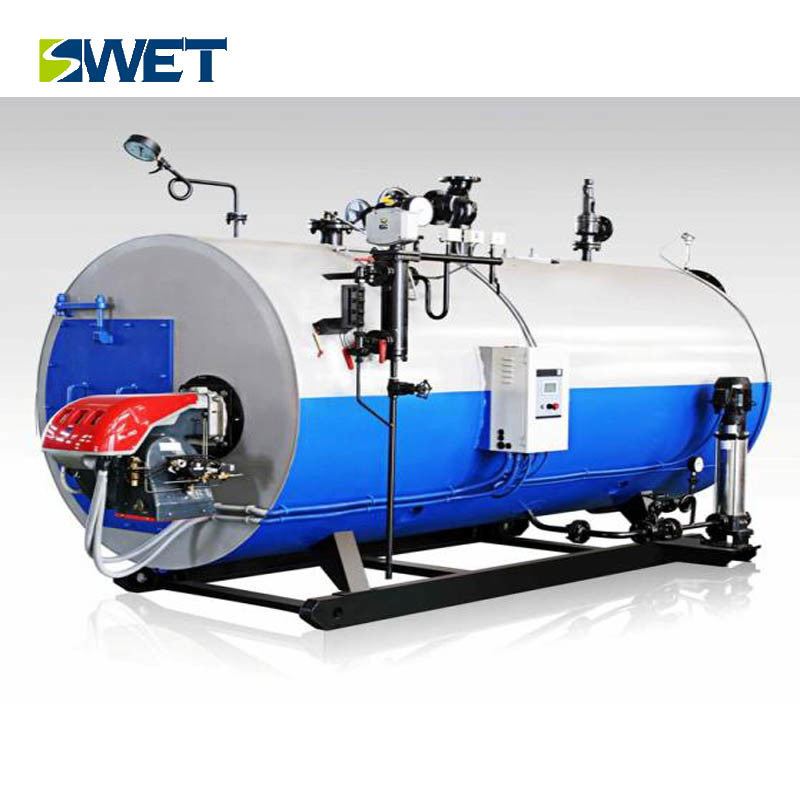

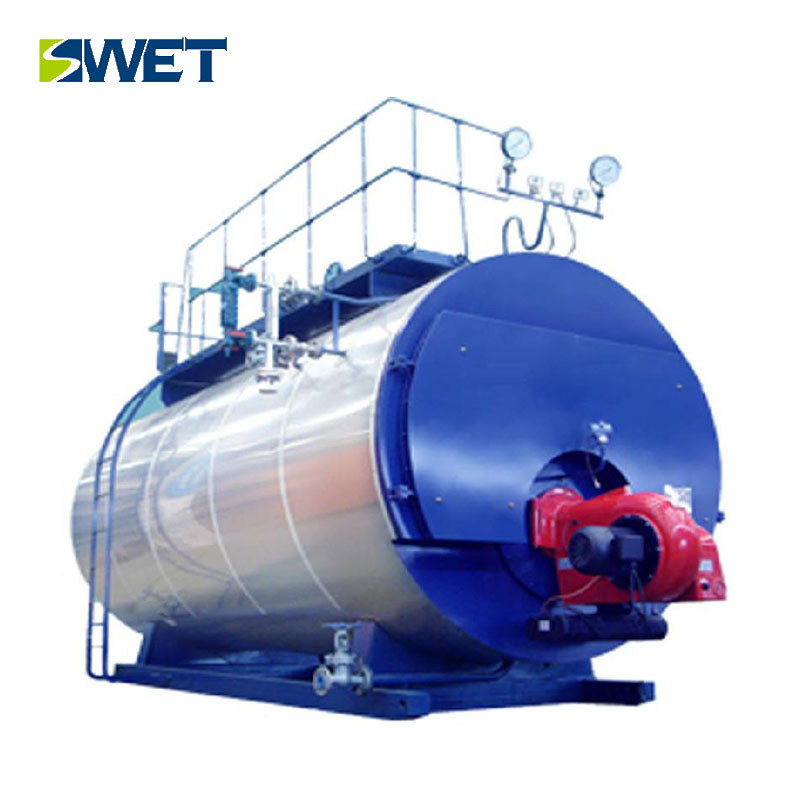

Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry

China Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry supplier
Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry supplier Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry supplier Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry supplier

Large Image :  Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: WNS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 5t / H Rated Working Pressure: 1.0/1.25/1.6 MPa
Rated Steam Temperature: 184/194/204 ℃ Feed Water Temperature: 20 ℃
Keywords: Gas Steam Boiler Model: WNS
Testing Efficiency: 96.48 % Color: Customer Requirements



Small Fire Tube Gas Steam Boiler Machine 5 Ton 1.0MP For Textile Industry



1. It uses a spirally corrugated tube, strengthening heat transfer and eliminating welding stress.



2. It adopts wet back structure with high reliability and low maintenance cost.



3. It has protective functions of overtemperature, overpressure, water shortage, leakage detection and flame out, ensuring safe and reliable operation.



Product Data

Fire tube steam boiler machine 5 ton steam boiler for textile industry
WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Gas consumption Outline dimension
Unit t/h Mpa % Nm³/h mm(L*W*H)
WNS20-2.5-Q(Y) 20 2.5 226 105 97.62 1407.5 8660*3520*4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1459 8870*3550*3750
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 837.25 6370*2812*3514
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 433.51 5470*2770*3195
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 334.23 4880*2710*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 245.12 4762*2447*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 163.72 4030*2010*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output
Welcome to contact us



Important production process of the product



(1) The boiler is composed of a tube sheet manufacturing process, a barrel manufacturing process, a manhole device manufacturing process, a drum manufacturing process, and a boiler assembly process.



(2) After the components of the boiler are assembled, they are packaged or sent directly to the user.







Application



(1) The steam boiler for food industry and wood processing.



(2) The steam boiler for asphalt plant and brewery.



(3) The steam boiler for printing mill and garment industry.





Welcome to contact us

Packaging & Shipping







steam boiler machine,5 ton steam boiler,steam boiler for textile industry



Product packaging



(1) Industrial steam boiler package.



(2) In all boiler attachments or plywood wooden boxes.



(3) Packing specification: customer requirements.



(4) Bulk, wooden boxes, crate.



Advanced and reasonable design     WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality. A large combustion chamber which increases the radistion heating furnace       Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and mazout, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.



FAQ


Q: What is our Qualification?

A: We are a Class-A Boiler Manufacturer, with 30 years' experience in the field of boilers and pressure vessels.



Q: What is our Product Range?

A: We specialized in Hot Water Boiler, Steam Boiler, Thermal Oil Boiler, Autoclave, Pressure Tanks, Wood Treatment Plant, Hot Air Generator, etc.



Q: What is our Warranty Period?

A: The Warranty Period is one year with lifelong service.



Q:How is our industry brand?

A:Boiler design, manufacturing, transportation, installation, service integration.
