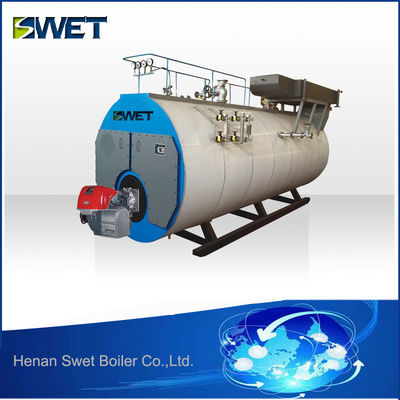

Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler

Certification
Good quality Gas Steam Boiler for sales
Good quality Gas Steam Boiler for sales
We are very satisfied the machine, it's easy to assemble and operate. advanced controlling theory with high-performance PLC, high level of automatic.

—— Smith

During the three times cooperation, all the machines are working well, hope your company getting better and better. A good beginning is half done.

—— Abdul Moiz

I'm Online Chat Now

Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler

China Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler supplier
Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler supplier Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler supplier Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler supplier

Large Image :  Low Emission Oil Gas Steam Boiler For Industrial , Low Pressure Steam Boiler

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: WNS4-1.25(1.6)-Q(Y)

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 4 T / H Rated Working Pressure: 1.25/1.6 MPa
Rated Steam Temperature: 194/204 ℃ Feed Water Temperature: 20 ℃
Keywords: Gas Steam Boiler Model: WNS4-1.25(1.6)-Q(Y)-3017
Testing Efficiency: 96.48 % Color: Customer Requirements



New Type Oil Gas Fired Boiler Steam For Industrial



Product Description



Our product advantages and features:

(1)This kind of burning gasoline boiler uses new type fireproof material, no preload, high thermal efficiency, stable air pressure, steam can produce high quality products in a short time.



(2)When burning, the noise is low, pollution-free, flue gas is burned completely, which can save fuel cost and improve economic efficiency.



(3)This is an environment-friendly and energy-saving product.



(4)It has perfect automatic control device and safety protection device, high and low water level alarm and low water level chain protection function.



(5)Automatic ignition of boiler, automatic adjustment of burner firepower and flameout protection to ensure safe operation of boiler.



(6)In the overall structure, the lower furnace is used, and the smoke tube and the furnace are arranged symmetrically in the left and right. The corrugated furnace increases the heat transfer area, increases the rigidity of the furnace, and satisfies the free expansion of the furnace after being heated.



 Oil Gas Fired Boiler Steam



Product data



 Oil Gas Fired Boiler Steam



WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Gas consumption Outline dimension
Unit t/h Mpa % Nm³/h mm(L*W*H)
WNS20-2.5-Q(Y) 20 2.5 226 105 97.62 1407.5 8660*3520*4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1459 8870*3550*3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/197/204 105 97.2 1126 7450*3520*4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 837.25 6370*2812*3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 96.7 659.25 6000*2920*3403
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 433.51 5470*2770*3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 96.48 409.33 5160*2410*3015
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 334.23 4880*2710*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 245.12 4762*2447*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 163.72 4030*2010*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output



Welcome to contact us

Production Process





 Oil Gas Fired Boiler Steam



Important production process of the product

(1) The boiler is composed of a tube sheet manufacturing process, a barrel manufacturing process, a manhole device manufacturing process, a drum manufacturing process, and a boiler assembly process.

(2) After the components of the boiler are assembled, they are packaged or sent directly to the user.





Company Information

Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,

we have continued to provide customers with more than 60 years of quality service,

known as the king of China's boiler.Tt’s the national designated A-class boilers and D1

D2 class pressure vessel manufacturing key enterprises and has passed ISO9001

international quality management certification system certification. It holds level 1 boiler

installation permit ,National special equipment manufacturing license. National special

equipment installation remould maintenance permits and so on.In1979 the world's

firstcirculating fluidized bed boiler developed by the Austrian company in Finland,In1987

China's first circulating fluidized bed boiler was born in our factory. In 2016 In order to

meet current emissions and reduce energy consumption requirements, our company

launched efficient low-emission energy-saving circulating fluidized bed boiler has been

identified by the national institute of special equipment

Our main products including circular flow bed (CFB)boiler, gas boiler, coal boiler,

biomass boiler,oilboiler power plant boiler , energy-saving boiler,solider waste boiler,

high- efficiency boiler, electric hot water boiler high-pressure boiler, fully automatic

control boiler, wood chip biomass steam boiler,chain grate boiler,condensing boiler,

natural gas steam boiler. water tube boiler, fire tube boiler, full artificial intelligence

boiler biomass steam generator, refractory materials, boiler accessories and so on.



 Oil Gas Fired Boiler Steam





Companies to install and maintain as a production and then continue to become the industry's

well-known professional installers, professional maintenance, the company has an installation

qualification, 17 installation project department, more than 400 people install the team. Is the

largest in the country.

The company has been specializing in the design, development, manufacture, installation and

after-sales service of industrial boilers, and has formed a quality service system that has been

pre-sold, sold and sold. And the establishment of a sound service consulting system to strict

management to ensure product quality, quality service to win the user's satisfaction



 Oil Gas Fired Boiler Steam



 Oil Gas Fired Boiler Steam







 Oil Gas Fired Boiler Steam



(1) The steam boiler for food industry and wood processing.

(2) The steam boiler for asphalt plant and brewery.

(3) The steam boiler for printing mill and garment industry.

(4) The steam boiler for hospital and school

(5) The steam boiler hotel and paper industry.

(6) The steam boiler steel industry and rice mill.



Welcome to contact us

Packaging & Shipping





 Oil Gas Fired Boiler Steam

(1) Industrial steam boiler package.

(2) In all boiler attachments or plywood wooden boxes.

(3) Packing specification: customer requirements.

(4) Bulk, wooden boxes, crates

Client Access





 Oil Gas Fired Boiler Steam

















FAQ

Q: What is our Qualification?

A: We are a Class-A Boiler Manufacturer, with 30 years' experience in the field of boilers and pressure vessels.



Q: What is our Product Range?

A: We specialized in Hot Water Boiler, Steam Boiler, Thermal Oil Boiler, Autoclave, Pressure Tanks, Wood Treatment Plant, Hot Air Generator, etc.



Q: What is our Warranty Period?

A: The Warranty Period is one year with lifelong service.



Q:How is our industry brand?

A:Boiler design, manufacturing, transportation, installation, service integration.



Q: how do you choose the type of boiler?

A: type (steam or hot water), capacity, pressure and fuel (coal, biomass, natural gas or oil) need to be confirmed.



Q: what is the service life of the boiler

A: the service life of the Boiler is at least 10 years, but in good condition, the Boiler can be used for at least 15 years.



Q: how do you choose the boiler model?

A: identify the type of Boiler, steam or hot water), capacity, working pressure (or output temperature) and fuel (coal, biomass, gas or oil or other fuel), Swet Boiler will be according to your usage suggest suitable model.



Q: how about the warranty period?

A: if there is any quality problem during the warranty period, the seller will repair or replace the damaged parts free of charge. If the customer has any problem, the seller will provide the spare parts at the lowest cost.
