Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler

China Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler supplier
Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler supplier Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler supplier Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler supplier Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler supplier

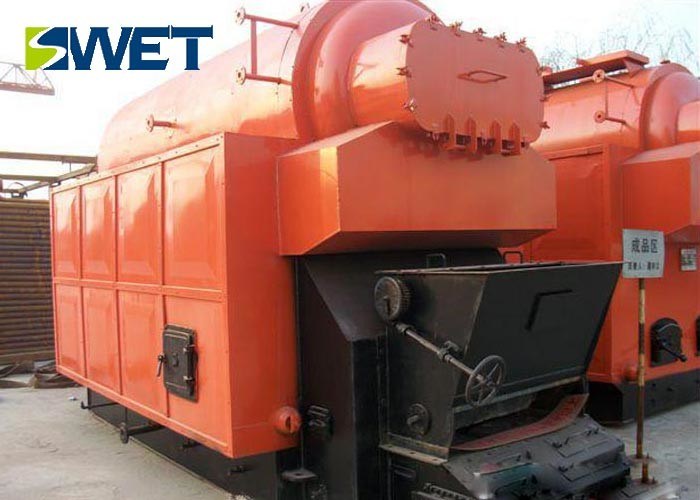

Large Image :  Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL30-2.5-T-0040

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 30t/h Working Pressure: 2.5MPa
Steam Temperature: 224℃ Boiler Dimensions: 13000x7100x9500mm
Exhaust Temperature: 160℃ Thermal Efficiency: 85%

4MW Chain Grate Biomass Fired Hot Water Boiler For Industrial Heating



Product Description



1. The boiler shall adopt double drum, monolayer arrangement, compact structure, as well as large heating surfaces which are more 10% than those of same kinds of products, featuring the following advantages such as sufficient output, safe and reliable operation ,short construction period, and low installation cost ect.



2. The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas .At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness ,as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.



3. Induced draft fan and forced draft fan make good ventilation. Fuel from coal scuttle fall on grate stoker,enters the furnace was burned, the flame through the combustion chamber,the economizer and was drew forth by induced draft fan and into the atmosphere.



The boiler fuel

Efficient 4MW Chain Boiler , Industrial Heating Biomass Hot Water Boiler

Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800
