1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue

China 1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue supplier
1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue supplier 1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue supplier 1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue supplier 1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue supplier

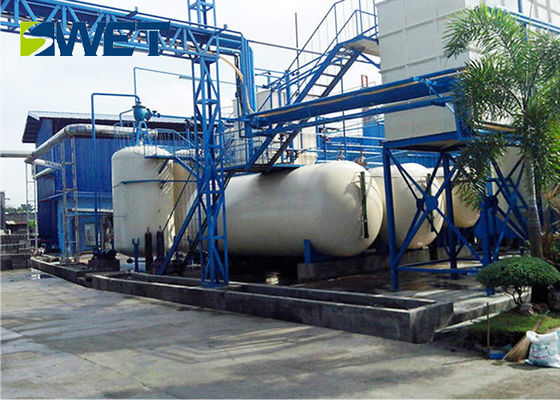

Large Image :  1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: QC28/720-9-1.0-0015

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Standard Packaging
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash or on the basis of mutual agreement
Supply Ability: 200 Set/Sets Per Year
Contact Now
Detailed Product Description
Flue Gas Volume: 28000m³/h Flue Gas Temperature: 720℃
Evaporation: 9T/H Steam Pressure: 1.0MPa
Steam Temperature: Saturated Vapor Keywords: Waste Heat Boiler



1MPa Glass Furnace Flue Gas Waste Heat Boiler Central Heating System



Product Description



1. Waste heat boiler is comprehensive utilization heat auxiliary equipment, which is generally installed in the flue gas pass, absorb heat (or waste heat) of exhausting flue gas to generate steam, and to reduce flue gas temperature. If the waste heat boiler in the run-time failure, and no by-pass flue, it will affect the normal operation of the heating furnace.



2. Difference between waste heat boiler and the general boiler is, waste heat boiler do not need fuel, but to use waste heat to generate steam, so although a large investment for one time, but if the steam can be fully utilized, then most of its investment can be get back in 4 to 6 months. For the normal boiler, The flue gas temperature is low, so the requirements of the heated surface is much larger than the general boiler.



Technical Parameters



Model

Flue gas volume

Flue gas temperature

Evaporation

Steam pressure

Steam temperature

Unit

m³/h

t/h

MPa

Q19/1100-6-1.25

19000

1100

6

1.25

Saturated Vapor

Q29/800-10-2.5

29000

800

10

2.5

Saturated Vapor

QZ9/1150-4-0.4

9000

1150

4

0.4

Saturated Vapor

Q15-420-8-2.4/350

15000

420

8

2.4

350

Q16-740-5-3.82/440

16000

740

5

3.82

440

Q120/900-82-3.82/450

120000

900

82

3.82

450

QC28/720-9-1.0

12000

720

9

1.0

Saturated Vapor

QC18/1200-4-1.25/220

18000

1200

4

1.25

220



1MPa Gas Waste Heat Boiler Central Heating System With Glass Furnace Flue
