4t/h Gas Oil Boiler for Chemical industry and Textile industry

Product Details:
Place of Origin: Henan,China
Brand Name: SWET
Certification: ISO9001
Model Number: WNS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wood care plus tarpaulin packaging
Delivery Time: 25-30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET Per Year

Detail Information

Rated Capacity: 4T/H Working Pressure: 1.0/1.25/1.6Mpa
Steam Temperature: 184/197/204℃ Feed Temperature: 20℃
Testing Efficiency: 96.3% Diesel Consumption: 292kg/h
Gas Consumption: 334.23Nm3/h Outline Dimension: 4880*2710*2600mm
High Light:

oil hot water boiler

,

high efficiency oil boiler

Product Description

4t/h gas oil steam boiler for Chemical industry and Textile industry



Product Description



  1.The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.equipment application in the future.

Key Features



1 The use of 80mm thick aluminum silicate fiber insulation layer, light weight, good thermal insulation, heat loss.

2 Boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

3 Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable.

4 The boiler body resistance is small, stable operation, saving power consumption, low noise.

5. Quick-mounted overall structure, small size, compact structure, easy installation.

6 There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefit is remarkable.


Technical Parameters



WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Diesel consumption Gas consumption Outline dimension
Unit t/h Mpa Kg/h Nm³/h mm(L*W*H)
WNS20-2.5-Q(Y) 20 2.5 226 105 97.62 1231.56 1407.5
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1276.63 1459 8870*3550*3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/197/204 105 97.2 985.25 1126 7450*3520*4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 732.59 837.25 6370*2812*3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 96.7 576.84 659.25 6000*2920*3403
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 379.32 433.51 5470*2770*3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 96.48 358.16 409.33 5160*2410*3015
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 292.45 334.23 4880*2710*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 214.48 245.12 4762*2447*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 143.26 163.72 4030*2010*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

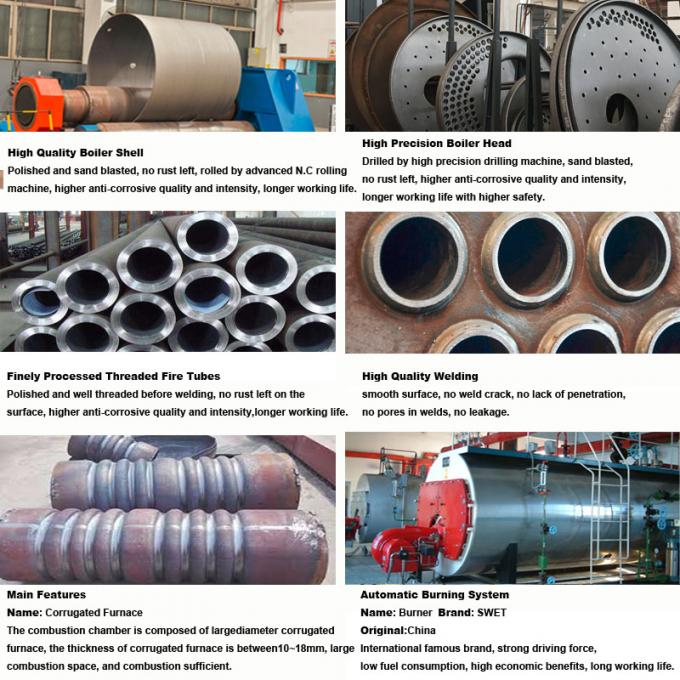

Factory Photo



4t/h gas oil boiler



 Focus on the achievement of quality, Professional to create the future.
