Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler

China Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler supplier
Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler supplier Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler supplier Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler supplier Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler supplier

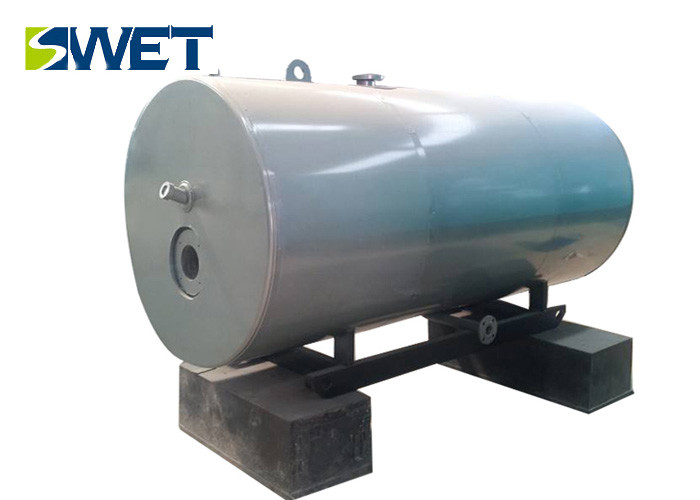

Large Image :  Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: QXS(SZS)14-1.25(1.6)-Y,Q-3006

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Leaving Water Temperature: 115(130)(150) ℃ Return Water Temperature: 70(90)℃
Efficiency: 97.02 % Model: QXS(SZS)10.5-1.25-Y,Q-3006
Keywords: Hot Water Boiler Rated Thermal Power: 14 MW

Low Pressure 14Mw 97.02 % Oil Gas Industrial Steam Boiler For Textile Mills


Product description

1. SZS series of fuel (gas) hot water boiler for the classic D-type layout of the boiler.

2. The company's SZS series of fuel (gas) boiler is a typical D-type arrangement of double-drum longitudinal-type water tube boiler, according to the size of the boiler divided into fast-type and assembly type.



3. Rated evaporation of SZS series steam boiler: 20 ~ 100t / h; Rated steam pressure: 1.0 ~ 3.82MPa; Rated steam temperature: saturated or superheated steam temperature of 250 ~ 450 ℃.



4. SZS series hot water boiler rated thermal power: 14 ~ 70MW; rated water pressure: 1.0 ~ 1.6MPa; rated water / water temperature: 95 ~ 150/70 ~ 110 ℃.


Product advantages

1. The compact structure of the boiler, covers an area of ​​small, full of good flame.

2. Hot water boiler under the support method, the heat can be freely expanded.

3.
The hot water boiler uses airtight inner fender, furnace body sealing, shape embossed suppressor plate, beautiful appearance.

4. The hot water boiler assembly and quick installation structure, effectively shorten the installation cycle.

5. Imported burners used in boilers, with high combustion efficiency ignition control and other complex functions.

FAQ


1. Q:When you ship my order?
     A:Normally 7-30 days after receiving your payment.



2. Q:How to choose a boiler model?
     A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage



3. Q: What is the boiler warranty?
     A: 2 years.


Low Pressure Oil Fired Steam Boiler , 14Mw 97.02 % Textile Mills Oil Heating Boiler

Product parameters


SZS water pipe type full automatic gas-fired hot water energy-saving boiler

Model

Rated thermal power

nominal working pressure

Leaving Water Temperature

return water temperature

efficiency

gas consumption

Overall dimensions of transportation

Unit

MW

MPa

%

Nm³/h

mm

QXS(SZS)58

58

1.25(1.6)(2.5)

130(150)

70(90)

98.3

6196

15360*7570*8318

QXS(SZS)48

48

1.25(1.6)(2.5)

130(150)

70(90)

98.09

5048

15600*9500*7920

QXS(SZS)29

29

1.25(1.6)

130(150)

70(90)

97.8

3150

9685*6870*7180

QXS(SZS)21

21

1.0(1.25)(1.6)

115(130)(150)

70(90)

97.13

2328

10130*6170*6134

QXS(SZS)14

14

1.0(1.25)(1.6)

115(130)(150)

70(90)

97.02

1558

8120*3385*3750

QXS(SZS)10.5

10.5

1.0(1.25)(1.6)

115(130)(150)

70(90)

97

1136

7250*3682*3820

QXS(SZS)7

7

0.7(1.0)(1.25)

95(115)(130)

70(90)

96.87

754

6770*3210*3775

QXS(SZS)7

7

1.25

115

70(90)

95.76

763

6760*2780*3299

QXS(SZS)5.6

5.6

0.7(1.0)(1.25)

95(115)(130)

70(90)

95.57

619.2

6450*2956*3620

QXS(SZS)4.2

4.2

0.7(1.0)(1.25)

95(115)(130)

70(90)

95.36

456.7

5700*3105*3410

QXS(SZS)2.5

2.5

0.7(1.0)(1.25)

95(115)

70(90)

95.13

314

5160*2840*2930

Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output
