Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion

China Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion supplier
Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion supplier Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion supplier Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion supplier Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion supplier

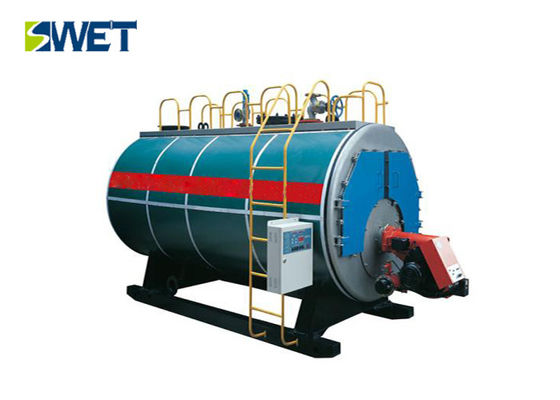

Large Image :  Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZS5.6-1.25-Y,Q-3002

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Nominal Working Pressure: 0.7(1.0)(1.25) MPa Leaving Water Temperature: 95(115)(130) ℃
Return Water Temperature: 70(90)℃ Efficiency: 95.57 %
Model: SZS5.6-1.25-Y,Q-3002 Keywords: Hot Water Boiler

SZS Horizontal Oil Fired Hot Water Boiler With Fully Automatic Operation


Product description:


1. ​SZS-type oil-fired gas hot water boiler is a dual-drum vertical type "D" type arrangement quick assembly water tube boiler ​

2. The fuel gas hot water boiler is composed of upper and lower drums, membrane water wall, convection tube bundle and economizer and condenser.

Product advantages:

1. Simple and reasonable structure

2. Safe and reliable operation

3. Sufficient output

4. Light positive pressure combustion

5. Low power consumption

Application

 Dyeing plants, hotels, canteens, restaurants, food plants, beverage plants, soy products factory, meat products factory, canned food Factories, wineries, pharmaceuticals

Product parameters



SZS water pipe type full automatic gas-fired hot water energy-saving boiler
Model Rated thermal power nominal working pressure Leaving Water Temperature return water temperature efficiency gas consumption Overall dimensions of transportation
Unit MW MPa % Nm³/h mm
QXS(SZS)58 58 1.25(1.6)(2.5) 130(150) 70(90) 98.3 6196 15360*7570*8318
QXS(SZS)48 48 1.25(1.6)(2.5) 130(150) 70(90) 98.09 5048 15600*9500*7920
QXS(SZS)29 29 1.25(1.6) 130(150) 70(90) 97.8 3150 9685*6870*7180
QXS(SZS)21 21 1.0(1.25)(1.6) 115(130)(150) 70(90) 97.13 2328 10130*6170*6134
QXS(SZS)14 14 1.0(1.25)(1.6) 115(130)(150) 70(90) 97.02 1558 8120*3385*3750
QXS(SZS)10.5 10.5 1.0(1.25)(1.6) 115(130)(150) 70(90) 97 1136 7250*3682*3820
QXS(SZS)7 7 0.7(1.0)(1.25) 95(115)(130) 70(90) 96.87 754 6770*3210*3775
QXS(SZS)7 7 1.25 115 70(90) 95.76 763 6760*2780*3299
QXS(SZS)5.6 5.6 0.7(1.0)(1.25) 95(115)(130) 70(90) 95.57 619.2 6450*2956*3620
QXS(SZS)4.2 4.2 0.7(1.0)(1.25) 95(115)(130) 70(90) 95.36 456.7 5700*3105*3410
QXS(SZS)2.5 2.5 0.7(1.0)(1.25) 95(115) 70(90) 95.13 314 5160*2840*2930
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output



Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion

Anti Corrosion Oil Fired Hot Water Generator Light Positive Pressure Combustion
