Hot Water Industrial Steam Boiler Gas Combi Diesel Boiler For Paper Industry Applied

China Hot Water Industrial Steam Boiler Gas Combi Diesel Boiler For Paper Industry Applied supplier
Hot Water Industrial Steam Boiler Gas Combi Diesel Boiler For Paper Industry Applied supplier Hot Water Industrial Steam Boiler Gas Combi Diesel Boiler For Paper Industry Applied supplier Hot Water Industrial Steam Boiler Gas Combi Diesel Boiler For Paper Industry Applied supplier

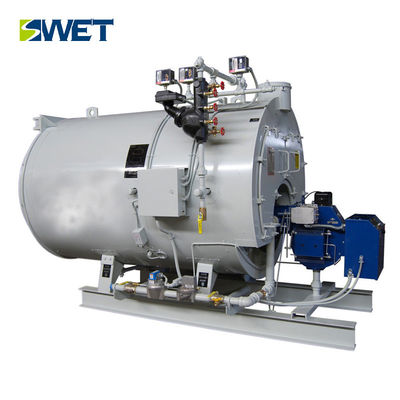

Large Image :  Hot Water Industrial Steam Boiler Gas Combi Diesel Boiler For Paper Industry Applied

Product Details:

Place of Origin: Henan,China
Brand Name: SWET
Certification: ISO9001
Model Number: WNS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export neutral packaging
Delivery Time: 25-30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Set Per Year
Contact Now
Detailed Product Description
Keywords: Gas Combi Boiler Warranty: 12 Months
Thermal Efficiency: 96.58% Rated Capacity: 6t/h
Working Pressure: 1.6MPa Steam Temperature: 204℃
Gas Consumption: 837.25Nm3/h Feed Temperature: 105℃

 Hot water and steam fire tube gas combi diesel boiler for paper industry


Product Description

1. High Quality and Reliable Oil Gas Burner.
High combustion efficiency and environmental protection.
2. Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.
3. Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and reduce the NOx emission.
4. High Thermal Efficiency.
1) Adopts three pass heating system, improve the heat utilization efficiency.
2) Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.
3) By equipping with economizer, make full use of the heat of flue gas.

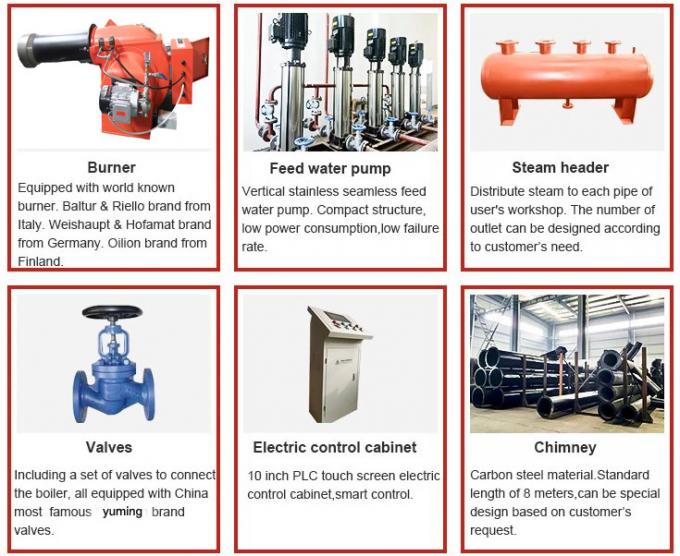

5. High Quality boiler auxiliaries and multiple safety protection devices.
(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)
6. Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the safe operation.
hot water and steam fire tube gas combi diesel boiler for paper industry

Protective device
1.Boiler equipped with autoalarm control system,function are as followed:

(1).High and low water level give sound and light alarm.
(2).Low water level interlock protection founction.
(3).Water level automatic control founction.
diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
2.Boiler Fire off Protection :

  If oil gas boiler fire off,if continue to supply fuel, the furnace may explode.This oil(gas) boiler burner equip with flam detection device,it can inspect the the furnace combustion condition.if gnition is failure or flamout halfway,it will close the oil(gas) solenoid vave in 5seconds(ignition),close the solenoid valve in 10 seconds(operation),and will Send out sound and light alarm signal. At this time,the forced draft fan continue working to blow off the flammable gas, after 20-30 seconds, the forced draft fan will stop working and all auxiliaries will power off automatically.



Technical Parameters


WNS series automatic gas (oil) steam energy saving boiler product selection formModelUnitWNS6-1.25(1.6)-Q(Y)
Rated capacityt/h6
Working pressureMpa1.25/1.6
Steam temperature194/204
Feed temperature105
Testing efficiency96.58
Diesel consumptionKg/h379.32
Gas consumptionNm³/h433.51
Outline dimensionmm(L*W*H)5470*2770*3195



Factory Photo

hot water and steam fire tube gas combi diesel boiler for paper industry

hot water and steam fire tube gas combi diesel boiler for paper industry

hot water and steam fire tube gas combi diesel boiler for paper industry

hot water and steam fire tube gas combi diesel boiler for paper industry

hot water and steam fire tube gas combi diesel boiler for paper industry

hot water and steam fire tube gas combi diesel boiler for paper industry

 Focus on the achievement of quality, Professional to create the future.
