1Ton Biomass Pellet Chips Steam Boiler Fuel For Malaysia Food Industry

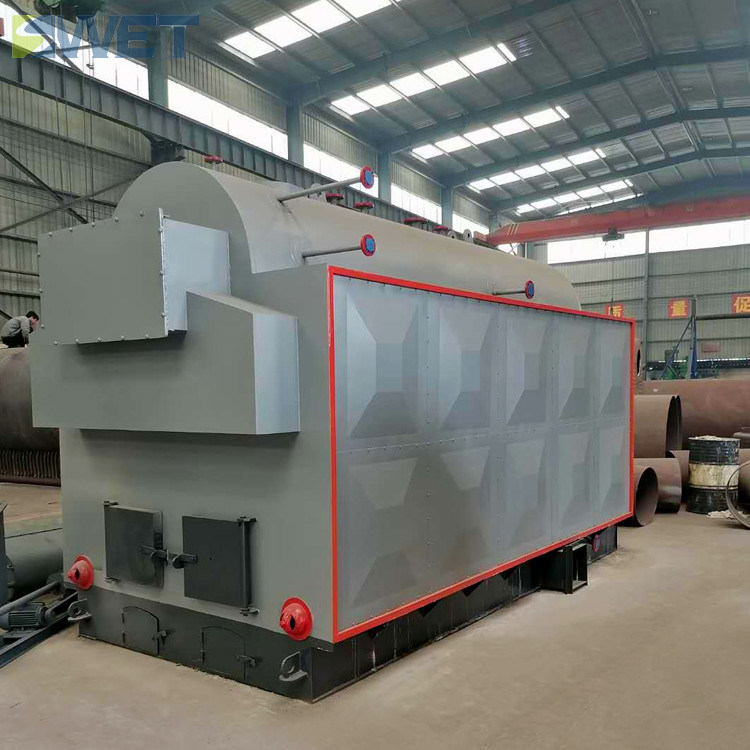

Our DZL series biomass steam boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Warranty of core components	12 months
Steam Production	1 ton per hour
Place of Origin	Henan, China
Warranty	12 months
Condition	New
Type	Natural Circulation
Usage	Industrial
Structure	Water Tube
Pressure	0.5-2.0MPa
Style	Horizontal
Fuel	Biomass, Coal, Biomass pellet chips etc
Brand Name	SWET
Output	Steam
Fuel Type	Heating, chemical, food, tobacco, textile
Operation	Fully Automatic Control
Manufacturer	More than 60 years
Packaging Details	Boiler body part is in nude packing with protection film outside.
	Accessories are in export-use wooden box.

Model	DZL1-1.0-T
Rated capacity (t/h)	1
Rated working pressure (Mpa)	1.0
Rated steam temperature (°C)	180
Design thermal efficiency (%)	80.6
Heat area (m²)	45.6
Great area (m²)	1.8
Applicable fuel	Coal, Biomass pellets
Applicable power supply (AC)	380V 50HZ
Exhaust temperature (°C)	136
Approx shipping size (mm)	4700*2100*3000
