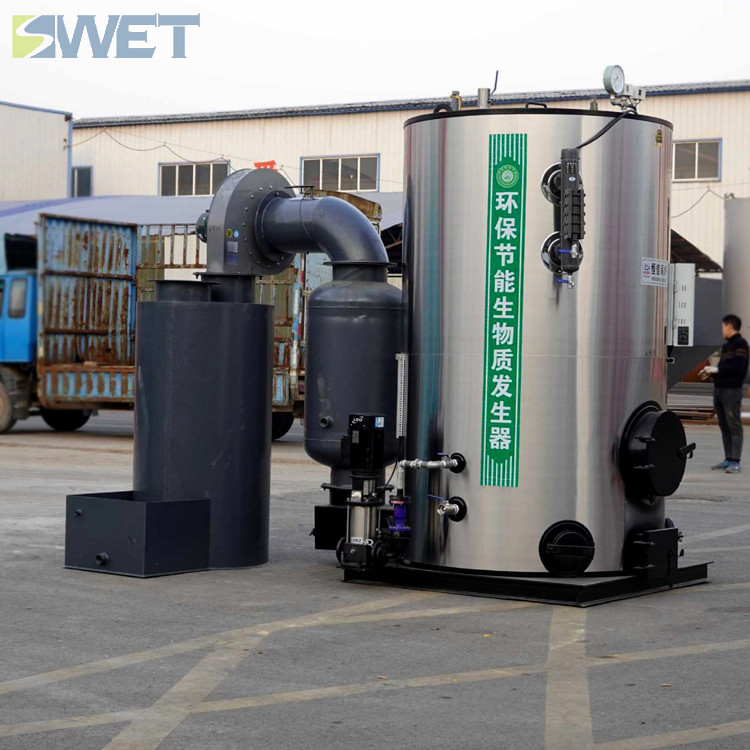

Vertical Biomass 500kg/Hr Steam Generator Boiler

Advantages:
1. Quick steam generation
Steam is quickly generated (3-5 minutes) after the boiler is started, and it reaches high temperature and pressure soon.
2. High thermal efficiency
(1) Vertical water pipe membrane wall structure,increase heat absorption area,reduce heat loss,save fuel.
(2) Equipped with energy saver, improve thermal efficiency.
3. High-end automatic control system
National standard electric control components , can realize the automatic operation stablely.
4. High security
(1) Very small internal water capacity, does not need annual inspection
(2) Equipped with safety interlock device, such as water shortage, overpressure, overtemperature, air leakage, motor overload and other safety protection functions.
5. High reliability
(1) The whole equipment is manufactured according to the standard of large steam boiler.
(2) Safety protection devices: pressure controller, pressure transmitter, safety valve, pressure gauge, water level automatic
control, etc.
6. Exquisite structure
Unique appearance design ,small and practical.

Technical parameters

Item			LHS0.5-SCI
Rated evaporation		Kg/h	500
Rated pressure		Mpa	0.1
Rated steam temperature		℃	100
Inlet water temperature		℃	20
Design thermal efficiency		%	83
Power supply		V	220
Fuel consumtiion		kg/h	97.5
Power consumption		kw	4
Applicable fuel		-	biomass
Approx dimensions	L	mm	1800
	W	mm	1700
	H	mm	2500
Approx shipping weight		Kg	1600

Application area

Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.

Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.

Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
