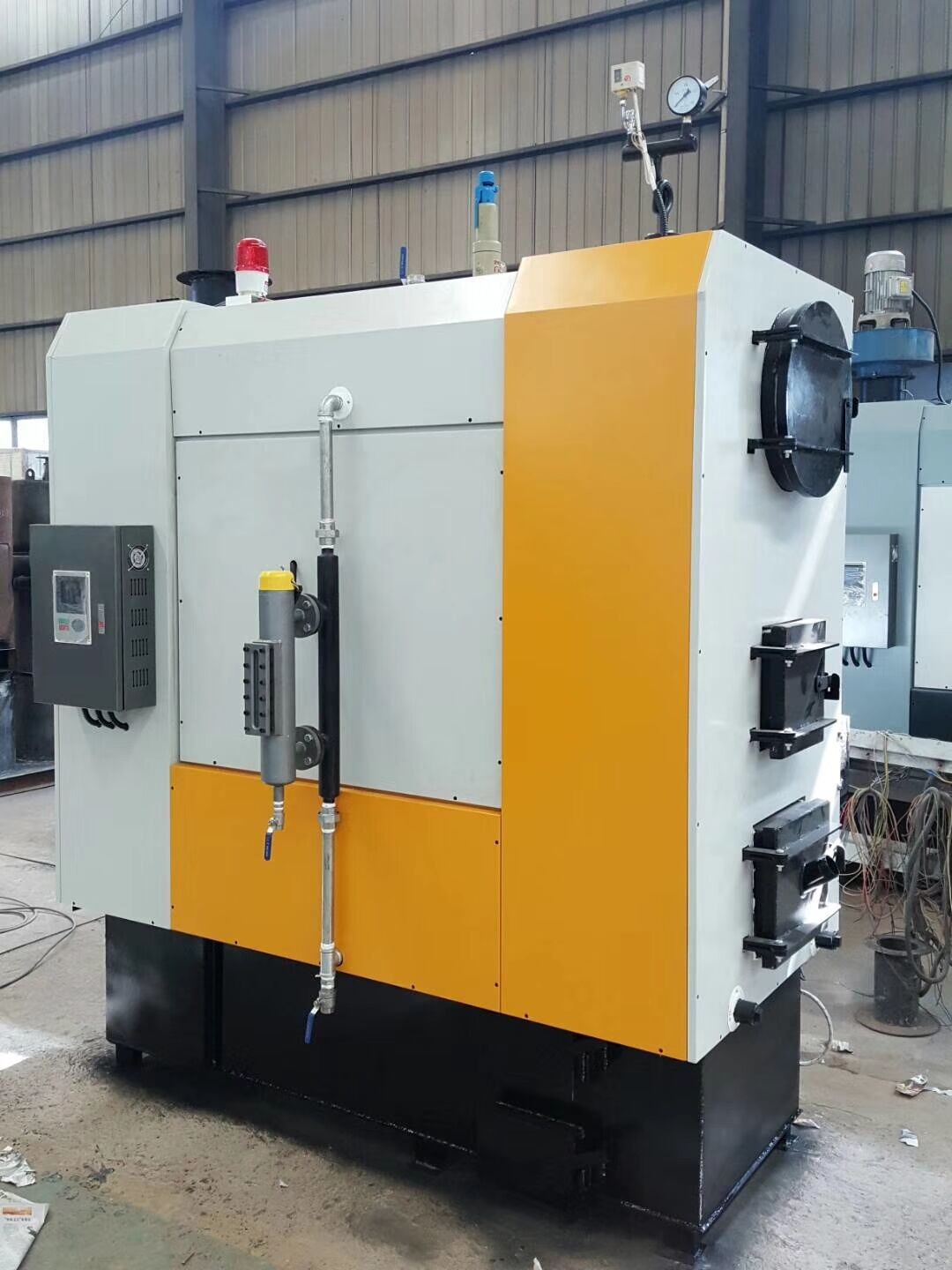

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
|Minimum Order Quantity :||1 SET||Price :||USD 7000-35000 /SET|
|Packaging Details :||Anti-collision plastic film||Delivery Time :||15DAYS|
|Payment Terms :||T/T||Supply Ability :||1200 SETS/ YEAR|
|Place of Origin:||CHINA||Brand Name:||SWET|
|Usage:||Industrial,Garment Manufacturer,Industrial/Power Station,Industry Or Power Station,Steam Outputing||Type:||Natural Circulation|
|Pressure:||Low Pressure,Low Pressure(1.25MPa)||Structure:||Water Tube|
|After-sales Service Provided:||No Overseas Service Provided||Warranty:||1 Year|
|Thermal Efficiency:||95%||Color:||Customer's Requirement|
|Application:||Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory||Working Pressure:||0.7---2.5Mpa|
|Material:||#20 Steel||Steam Temperature:||170-204℃|
Fully Automatic Wood Fired Steam Boiler,
2.5Mpa Wood Fired Steam Boiler,
#20 Steel Wood Fired Steam Boiler
1. Use the most suitable fuel equipment for biomass fuel combustion - Reciprocating grate
2. In the design structure, compared with the traditional boiler furnace space, and a very reasonable secondary air arrangement, it is beneficial to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.
3. The boiler has the characteristics of high thermal efficiency, no pollution, no emission, compact structure, etc. It is an alternative to electric, combustion and gas steam boilers.
4. The furnace body is generally made of a special seamless tube for boilers. Because the generator has high pressure and temperature during normal operation, the safety protection system makes it safe, reliable and efficient in long-term operation. The safety valve consists of a strong copper alloy, check valve and exhaust valve for three-stage protection.
1. Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
|Fuel Cost analysis(Take 100 kg per hour as an example)|
|Equipment selection||Steam volume||Energy consumption||Unit Price||Operating costs|
|Electrothermal steam boiler||100kg||72 kw/h||0.08 USD/kw||10.91 USD|
|Fuel steam boiler||100kg||7 kg/h||0.53 USD/kg||7.42 USD|
|Gas steam boiler||100kg||8 m³/h natural gas||0.34 USD/m³||5.45 USD|
|Biomass steam boiler||100kg||20 kg/h wood pellet||0.08 USD/kg||3.03 USD|

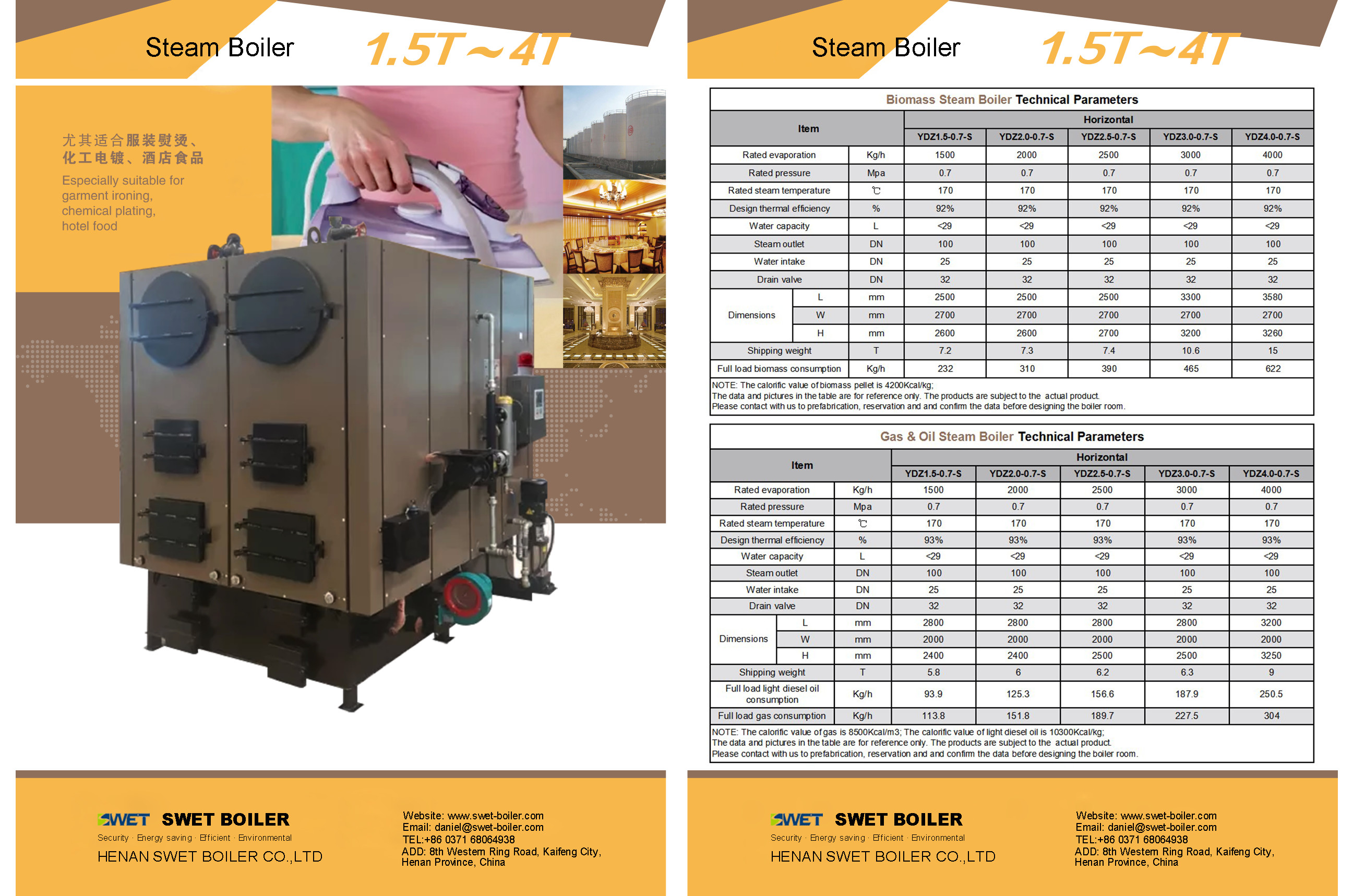

400kg vertical small wood fired steam boiler technical
Rated steam temper
|Feed water temperature||Design thermal efficiency||Water capacity||Steam outlet||water intake||Drain valve||Dimensions||Shipping weight||
Full load biomass consu
The 400kg vertical small wood fired steam boiler application area:
Application field description:
For washing ironing industry:dry
For chemical industry:Chemical and fertilizing
For phaemaceutical industry:Dry medicine
For bathing and heating:Heating water by generating steam
and so on...
our engineering case:
1.Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
2.It's the national designated A-class boiler and D1,D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.It holds level 1 boiler installation permit. National special equipment manufacturing license ,National specialequipment installation remould maintenance permits and so on.
The factory covers an area of 130,000 square meters, of which the construction area is 60,000 square meters. The company has strong technical force. The industrial boiler is the leading product of our company: high-efficiency low-emission energy-saving circulating fluidized bed boiler with various parameters, low-emission energy-saving gas boiler, each Grate industrial boilers, smelting industry and waste heat boilers in hazardous waste industries. Widely used in industrial production in all walks of life, self-supplied power stations, heating and heating.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Pre-sale technical guidance, including the host, auxiliary equipment selection and layout. Provide a full set of installation services, such as self-installation, can provide on-site technical guidance, including furnace wall masonry, cooking, commissioning and so on.
After the sale of professional and technical personnel to train the customer burner, until its complete grasp, independent operation. Usually 24 hours to accept telephone consultation, timely service.
