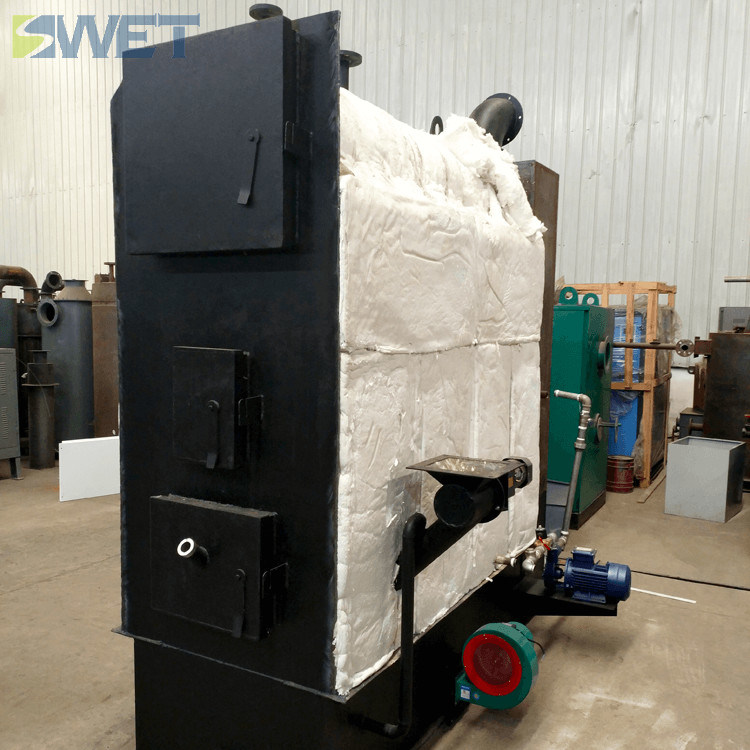

Automatic 0.7 Ton 700kg Wood Pellet Biomass Steam Generator
Automatic 0.7 Ton 700kg Wood Pellet Biomass Steam Generator Automatic 0.7 Ton 700kg Wood Pellet Biomass Steam Generator Automatic 0.7 Ton 700kg Wood Pellet Biomass Steam Generator
Contact Now

Automatic 0.7 Ton 700kg Wood Pellet Biomass Steam Generator

Minimum Order Quantity : 1 Price : 10500USD-15500USD
Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box. Delivery Time : 15-30 days after payment received
Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: YDZ0.7-0.7-S

Detail Information
Rated Evaporation: 700kg/h Rated Pressure: 0.7Mpa
Rated Steam Temperature: 171℃ Thermal Efficiency: 92%
Water Capacity: <29L Length: 2500mm
Width: 1700mm Height: 2600mm
The Calorific Value Of Biomass Particles: 4200Kcal/kg Full Load Biomass Comsumption: 108kg/h
Style: Horizontal Design Fuel: Biomass Fuel
Evaporation: 490kw Boiler Evaporation: 420000Kcal
Output: Steam
Highlight:

0.7 Ton Biomass Steam Generator

,

700kg Biomass Steam Generator

,

Biomass Wood Pellet Generator

Product Description

Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generatorEnvironmental protection and durability: gas steam boiler with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards; meticulous design, the use of table steel is much higher than peers Standard, the main body of gas steam boiler in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.

Sophisticated and beauty: gas steam boiler innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.
The gas steam boiler furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.
The gas steam boiler control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.jpg
Steam boiler technical parameters
Item Vertical
LSS0.1-0.7-S LSS0.15-0.7-S LSS0.2-0.7-S LSS0.3-0.7-S LSS0.4-0.7-S LSS0.5-0.7-S
Rated evaporation Kg/h 100 150 200 300 400 500
Rated pressure Mpa 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature ℃ 170 170 170 170 170 170
Design thermal efficiency % 87 87 87 87 87 87
Water capacity L <29 <29 <29 <29 <29 <29
Steam outlet DN 15 15 20 25 25 32
Water intake DN 15 15 15 15 15 25
Drain valve DN 20 20 25 25 25 25
Dimensions L mm 1500 1600 2000 2000 2100 2400
W mm 900 900 1000 1000 1000 1000
H mm 1800 1900 2000 2100 2100 2300
Shipping weight T 0.65 0.7 1 1.2 1.2 1.6
Full load biomass consumption Kg/h 16 24 32 49 65 82
Item Horizontal
YDZ0.3-0.7-S YDZ0.4-0.7-S YDZ0.5-0.7-S YDZ0.7-0.7-S YDZ1.0-0.7-S
Rated evaporation Kg/h 300 400 500 700 1000
Rated pressure Mpa 0.7 0.7 0.7 0.7 0.7
Rated steam temperature ℃ 170 170 170 170 170
Design thermal efficiency % 92 92 92 92 92
Water capacity L <29 <29 <29 <29 <29
Steam outlet DN 25 32 32 40 50
Water intake DN 25 25 25 25 25
Drain valve DN 25 25 25 25 25
Dimensions L mm 2400 2400 2500 2500 2500
W mm 1700 1700 1700 1700 1700
H mm 2100 2100 2500 2600 2600
Shipping weight T 3 3.2 4 4.1 4.3
Full load biomass consumption Kg/h 46 62 77 108 154



Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.png
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.png
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.png



Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
Steam boiler applicable scenario
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
Our engineering case
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.png
Company Information
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.png
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.
In 1987 China's first circulating fluidized bed boiler was born in our factory.
In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
OUR ENTERPRISE HONOR
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
OUR ADVANTAGES
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
The China’s first circular flow bed (CFB)boiler manufacturer.
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator.png
Packaging & Shipping
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
Some of our domestic customers
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Our Customer Visit
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
Any Question, Please contact us ,we serve you 24 hours !
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
Automatic 0.7 ton biomass boiler industrial management 700kg wood pellet generator
