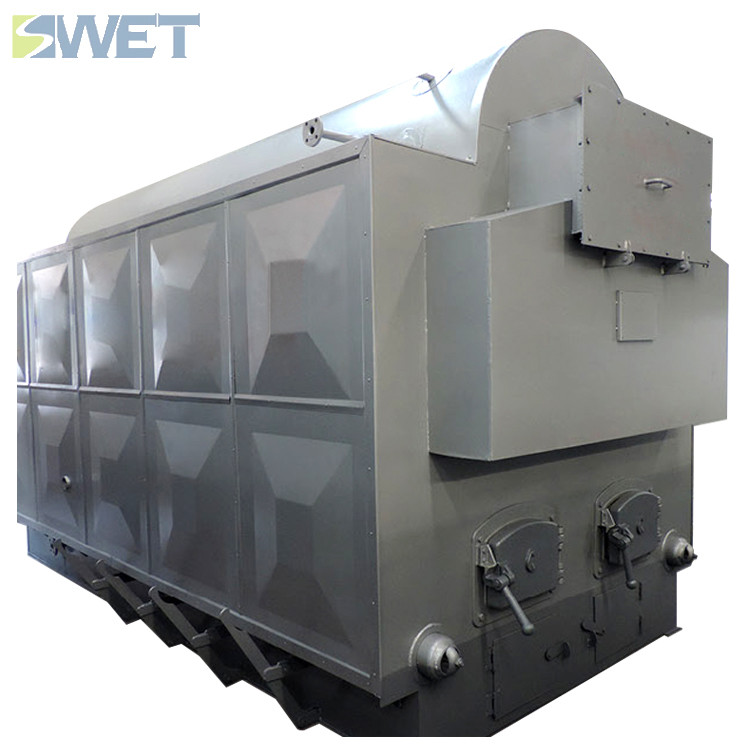

0.7Mpa Industrial 4 Ton 4000kg/H Biomass Pellet Boiler

Environmental protection and durability: gas steam boiler with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards; meticulous design, the use of table steel is much higher than peers Standard, the main body of gas steam boiler in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.

Sophisticated and beauty: gas steam boiler innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.

The gas steam boiler furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.

The gas steam boiler control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.

Steam boiler technical parameters

4 ton biomass steam boiler technical parameters
Rated evaporation		4000Kg/h
Product model		YDZ4.0-0.7-S
Rated pressure		0.7Mpa
Rated steam temperature		170℃
Design thermal efficiency		93%
Water capacity		<29L
Fuel consumption		622kg/h
Dimensions	L	3580mm
	W	2700mm
	H	3260mm
the calorific value of biomass particles		4200Kcal/kg

Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
