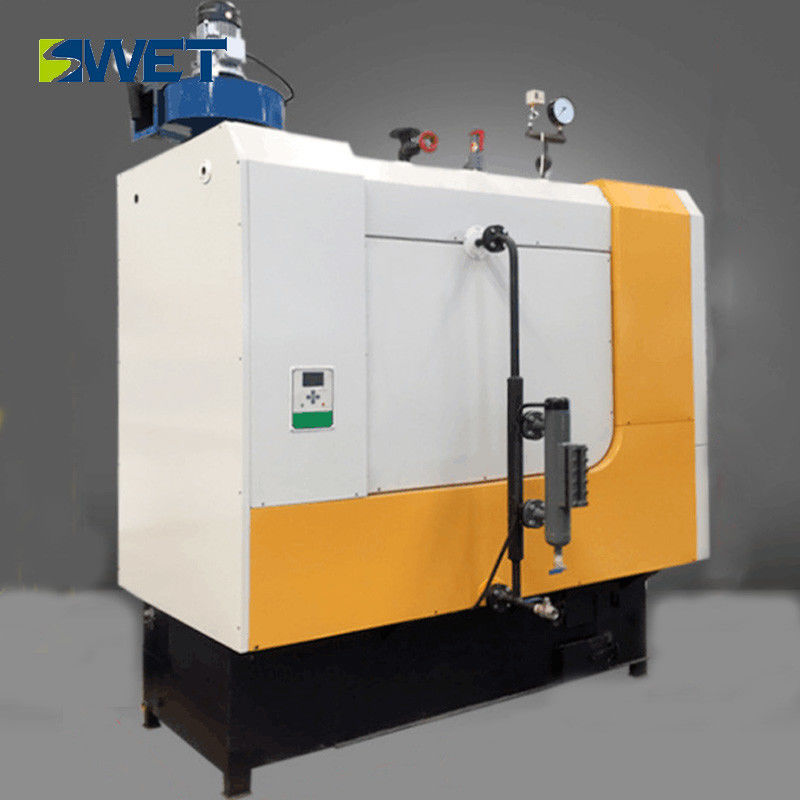

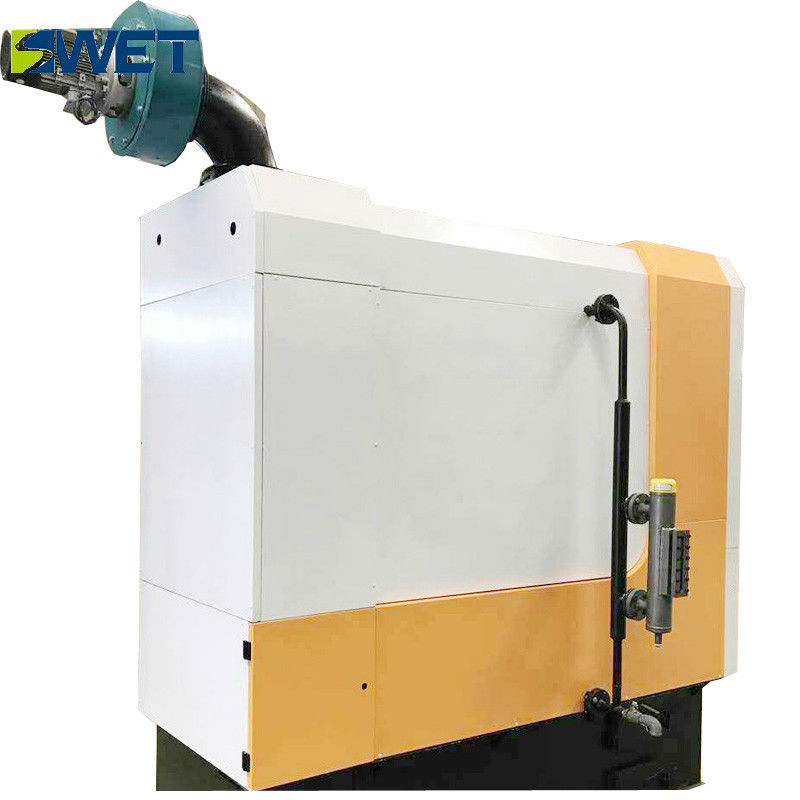

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
|
Product Details:
|
|
| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SWET |
| Certification: | ISO9001 |
| Model Number: | LHS0.15-0.7-S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | Negotiation |
| Packaging Details: | The steam boiler is covered with a waterproof film and the transport package is a wooden box. |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1500 Set/Sets Per Year |
|
Detail Information |
|||
| Rated Evaporation: | 150KG/h | Weight: | 0.7T |
|---|---|---|---|
| Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
| Thermal Efficiency: | 87% | Color: | Customer's Requirement |
| Design Fuel: | Biomass | Warranty: | 12 Months |
| Usage: | Industrial | Type: | Natural Circulation,Once Through /Auxiliary Cycle |
| Fuel: | Oil,Gas,Oil/Gas-fired | Style: | Horizontal,Vertical,horizontal And Vertical |
| Condition: | New | Output: | Steam |
| Pressure: | Low Pressure,High Pressure | Structure: | Fire Tube,Water Tube |
| High Light: | oil steam boiler,industrial electric steam boiler |
||
Product Description
Reliable performance 150kg industrial rice steam heating boiler
1.The safety protection function of the control system has multiple protections such as low water level, overheating and overpressure to ensure no safety hazards.
2.Safety control pressure gauges, safety valves and pressure switches are all made of high quality brands to ensure the quality and service life of the products.
The 150kg industrial rice steam heating boiler production process:
| Biomass steam boiler technical | |||||||||||||
| Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
| 600 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
| 1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
