100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The steam boiler is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
Place of Origin: | Henan China | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | YDZ0.3-0.7-S |
Detail Information |
|||
Rated Evaporation: | 300kg/h | Weight: | 2.6T |
---|---|---|---|
Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
Thermal Efficiency: | 93% | Color: | Customer's Requirement |
Design Fuel: | Biomass | Warranty: | 12months |
Highlight: | oil steam boiler,natural gas steam boiler |
Product Description

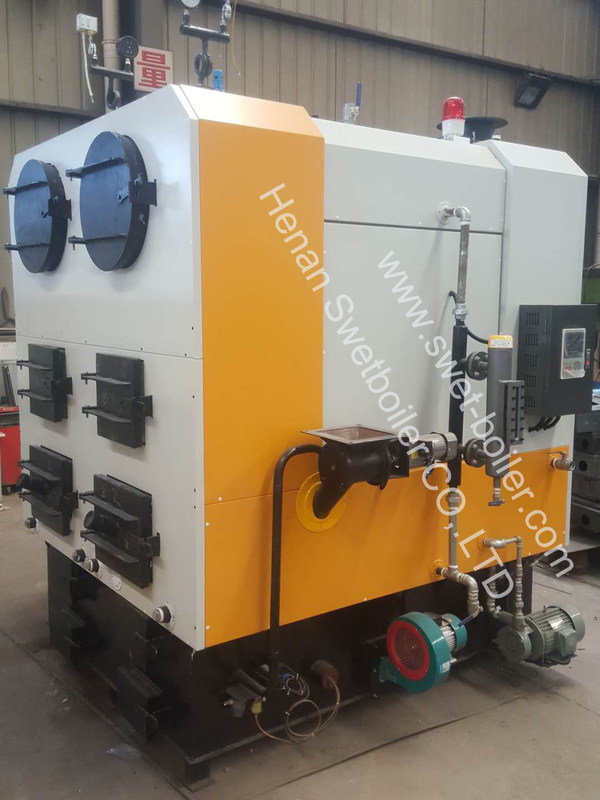

Quick loading 300kg automatic steam boiler for food industry
1. The boiler has the characteristics of high thermal efficiency, no pollution, no emission, compact structure, etc. It is an alternative to electric, combustion and gas steam boilers.
2. The furnace body is generally made of a special seamless pipe for boilers. Because the generator has high pressure and temperature during normal operation, the safety protection system makes it safe, reliable and efficient in long-term operation. The safety valve consists of a strong copper alloy, check valve and exhaust valve for three-stage protection.
1. Advanced steam boiler automatic controller, LCD screen, man-machine interface, users only need to set easily, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other fully automatic operation. The boiler has complete functions, complete protection, simple operation, safe and reliable, and self-diagnosis function. Once an abnormal phenomenon occurs in the boiler operation, the combustion is automatically interrupted, and an audible and visual alarm is issued.
2.The boiler has strong adaptability to load. The well-designed built-in steam separator device meets the requirements of users for higher quality steam. The furnace body facilitates the cleaning of the inside of the furnace, which makes maintenance and maintenance extremely convenient.
Biomass steam boiler technical | |||||||||||||
Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
L | W | H | |||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
600 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
Biomass steam boiler technical | |||||||||||||
Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
L | W | H | |||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
600 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
our engineering case:
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
