100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The300kg steam boiler bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
| Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | YDZ |
|
Detail Information |
|||

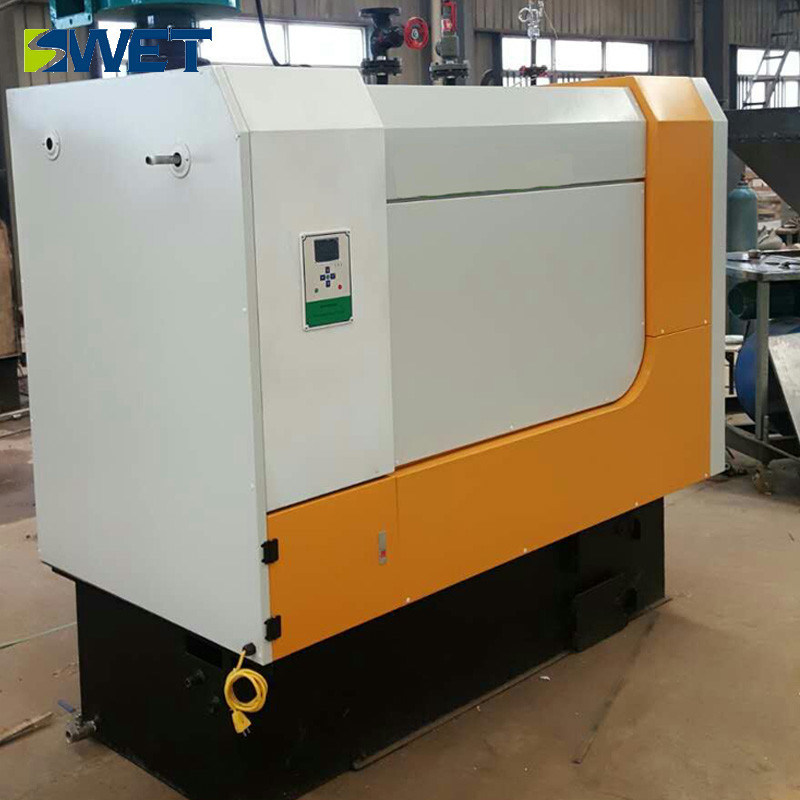

| Product Name: | Small New Type Good Quality Biomass Boiler For Industrial Production | Item: | YDZ-6010 Biomass Steam Boiler |
|---|---|---|---|
| Design Fuel: | Biomass | Color: | Customer's Requirement |
| Warranty: | 12 Months | Thermal Efficiency: | Over 92% |
| The Biggest Fuel Consumption(Nm3/h): | 70 | Rated Evaporation (kg/h): | 500kg |
| Rated Steam Temperature(℃): | 170 | Rated Steam Pressure(Mpa): | 0.7 |
| Size: | 3200x1500x2100mm | Weight: | 3300kg |
| High Light: | oil steam boiler,industrial electric steam boiler |
||
Product Description
1. Use the most suitable fuel equipment for biomass fuel combustion - reciprocating grate.
2.In the design structure, compared with the traditional boiler furnace space, and the arrangement of very reasonable secondary air, it is beneficial to instantaneously precipitate a large amount of volatile and full combustion when biomass fuel is burned. The control system uses high brightness.
3.The body of the furnace is generally made of boiler-specific seamless pipe. Since the generator has high pressure and temperature during normal operation, the safety protection system can make it safe, reliable and efficient in long-term operation. Safety valve made of strength copper alloy, check valve, exhaust valve, implements three-level protection.
1. Compact structure, small footprint, beautiful appearance, small investment in land engineering
2. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes, high working efficiency and wide application.
The new type good quality biomass boiler application area:
Appliction field description:
1. For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For chemical industry: activated carbon heating and disinfection, high temperature plating.
3.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
4.For hotel: Hotel drying clothes, towels, disinfection, cooking, bathing
and so on...
New chain type good quality biomass boiler cost analysis:
| Fuel Cost analysis(take 100kg per hour as an example) | ||||
| Equipment selection | Steam volume |
Energy consump tion |
Unit Price | Operating costs |
| Electrothermal steam boiler | 100kg | 72 kw/h | 0.08 USD/kw | 10.91 USD |
| Fuel steam boiler | 100kg | 7 kg/h | 0.53 USD/kg | 7.42 USD |
| Gas steam boiler | 100kg | 8 m³/h natural gas | 0.34 USD/m³ | 5.45 USD |
| Biomass steam generator | 100kg | 20 kg/h wood pellet | 0.08 USD/kg | 3.03 USD |
New chain type good quality biomass boiler technical parameters:
| New chain type good quality biomass boiler technical | |||||||||||||
| Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 32 | 15 | 25 | 2300 | 1600 | 2100 | 2.6 | 46.1 |
| 400 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2350 | 1750 | 2200 | 3 | 61.5 |
| 500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2100 | 2200 | 2500 | 4.1 | 76.8 |
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
