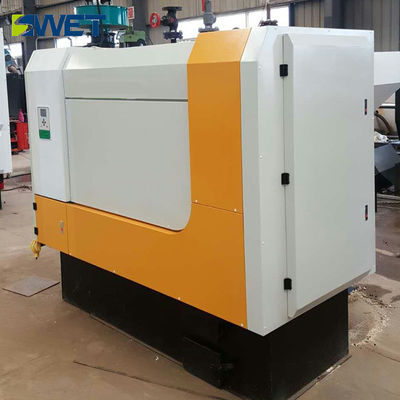

High quality energy saving industrial natural gas steam boiler for factory

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : The300kg steam boiler bady with plywood packaging. Delivery Time : 10 WORKING DAY
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 SETS PER YEAR
Place of Origin: HENAN,CHINA Brand Name: SWET
Certification: ISO9001 Model Number: LSS

Detail Information

Product Name: High Quality Energy Saving Industrial Natural Gas Steam Boiler For Factory Item: YDZ-gas Steam Boiler
Design Fuel: Gas/oil Color: Customer's Requirement
Warranty: 12 Months Thermal Efficiency: Over 92%
The Biggest Fuel Consumption(Nm3/h): 46.9 Rated Evaporation (kg/h): 300kg
Rated Steam Temperature(℃): 170 Rated Steam Pressure(Mpa): 0.7
Size: 1700x1600x2300mm Weight: 1300kg
Burner: Italy Riello Usage: Industrial,Garment Manufacturer
Type: Natural Circulation,Other,Once Through /Auxiliary Cycle,Natural Circulation/Once Through Fuel: Oil,Gas,Oil/Gas-fired
Style: Horizontal,Vertical,horizontal And Vertical Condition: New
Output: Steam Pressure: Low Pressure,High Pressure,Low Pressure(1.25MPa)
Structure: Fire Tube,Water Tube,water-fire Tube Application: Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory
Working Pressure: 0.7---2.5Mpa,low Pressure/high Pressure Steam Temperature: 170-204℃,194 ℃,≤194℃
High Light:

natural gas steam boiler

,

industrial electric steam boiler

Product Description

High quality energy saving industrial natural gas steam boiler for factory



1.The 300 kg automatic gas steam generator breaks the conventional constraint and increases the steam production per hour to 300 kg. The structure is simple, one-button operation and segmented control. Even if the first failure occurs, the other segments can work normally. Designed with energy saver, it can recover waste heat from exhaust gas, improve thermal efficiency and reduce operating cost.



2.High efficiency and energy saving: It adopts vertical three-return design, high gas production speed, low cost of use, 30-70% energy saving than fuel (gas) and electricity; five-minute steam production, saving nearly daily compared with traditional boiler Half an hour of fuel costs.



3.It adopts gasification and combustion integrated rotary cutting air distribution design to form fire tornado gasification combustion with a burning rate of over 95%. It adopts advanced glass fiber silk cotton multi-layer insulation, small heat loss, low energy consumption of built-in waste heat recovery system. High thermal efficiency.



full automatic control 300kg / 150kg/h oil gas steam boiler



Gas steam boiler technical parameters



Gas steam generator technical parameter
Rated evaporati on Rated pressure Rated steam temperat ure Feed water temperat ure Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er Dimensions Shippin g weight
                      L W H
Kg/h Mpa % L DN DN DN Kpa DN mm mm mm T
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.5
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.6
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8
500 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2100/2500 3
600 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2500 4.2



300kg boiler.jpg



Please to confirm 2 points as fellow:



1.boiler capacity: according to heat equipment's whole using quantity of heating ,we should considerate the max using quantity of heating and low using quantity of heating , and left fixed allowance , to confirm the boiler rated evaporation capacity(t/h)



2.boiler pressure: according to using heating equipment's max working temperature and enough considerate steam transportation loss , to make sure saturated vapor, and to choose boiler pressure grade .





300kg diesel heating hot water boiler core advantages:



1. Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
2. Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable
3. Fully automatic control system with automatic high and low water level protection, saving manpower.



High quality energy saving industrial natural gas steam boiler for factory



oil gas boiler



1. For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.



2.For chemical industry: activated carbon heating and disinfection, high temperature plating.



3.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.



4.For biological equipment industry: sterilizer, sterilizer, school laboratory, thermal test



and so on...



Reliable performance 300kg/h induction diesel heating boiler



FAQ



Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.





Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Q:How is the warranty term?

A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.



Our Services



Pre-sale service:

1.24 hours phone,email,trademanager online services;

2. We will provide you with high-quality technical solutions, product design instructions.

3.We welcome you to visit our boiler factory to have a look and check;



After-sale service:

  1.we will delivery the machine as soon as possible according to your requirement,within 20days;

  2.We will send rich practiced experience engineers to you to install and test the machine and train

  3.We will give you one year guarantee time after the machine can run well;
