100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 SET | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The 600kg steam boiler bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | LSS-6010 |
Detail Information |
|||

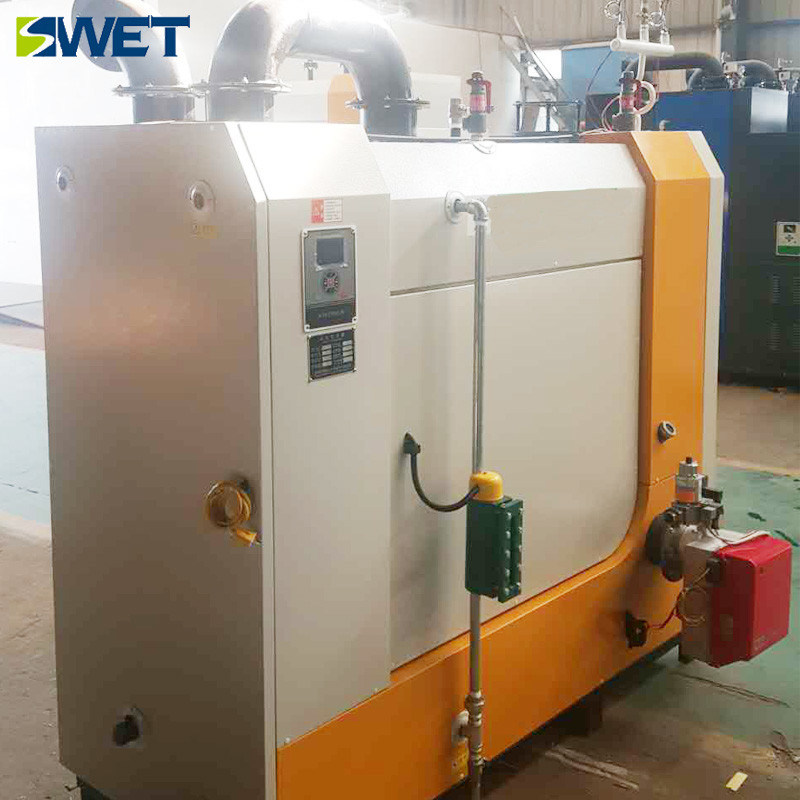

Product Name: | 600kg Gas Steam Boiler | Item: | YDZ-6010 Gas Steam Boiler |
---|---|---|---|
Design Fuel: | Gas/oil | Color: | Customer's Requirement |
Warranty: | 12 Months | Thermal Efficiency: | Over 92% |
The Biggest Fuel Consumption(Nm3/h): | 46.9 | Rated Evaporation (kg/h): | 600 |
Rated Steam Temperature(℃): | 170 | Rated Steam Pressure(Mpa): | 0.7 |
Size: | 3200x1500x2500mm | Weight: | 4200kg |
Burner: | Italy Riello | ||
Highlight: | natural gas steam boiler,industrial electric steam boiler |
Product Description
1.Safe and reliable: gas steam generator water capacity of less than 30L, exempt from
examination and approval, the boiler using automatic microcomputer control system, equipment, automatic operation control, voltage display at a glance, with overpressure and water interlock protection, The steam generator feed system uses the design concept of the turntable oblique feed to completely eliminate the phenomenon that the biomass steam generator burns the fuel back to the fuel, and truly achieves the double safety of the biomass steam generator body control safety and the combustion system control safety .
2.Sophisticated and beauty: gas steam generator innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.
3.Efficient energy-saving: gas steam boiler generator using the most advanced micro-positive pressure combustion, a unique primary air heating, secondary air combustion configuration, making the combustion completely, the boiler body multi-return layout, compact structure, heating area sufficient, The furnace is very fast, 5 minutes pressure up to 0.7MPa; furnace selection of new refractories, enhanced combustion and can extend the life of the body, is the latest environmentally friendly energy-saving products.
Gas steam generator technical parameters
Gas steam generator technical parameter | |||||||||||||||
Rated evaporati on |
Rated pres sure |
Rated steam temp erat ure |
Feed water temp erat ure |
Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er |
Dime nsions |
Shippin g weight | Full load biomass consuption | ||
L | W | H | |||||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |
500 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 |
2100/ 2500 |
3 | 37.9(NG) |
600 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2500 | 4.2 | 46.9(NG) |
