100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 15 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1500 Set/Sets Per Year |
Place of Origin: | HENAN CHINA | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | YDZ-7009 |
Detail Information |
|||
Rated Evaporation: | 1TPH | Steam Pressure: | 0.7Mpa |
---|---|---|---|
Rated Steam Temperature: | 170℃ | Thermal Efficiency: | 93% |
Color: | Customer's Requirement | Design Fuel: | Biomass |
Warranty: | 12 Months | Weight: | 6000kg |
Dimension: | 3000X2300X2500mm | Material: | Boiler Steel |
Highlight: | natural gas steam boiler,industrial electric steam boiler |
Product Description
The biomass steam generator description
1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.
2. Efficient energy-saving: biomass steam generator using the most advanced micro-positive pressure combustion, a unique primary air heating, secondary air combustion configuration, making the combustion completely, the boiler body multi-return layout, compact structure, heating area sufficient, The furnace is very fast, 5 minutes pressure up to 0.7MPa
3. The steam generator high quality security controls pressure gauge, safety valve and pressure switch ensure product high quality and a long service life.
4. The steam generator Easy installation:no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.
The biomass steam generator technical parameters
Biomass steam generator technical | |||||||||||||
Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
L | W | H | |||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 26.5 | 15 | 15 | 20 | 1600 | 900 | 1750 | 0.6 | 13.6 |
100 | 0.7 | 170℃ | 20℃ | 90% | 26.8 | 15 | 15 | 20 | 1600 | 900 | 1900 | 0.65 | 16.4 |
150 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 1650 | 900 | 1900 | 0.7 | 24.6 |
200 | 0.7 | 170℃ | 20℃ | 90% | 27 | 20 | 15 | 25 | 2150 | 1000 | 2400 | 1.2 | 32.8 |
300 | 0.7 | 170℃ | 20℃ | 93% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 46.1 |
400 | 0.7 | 170℃ | 20℃ | 93% | 28.7 | 32 | 15 | 25 | 2350 | 1750 | 2200 | 3 | 61.5 |
500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 1525 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
600 | 0.7 | 170℃ | 20℃ | 93% | 29.5 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.3 | 80 |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
1TPH biomass steam generator production process:

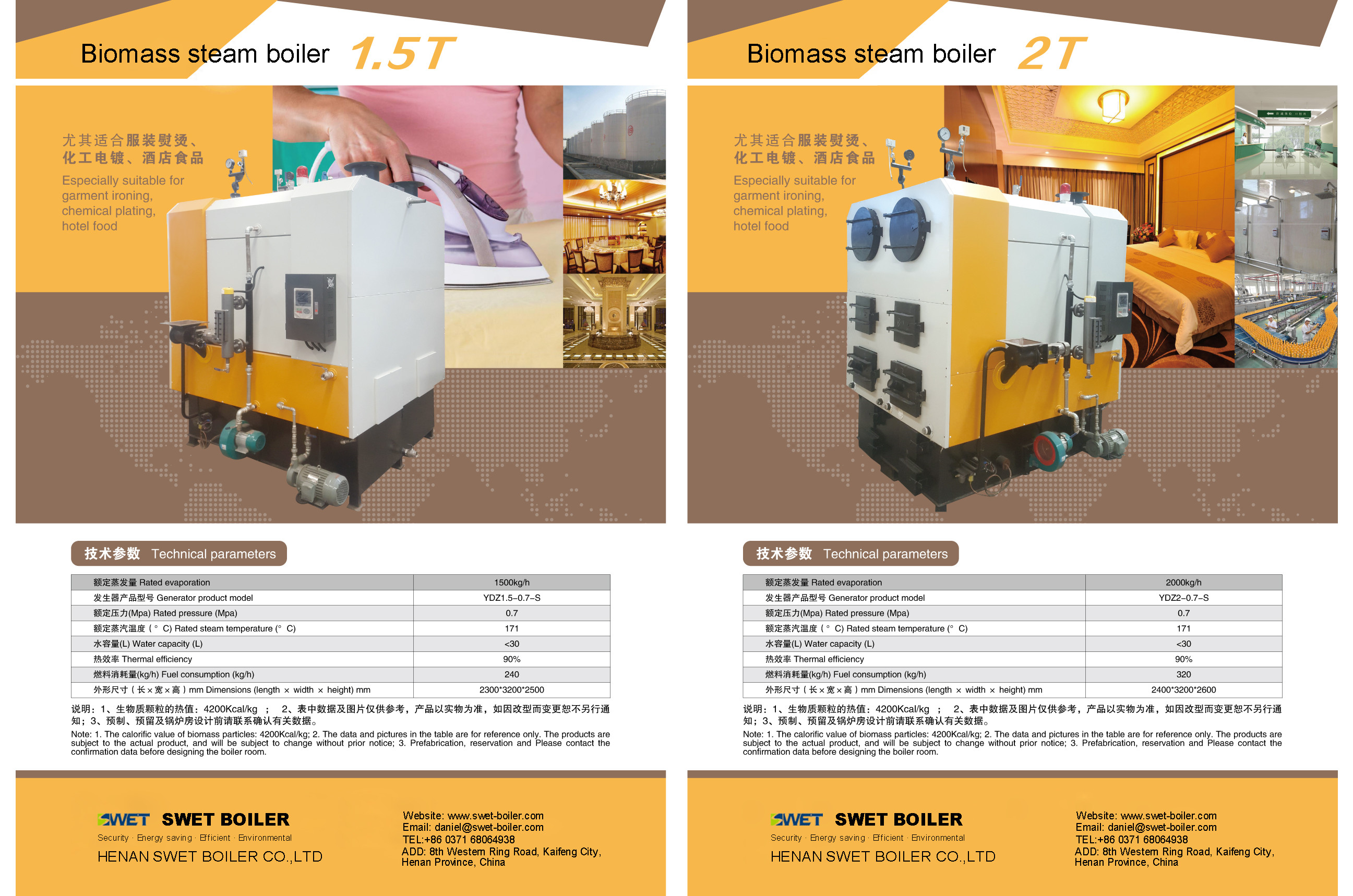

1TPH biomass steam generator detail picture :
