Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure
Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure
Contact Now

Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : packed in wooden cases . Delivery Time : Within 30 days after payment
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1500 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: WNS0.3-Q

Detail Information
Rated Thermal Power: 300kg/hr Working Pressure: 7 Bar
Stem Temperature: 170℃ Fuel: Natural Gas
Type: Steam Boiler Warranty: 12 Months
High Light:

water softener machine

,

oil boiler burner

Product Description

Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure

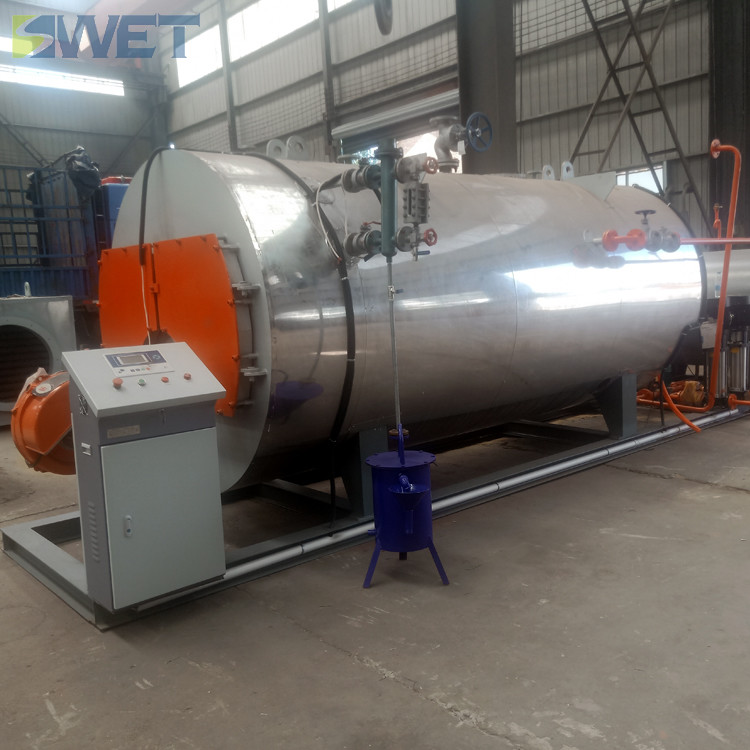

Our WNS steam boiler features a state-of-the-art three-return full wet back construction with large steam space and good steam quality.
We equipped the WNS steam boiler with a reasonable rear view device to facilitate the observation of the flame combustion in the furnace.
The heating area of our WNS steam boiler is designed and configured according to high standards to fully absorb the effective heat. The exhaust gas temperature is low, the heat loos is small, and the outout is sufficient and the efficienty is high.
Technical parameters
Model WNS0.3-0.7-Q
Rated evaporation (t/h) 0.3
Rated working pressure (Mpa) 0.7
Rated steam temperature (°C) 170
Design thermal efficiency (%) 92.32
Rated gas consumption (Nm³/h) 20.7
Power consumption (KW) 0.93
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 165.5
Approx shipping weight (kg) 1842
Approx shipping size (mm) 2460*1160*1600
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Application
Textile industry: shrinking machine, dryer, washing machine, dehydration machine, printing, ironing machine and other equipment.
Food machinery industry: steamer, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry,hotels, schools, enterprises and other hot water supply and other industries.
Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure
Production Process
Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure
Packaging & Shipping
Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure
Company Information
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland. In 1987 China's first circulating fluidized bed boiler was born in our factory. In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
China 's top ten boiler manufacturing enterprises. Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
Other Products
Fire Tube Steam Boiler for Hotel WNS Boiler 0.3 Ton Industrial Natural Circulation Low Pressure
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
