Home ProductsDiesel Steam BoilerSaturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry

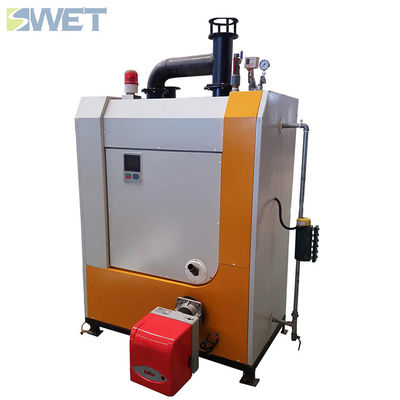

Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry
Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry
Contact Now

Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: YDZ0.3-1.0-YQ

Detail Information
Rated Evaporation: 210KW Rated Pressure: 10 Bar
Rated Steam Temperature: 183℃ Thermal Efficiency: 93%
Fuel Consumption: 19kg/h
High Light:

300Kg/h Diesel Steam Boiler

,

Packaging Machines Diesel Steam Boiler

,

Shrinking Machine Diesel Steam Boiler

Product Description

Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry

The burner releases heat, which is first absorbed by the water wall by radiative heat transfer. The water of the water wall boils and vaporizes, and a large amount of steam enters the steam drum for steam and water separation.
The separated saturated steam enters the superheater and continues to absorb by convection. The flue gas heat at the top of the furnace and the horizontal flue, the tail flue, and the superheated steam reaches the required operating temperature.
Can be used for civilian or industrial equipment ,provide hot water, dual-use equipment according to the requirements of production and pressure hot water equipment, and atmospheric water vapor.
Full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient. Built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
Technical parameters
Item YDZ0.3-1.0-YQ
Rated evaporation Kg/h 300
Rated pressure Mpa 1.0
Rated steam temperature ℃ 183
Design thermal efficiency % 93
Water capacity L <29
Steam outlet DN 50
Water intake DN 25
Drain valve DN 25
Approx dimensions L mm 2400
W mm 1500
H mm 1600
Approx shipping weight T 23.6
Full oil consumption kg/h 19
Application area
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry
Company Information
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry.png
Packaging & Shipping
Saturated 300Kg/H Diesel Steam Boiler 210KW For Textile Industry
