Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator

China Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator supplier
Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator supplier Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator supplier Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator supplier

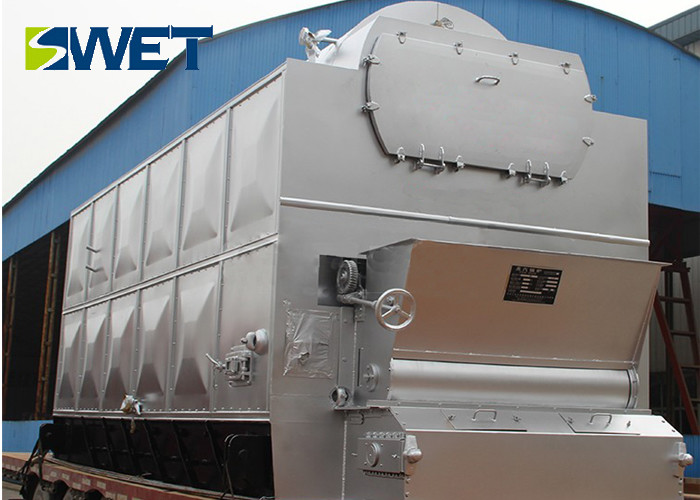

Large Image :  Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL15-1.6-T-0011

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 15t/h Working Pressure: 1.6MPa
Exhaust Temperature: 150℃ Color: Base On Needs
Steam Temperature: 204℃ Design Fuel: Straw
Boiler Dimensions: 14000x4174x614mm Water Supply Temperature: 104℃

15t / h Horizontal Coal Fried Chain Grate Steam Boiler For Machinery Industry



Product Description



1. Biomass steam boilers are packaged or assembled quickly.



2. The front end of the boiler body is arranged around the upper part of the water wall and the lower part of the drum is connected with the header to form a combustion chamber so as to absorb radiant heat from the furnace and a dense convection tube bundle is arranged at the rear end between the upper and lower drums; Gas after the second return laterally scouring convection heating surface lead to a separate arrangement of the economizer, and finally into the precipitator discharged through the chimney.



3. Biomass steam boiler to draw the advantages of fast boilers, compact structure, the boiler room is a single layout, easy installation site, short cycle, low cost, easy operation and other advantages. This series of steam boilers for industrial and domestic steam, the corresponding capacity of the water heater for industrial and residential heating.



Performance Characteristics



1. SZL series boiler is a horizontal double-barrel longitudinal chain type boiler drain steam and hot water boiler designed by our technicians according to domestic and foreign advanced technology and experience.



2. The series of products technology, performance, environmental indicators have reached the international advanced level, for the boiler industry's leading product.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104



150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800



Chain Grate Biomass Fired Steam Boiler , 15t / H Horizontal Biomass Generator
