10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature

China 10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature supplier
10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature supplier 10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature supplier 10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature supplier 10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature supplier

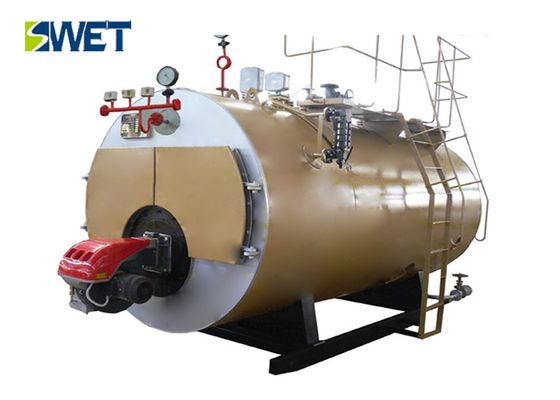

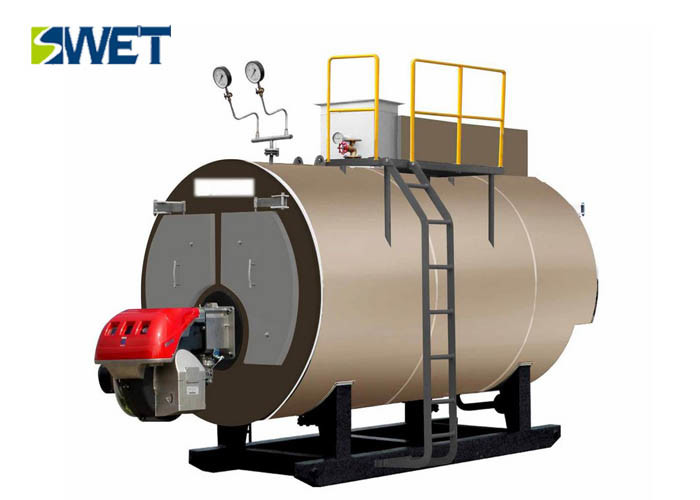

Large Image :  10 Ton Energy Efficient Industrial Gas Fired Steam Boilers 20 ℃ Feed Water Temperature

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: WNS10-1.25-Y、Q-3020

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 10 T / H Rated Working Pressure: 1.25 MPa
Rated Steam Temperature: 193.3 ℃ Feed Water Temperature: 20 ℃
Keywords: Gas Steam Boiler Model: WNS10-1.25-Y、Q-3020

10 Ton Energy Efficient Oil Gas Fired Steam Boiler With Automatic



Product description



1. The series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure



2. Using low-profile wave furnace, heated surface was symmetrical arrangement



3. Shell and tube plate, furnace tube and wet smoke tube panels are all butt welds



4. In order to suppress the formation of NOx, a lower furnace volume heat load is used.



5. Gas steam oiler front and rear smoke boxes are equipped with left and right symmetrical smoke box door, easy to check and clean the pipe



Product advantages



1. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise.



2.  Gas steam boiler automation instrumentation and auxiliary equipment is reasonable, advanced and    reliable





Specification



WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 409.33 96.48 5160x2410x3015
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output



10 Ton Energy Efficient  Oil Gas Fired Steam Boiler With Automatic



10 Ton Energy Efficient  Oil Gas Fired Steam Boiler With Automatic



CASE



1. 3 sets gas fired steam boiler for Canada textile mill,10t/h steam capacityand 1.6Mpa working pressure



 2. WNS series Gas Fired Condensing Steam Boiler For Mongolia food packaging company
steam capacity: 6t/h, working



10 Ton Energy Efficient  Oil Gas Fired Steam Boiler With Automatic
