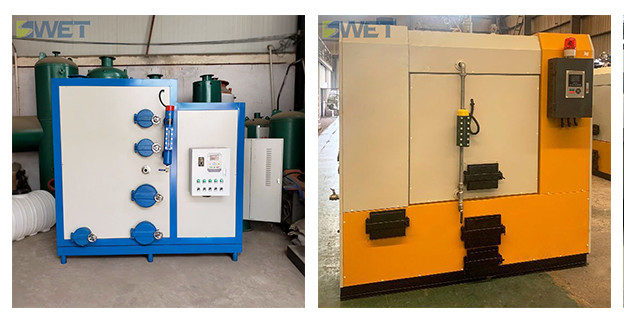

Wood chip steam generator firewood steam boiler 250 kg for textile industry

Minimum Order Quantity : 1 Set/Sets Price : 9700USD
Packaging Details : The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements Delivery Time : 25-30 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1000 Set/Sets Per Year
Place of Origin: Henan Province, China Brand Name: SWET
Certification: ISO9001 Model Number: YDZ0.25-0.7-S

Detail Information

Rated Evaporation: 150000kcal Rated Pressure: 0.7Mpa
Rated Steam Temperature: 170℃ Thermal Efficiency: 90%
Fuel Consumption: 45kg/h Approx Dimensions: 2400*1700*2100mm

Product Description

Wood chip steam generator firewood steam boiler 250 kg for textile industry

The boiler equipped with multiple interlocking protection devices such as safety valve, pressure controller and water level control protector, it is absolutely safe and reliable.
Wood chip steam generator firewood steam boiler 250 kg for textile industry
Technical parameters
Fuel Cost analysis(Take 100 kg per hour as an example)

Equipment selection

Steam volume

Energy consumption

Unit Price

Operating costs

Electrothermal steam boiler

100kg

72 kw/h

0.08 USD/kw

10.91 USD

Fuel steam boiler

100kg

7 kg/h

0.53 USD/kg

7.42 USD

Gas steam boiler

100kg

8 m³/h natural gas

0.34 USD/m³

5.45 USD

Biomass steam boiler

100kg

20 kg/h wood pellet

0.08 USD/kg

3.03 USD

Biomass steam boiler specifications

Rated evaporation

Rated pressure

Rated steam tempe

rature

Feed water temper

ature

Design thermal efficiency

Water capacity

Steam outlet

water intake

Drain valve

Dimensions

Shipping weight

Full load biomass consumption

L

W

H

Kg/h

Mpa

%

L

DN

DN

DN

mm

mm

mm

T

kg/h

250

0.7

170

20

90%

<29

25

25

25

2400

1700

2100

2.9

45

The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.
The production process of our boiler
Wood chip steam generator firewood steam boiler 250 kg for textile industry
Wood chip steam generator firewood steam boiler 250 kg for textile industry
Wood chip steam generator firewood steam boiler 250 kg for textile industry
OUR FACTORY
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
Wood chip steam generator firewood steam boiler 250 kg for textile industry
FAQ
Q: How many years is the boiler’s life?
A: The boiler is designed for at least 20 years life.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: How is the warranty term?
A: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Q: How to choose a boiler model?
A: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage.
Q: What about the production?
A: Produce time is 30 days.
Q: How can I pay you?

A: T/T is very well used. We also accept other ways, depending on the circumstances.

1) T/T with 30% deposit, when we sign the contract and the rest 70% should be paid by T/T before goods delivery from us. The payment accepted by our company's bank account are USD, RMB and Euro.
2) Alibaba Trade Assurance as the payment term with 30% deposit and 70% before shipment. The payment accepted by our Alibaba Trade Assurance account only for USD.
