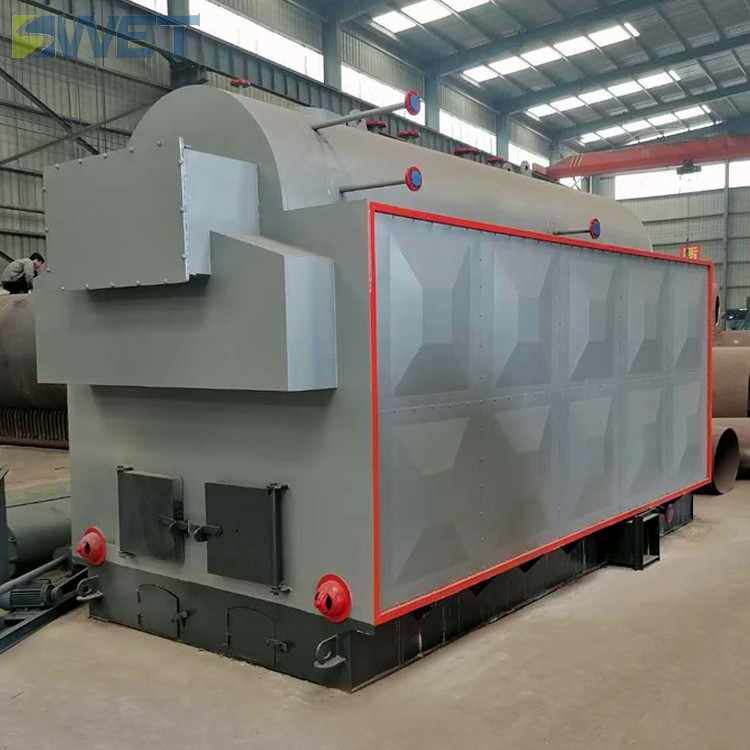

Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry
Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry
Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry
Contact Now

Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : Standard Packaging Delivery Time : Shipped in 15 days after payment
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash or on the basis of mutual agreement Supply Ability : 200 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: DZH2.0-SCI

Detail Information
Rated Thermal Power: 2.0t/h Rated Steam Pressure: 1.25Mpa
Rated Steam Temperature: 190 Degrees C Design Thermal Effidciency: More Than 83%
Fuel: Wood, Biomass Ouput: Steam

Product Description

Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry

Our biomass steam boiler adopts advanced gasification combustion technology, which makes fuel combustion more efficient, energy-saving and environmentally friendly.
This series of our steam boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.
Technical Parameters
Model DZH2.0-1.0-SCI
Rated thermal power(t/h) 2.0
Rated working pressure (Mpa) 1.25
Rated steam temperature (°C) 190
Inlet water temperature (°C) 20
Design thermal efficiency (%) more than 83
Fuel consumption (Kg/h) 360
Fuel Wood, Biomass, Coal
Output steam
Approx weight (T) 17.74
Approx shipping size (mm) 5140*2400*3200
Process technology
Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service. We have a complete quality assurance system, and also well equipped advanced detectors in China.
We hold level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry
Other Products
Biomass Boiler Woodchip Pellet 2 Ton Steam Boiler For Garment Industry
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
