Cng Fired Steam Industrial Food Boiler 600kg 500kg Wood Chip

Minimum Order Quantity : 1 SET Price : USD 7000-35000 /SET
Packaging Details : Anti-collision plastic film Delivery Time : 15DAYS
Place of Origin: CHINA Brand Name: SWET
Certification: ISO9001 Model Number: YDZ

Detail Information

Burner: Automatic Oil/Gas Burner Capacity: 300kg/h To 3000kg/h
Control System: PLC Control Design Efficiency: ≥80%
Design Structure: Water Tube Emission Standard: GB1576-2001, GB/T16507-1996
Fuel: Coal, Oil, Gas, Biomass, Electric Installation: Engineers Available Overseas
Pressure: 0.7-1.2Mpa Temperature: 170-225℃
Thermal Efficiency: ≥90% Type: Industrial Steam Boiler
Warranty: 1 Year
High Light:

Fired Steam Cng Food Boiler


Industrial Food Boiler 600kg


500kg Wood Chip Boiler

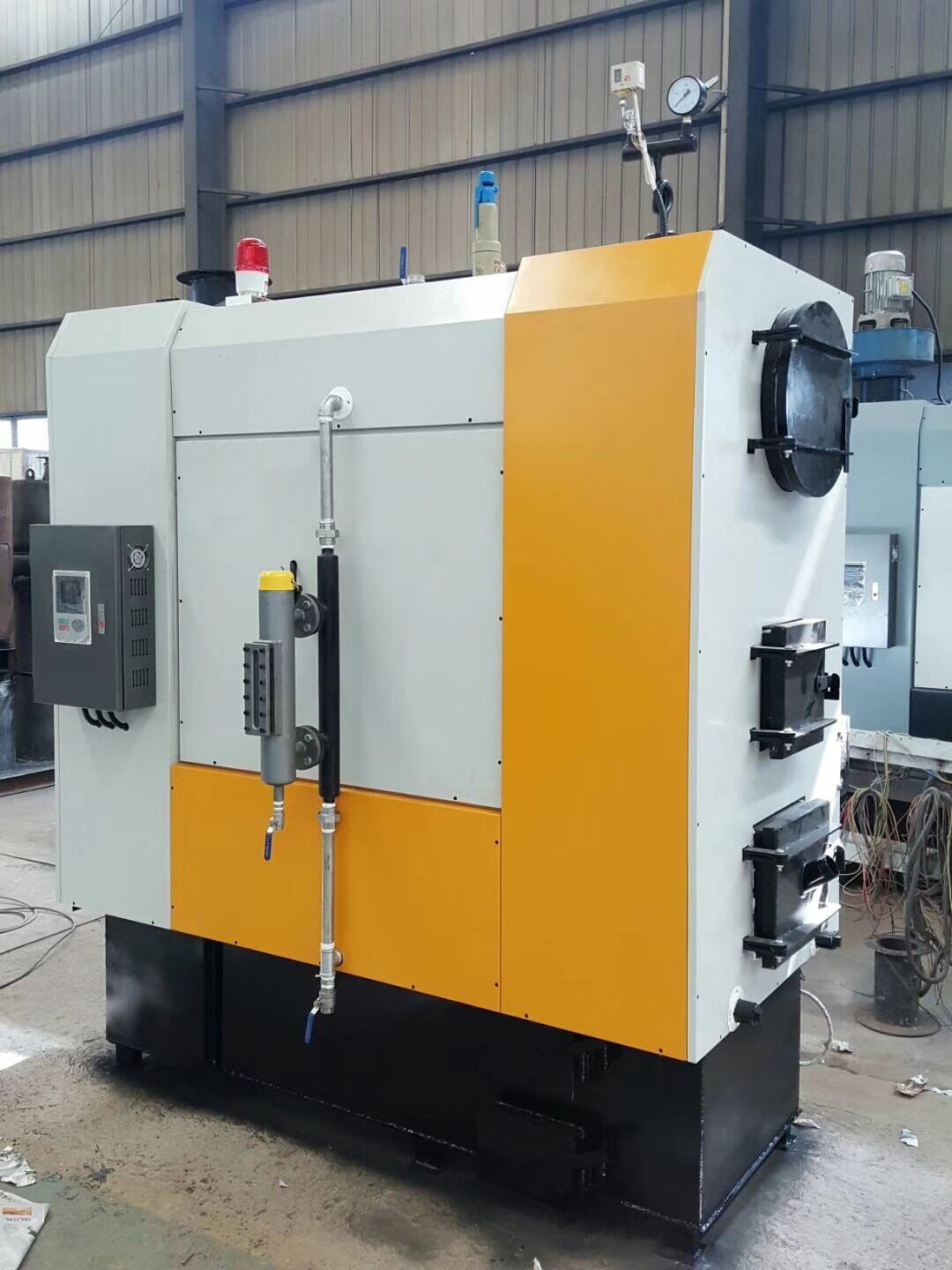

Product Description

600kg wood chip cng fired steam industrial food boiler

Product Description

1. Use the most suitable fuel equipment for biomass fuel combustion - Reciprocating grate

2. In the design structure, compared with the traditional boiler furnace space, and a very reasonable secondary air arrangement, it is beneficial to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.

3. The boiler has the characteristics of high thermal efficiency, no pollution, no emission, compact structure, etc. It is an alternative to electric, combustion and gas steam boilers.

4. The furnace body is generally made of a special seamless tube for boilers. Because the generator has high pressure and temperature during normal operation, the safety protection system makes it safe, reliable and efficient in long-term operation. The safety valve consists of a strong copper alloy, check valve and exhaust valve for three-stage protection.

600kg 500kg wood chip cng fired steam industrial food boiler


600kg wood chip steam industrial food boiler core advantages:


1. Compact structure, small footprint, beautiful appearance, small investment in land engineering

2. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes, high working efficiency and wide application

3. Energy-saving, scientific design, high thermal energy, more than 50% energy saving than traditional boilers;

4. Safety, the product is over temperature, ignition, water cut, gas cut, all controlled by microcomputer, very safe



The 600kg wood chip steam industrial food boiler

production process:600kg 500kg wood chip cng fired steam industrial food boiler

send inquiry and chat with us
product parameters


600kg wood chip steam industrial food boiler technical parameters:


Fuel Cost analysis(Take 100 kg per hour as an example)
Equipment selection Steam volume Energy consumption Unit Price Operating costs
Electrothermal steam boiler 100kg 72 kw/h 0.08 USD/kw 10.91 USD
Fuel steam boiler 100kg 7 kg/h 0.53 USD/kg 7.42 USD
Gas steam boiler 100kg 8 m³/h natural gas 0.34 USD/m³ 5.45 USD
Biomass steam boiler 100kg 20 kg/h wood pellet 0.08 USD/kg 3.03 USD


600kg wood chip steam industrial food boiler technical

Rated evaporation Rated pressure

Rated steam tempe


Feed water temper


Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
300 0.7 170℃ 20℃ 87% 28 25 15 25 2000 1400 2700 1.35 49.3
600 0.7 170℃ 20℃ 93% 29 32 15 25 2500 1800 2500 4.1 76.8
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

The 600kg wood chip steam industrial food boiler application area:600kg 500kg wood chip cng fired steam industrial food boiler


Application field description:

For washing ironing industry:dry

For chemical industry:Chemical and fertilizing

For phaemaceutical industry:Dry medicine

For bathing and heating:Heating water by generating steam

and so on...

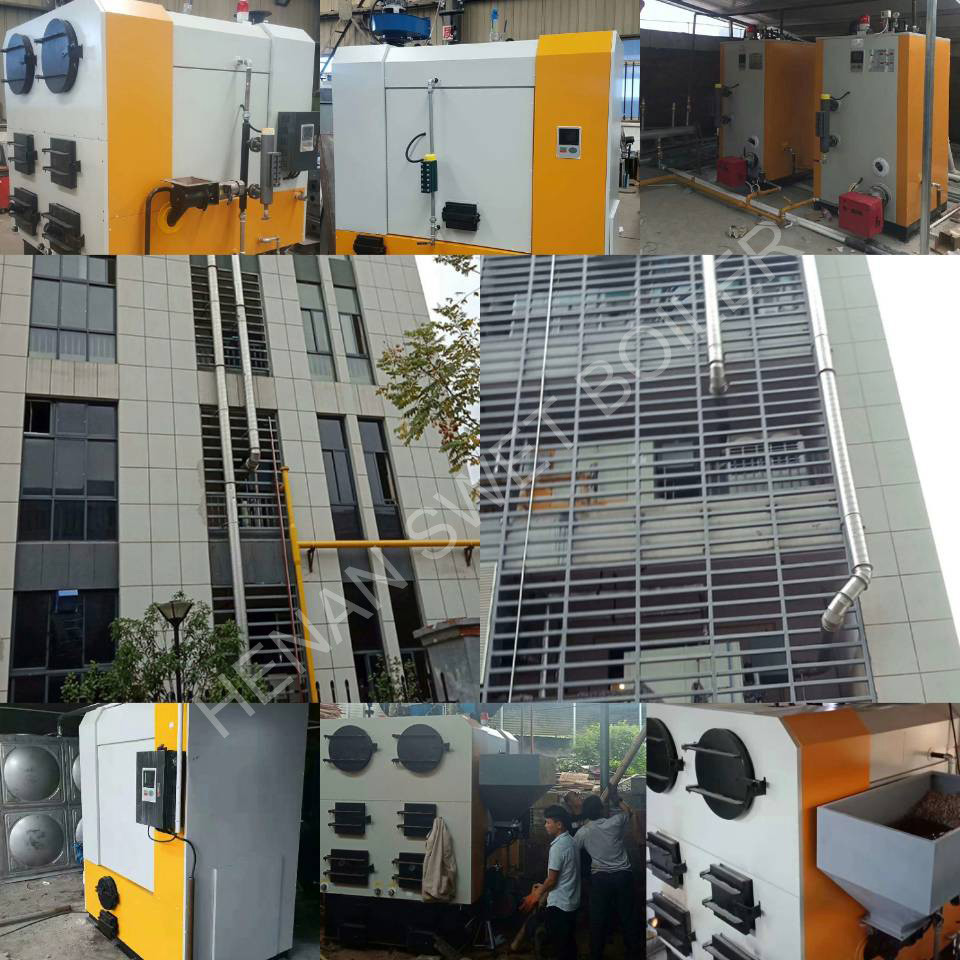

our engineering case:

600kg 500kg wood chip cng fired steam industrial food boiler


Related Products
Company Information

1.Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.

2.It's the national designated A-class boiler and D1,D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.It holds level 1 boiler installation permit. National special equipment manufacturing license ,National specialequipment installation remould maintenance permits and so on.600kg 500kg wood chip cng fired steam industrial food boiler





Our Factory


Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.


600kg 500kg wood chip cng fired steam industrial food boiler

Customer Access



600kg 500kg wood chip cng fired steam industrial food boiler



send inquiry and chat with us



Packaging & Shipping


Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.



Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Q:How is the warranty term?

A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.

Contect us

Pre-sale service:

1.24 hours phone,email,trademanager online services;

2. We will provide you with high-quality technical solutions, product design instructions.

3.We welcome you to visit our boiler factory to have a look and check;


After-sale service:

1.we will delivery the machine as soon as possible according to your requirement,within 20days;

2.We will send rich practiced experience engineers to you to install and test the machine and train

3.We will give you one year guarantee time after the machine can run well;
