600kg 0.7Mpa 1.0Mpa Industrial Steam Boiler Wood Pellet Stove Heating Q345R

Minimum Order Quantity : 1 SET Price : USD 9800-12000 /SET
Packaging Details : Wooden box and bubble film Delivery Time : 15 DAYS
Supply Ability : 1500 SETS PER YEAR
Place of Origin: FORM E F L and so on Brand Name: SWET
Certification: ISO9001 Model Number: WNS

Detail Information

Usage: Industrial,Garment Manufacturer,Industrial/Power Station,Industry Or Power Station,Steam Outputing Style: Horizontal
Condition: New Output: Steam
Weight: 1-20 Ton Pressure: Low Pressure,Low Pressure(1.25MPa)
Structure: Water Tube Warranty: 1 Year
Thermal Efficiency: 95% Color: Customer's Requirement
Application: Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory Working Pressure: ≤1.25MPa
Material: Q345R Steel Plate Steam Temperature: 170-204℃
Type: Fully Automatic PLC Control
High Light:

Wood Pellet Stove Heating Steam Boiler

,

600kg Biomass Steam Boiler

,

Q345R Industrial Steam Boiler

Product Description

Good quality 600kg 0.7Mpa 1.0Mpa wood pellet stove heating industrial boiler



Product Description



1. Advanced steam boiler automatic controller, LCD screen, man-machine interface, users only need to set easily, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other fully automatic operation. The boiler has complete functions, complete protection, simple operation, safe and reliable, and self-diagnosis function. Once an abnormal phenomenon occurs in the boiler operation, the combustion is automatically interrupted, and an audible and visual alarm is issued.



2.The boiler has strong adaptability to load. The well-designed built-in steam separator device meets the requirements of users for higher quality steam. The furnace body facilitates the cleaning of the inside of the furnace, which makes maintenance and maintenance extremely convenient.

Good quality 600kg wood pellet stove heating industrial boiler



600kg wood pellet stove heating industrial boiler core advantages:

1. Easy to install, save a lot of installation materials and costs.

2. The fuel used is energy-saving and environmentally friendly biomass fuel with a wide range of sources, affordable ,low operating costs

3. One-step automatic control, easy to operate, safe and worry-free.







The 600kg wood pellet stove heating industrial boiler production process:Good quality 600kg wood pellet stove heating industrial boiler

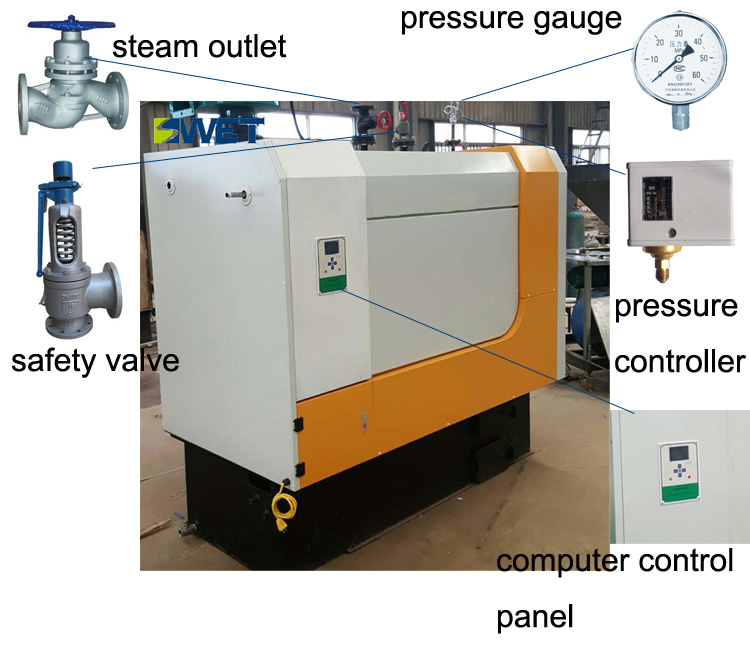

Boiler parts:Good quality 600kg wood pellet stove heating industrial boiler



Good quality 600kg wood pellet stove heating industrial boiler

product parameters

600kg wood pellet stove heating industrial boiler technical parameters:



Fuel Cost analysis(Take 100 kg per hour as an example)
Equipment selection Steam volume Energy consumption Unit Price Operating costs
Electrothermal steam boiler 100kg 72 kw/h 0.08 USD/kw 10.91 USD
Fuel steam boiler 100kg 7 kg/h 0.53 USD/kg 7.42 USD
Gas steam boiler 100kg 8 m³/h natural gas 0.34 USD/m³ 5.45 USD
Biomass steam boiler 100kg 20 kg/h wood pellet 0.08 USD/kg 3.03 USD



600kg wood pellet stove heating industrial boiler technical
Rated evaporation Rated pressure

Rated steam tempe

rature

Feed water temper

ature

Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
300 0.7 170℃ 20℃ 87% 28 25 15 25 2000 1400 2700 1.35 49.3
500 0.7 170℃ 20℃ 93% 29 32 15 25 2500 1800 2500 4.1 76.8
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

The 600kg wood pellet stove heating industrial boiler application area:Good quality 600kg wood pellet stove heating industrial boiler

Application field description:

1.For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.





2.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.



3.For biological equipment industry: sterilizer, school laboratory, thermal test

our engineering case:

Good quality 600kg wood pellet stove heating industrial boiler

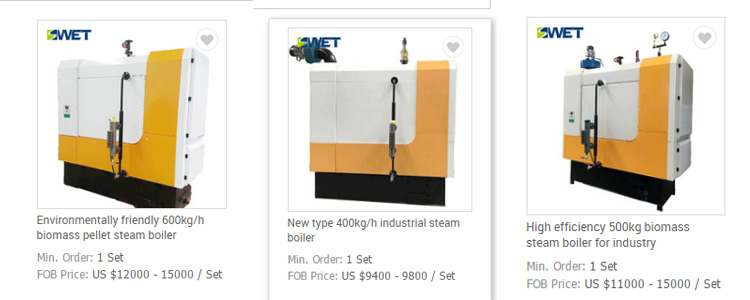

Related Products

Good quality 600kg wood pellet stove heating industrial boiler









Good quality 600kg wood pellet stove heating industrial boiler

Company Information

1.Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.

2.It's the national designated A-class boiler and D1,D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.It holds level 1 boiler installation permit. National special equipment manufacturing license ,National specialequipment installation remould maintenance permits and so on.Good quality 600kg wood pellet stove heating industrial boiler









Our Factory



Good quality 600kg wood pellet stove heating industrial boiler

Good quality 600kg wood pellet stove heating industrial boiler

Customer Access







Good quality 600kg wood pellet stove heating industrial boiler

Packaging & Shipping





Good quality 600kg wood pellet stove heating industrial boiler



FAQ



Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.





Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Q:How is the warranty term?

A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.

Our Services

Service purposes:

1. Focus on customers, the pursuit of excellence, and customers to progress together;
2. Customer demand is our eternal pursuit;
3. Sell a boiler, build a demonstration project, pay a friend, open up a market is my company's business philosophy.



Good quality 600kg wood pellet stove heating industrial boiler
