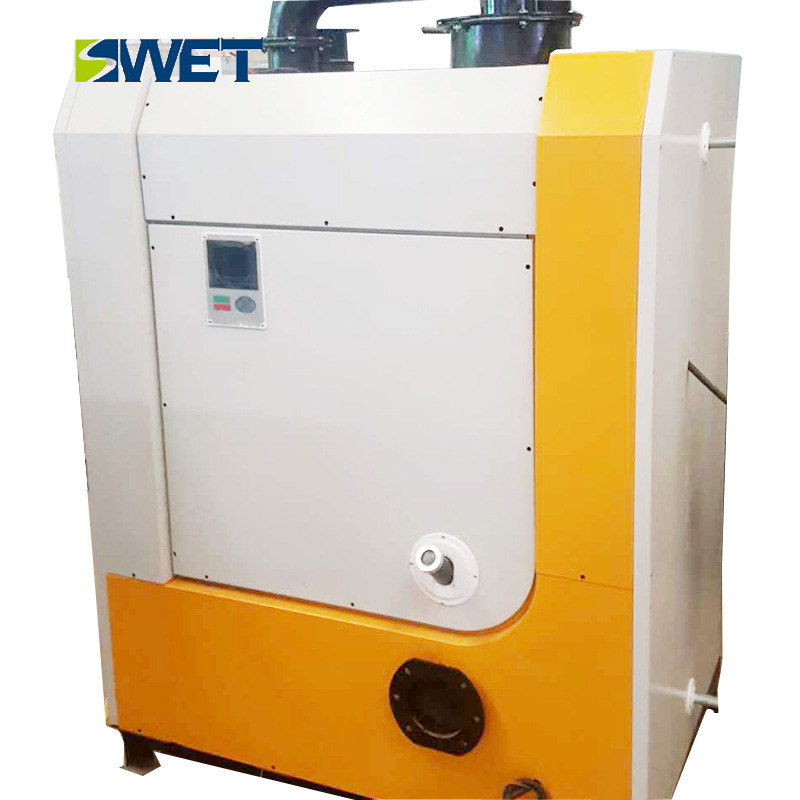

Environmentally Friendly 200kg/H Diesel Steam Boiler For Heating

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: YDZ0.2-0.7-Y

Detail Information

Rated Evaporation: 200kg Per Hour Rated Pressure: 7 Bar
Rated Steam Temperature: 170℃ Thermal Efficiency: 93%
High Light:

200kg/H Diesel Steam Boiler

,

Environmentally Friendly Diesel Steam Boiler

,

ISO9001 Heating Diesel Steam Boiler

Product Description

Environmentally friendly 200kg diesel fuel steam boiler for heating

Product Description



1. The 200kg diesel fuel steam boiler breaks the conventional constraint and increases the steam production per hour to 300 kg. The structure is simple, one-button operation and segmented control. Even if the first failure occurs, the other segments can work normally. Designed with

energy saver, it can recover waste heat from exhaust gas, improve thermal efficiency and reduce operating cost.



2. High efficiency and energy saving: It adopts vertical three-return design, high gas production speed, low cost of use, 30-70% energy saving than fuel (gas) and electricity; five-minute steam production, saving nearly daily compared with traditional boiler Half an hour of fuel costs.



3. It adopts gasification and combustion integrated rotary cutting air distribution design to form fire-torn type gasification combustion with a burning rate of over 90%. It adopts advanced glass fiber silk cotton multi-layer insulation, which has low heat loss and low energy consumption of built-in waste heat recovery system.Environmentally friendly 200kg diesel fuel steam boiler for heating



1. The burner releases heat, which is first absorbed by the water wall by radiative heat transfer. The water of the water wall boils and vaporizes, and a large amount of steam enters the steam drum for steam and water separation.



2. The separated saturated steam enters the superheater and continues to absorb by convection. The flue gas heat at the top of the furnace and the horizontal flue, the tail flue, and the superheated steam reaches the required operating temperature.

Company Information



    Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.

Customer Access

Environmentally friendly 200kg diesel fuel steam boiler for heating

















Packaging & Shipping





Environmentally friendly 200kg diesel fuel steam boiler for heating



FAQ



FAQ:

Q1:How to install a boiler?

A1:This steam boiler is factory-assembled and easy to install. It does not require professional installers to install, and it also saves a lot of installation materials.



Q2: How many years is the boiler’s life span?

A2: The boiler is designed for at least 10 years life span, but under good maintenance, usually the boiler can use at least 15 years, Swet Boiler provide full life after-sales service to each sold boiler.



Q3: How to choose a boiler model?

A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, Swet Boiler will suggest a suitable model based on your usage.



Q4: How is the warranty term?

A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.





Q5: How to get the best price quickly?

A5: We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then confirm the boiler model. (2) The customer needs to provide us with your name, e-mail address and company name, and we will send you a price list immediately. If you use WhatsApp, Skype or WeChat, you can provide us with your ID, which will be more convenient

For our communication.



Q6: Why do you have to believe in the quality of our boilers?

A6:(1). Applied material information strength calculation report;

(2) Non-destructive testing (non-destructive testing) of steel plates, tubes, and electrodes is 100%;

(3) 100% X-ray inspection (welding): to ensure the quality of the entire boiler;

(4). Hydrostatic pressure test: ensuring standard working pressure and safety;

(5). Third party inspection report: Henan Boiler Testing Institute;

(6). Passed ISO:9001 and SGS certificates.



Our Services

Service purposes:

1. Focus on customers, the pursuit of excellence, and customers to progress together;
2. Customer demand is our eternal pursuit;
3. Sell a boiler, build a demonstration project, pay a friend, open up a market is my company's business philosophy.





Environmentally friendly 200kg diesel fuel steam boiler for heating
