Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler
Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler
Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler
Contact Now

Horizontal 1000kg/Hr 1 Ton Industrial Gas Steam Boiler

Minimum Order Quantity : 1 Price : 18400USD-22080USD
Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box. Delivery Time : 15-30 days after payment received
Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: YDZ1.0-0.7-Q

Detail Information
Rated Evaporation: 1000kg/h Rated Pressure: 0.7Mpa
Rated Steam Temperature: 171℃ Thermal Efficiency: 90%
Water Capacity: <29L Length: 2800mm
Width: 1600mm Height: 2400mm
The Calorific Value Of Gas: 8500Kcal/m³ Full Load Gas Comsumption: 75.8m³/h
Style: Horizontal Design Fuel: Gas
Evaporation: 700kw Boiler Evaporation: 600000Kcal
Output: Steam Steam Outlet: DN50
Water Inlet: DN25 Drain Valve: DN25
High Light:

Horizontal Industrial Steam Boiler

,

1000kg/Hr Gas Steam Boiler

,

0.7Mpa Gas Steam Boiler

Product Description

1000kg hr industrial boiler 1ton gas steam boiler

Can be used for civilian or industrial equipment ,provide hot water, dual-use equipment according to the requirements of production and pressure hot water equipment, and atmospheric water vapor.
Sophisticated and beauty: biomass steam generator innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.
Full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient. 4.Built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
1000kg hr industrial boiler 1ton gas steam boiler.jpg
Item YDZ0.3-0.7-Q YDZ0.4-0.7-Q YDZ0.5-0.7-Q YDZ0.7-0.7-Q YDZ1.0-0.7-Q
Rated evaporation Kg/h 300 400 500 700 1000
Rated pressure Mpa 0.7 0.7 0.7 0.7 0.7
Rated steam temperature ℃ 170 170 170 170 170
Design thermal efficiency % 92 92 92 92 92
Water capacity L <29 <29 <29 <29 <29
Steam outlet DN 25 32 32 40 50
Water intake DN 25 25 25 25 25
Drain valve DN 25 25 25 25 25
Dimensions L mm 2400 2400 2700 2700 2800
W mm 1500 1500 1600 1600 1600
H mm 1600 1800 2400 2400 2400
Shipping weight T 1.9 2 3.6 3.7 3.8
Full load gas consumption m³/h 22.7 30.3 37.9 60.7 75.8





1000kg hr industrial boiler 1ton gas steam boiler.png
1000kg hr industrial boiler 1ton gas steam boiler.png
1000kg hr industrial boiler 1ton gas steam boiler.png



Small steam boiler applicable scenario
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
1000kg hr industrial boiler 1ton gas steam boiler

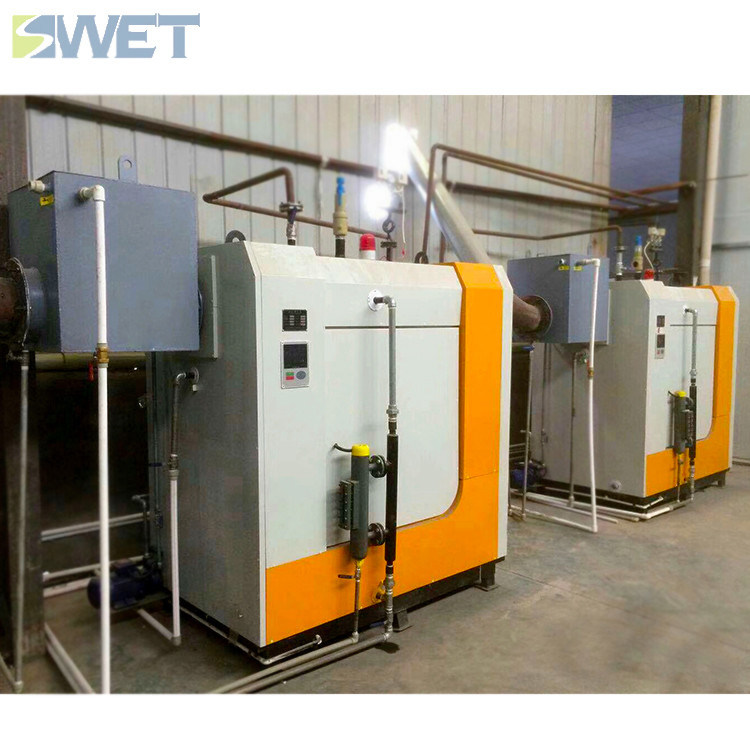

Our engineering case
1000kg hr industrial boiler 1ton gas steam boiler.png
Company Information
1000kg hr industrial boiler 1ton gas steam boiler.png
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.
In 1987 China's first circulating fluidized bed boiler was born in our factory.
In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
OUR ENTERPRISE HONOR
1000kg hr industrial boiler 1ton gas steam boiler
OUR ADVANTAGES
The China’s first circular flow bed (CFB)boiler manufacturer.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
1000kg hr industrial boiler 1ton gas steam boiler.png
Packaging & Shipping
1000kg hr industrial boiler 1ton gas steam boiler
Some of our domestic customers
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Our Customer Visit
1000kg hr industrial boiler 1ton gas steam boiler
Any Question, Please contact us ,we serve you 24 hours !
1000kg hr industrial boiler 1ton gas steam boiler
1000kg hr industrial boiler 1ton gas steam boiler
