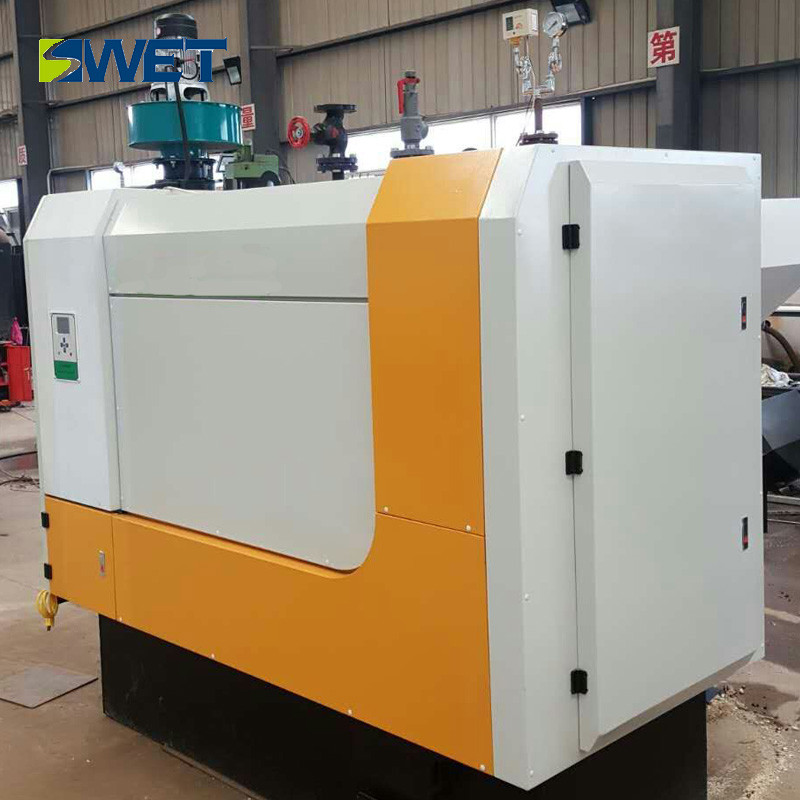

Residential 0.7mpa Gas Steam Boiler 150kg / H Replacement For Natural Gas
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
|Minimum Order Quantity :||1 SET||Price :||Negotiation|
|Packaging Details :||The300kg steam boiler bady with plywood packaging.||Delivery Time :||10 WORKING DAY|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||3000 SETS PER YEAR|
|Place of Origin:||HENAN,CHINA||Brand Name:||SWET|
|Product Name:||High Quality 500kg Small Water Tube Gas Steam Boiler For Industry||Item:||YDZ-6010 Gas Steam Boiler|
|Design Fuel:||Gas/oil||Color:||Customer's Requirement|
|Warranty:||12 Months||Thermal Efficiency:||Over 92%|
|The Biggest Fuel Consumption(Nm3/h):||46.9||Rated Evaporation (kg/h):||5300kg|
|Rated Steam Temperature(℃):||170||Rated Steam Pressure(Mpa):||0.7|
oil steam boiler,
natural gas steam boiler
1. Advanced steam boiler automatic controller, LCD screen, man-machine interface, users only need to set easily, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other fully automatic operation. The boiler has complete functions, complete protection, simple operation, safe and reliable, and self-diagnosis function. Once an abnormal phenomenon occurs in the boiler operation, the combustion is automatically interrupted, and an audible and visual alarm is issued.
2.The boiler has strong adaptability to load. The well-designed built-in steam separator device meets the requirements of users for higher quality steam. The furnace body facilitates the cleaning of the inside of the furnace, which makes maintenance and maintenance extremely convenient.
500kg small water tube gas steam boiler core advantages:
1. Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
2. Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable
3. Fully automatic control system with automatic high and low water level protection, saving manpower.
Working principle of 500kg small water tube gas steam boiler:
1.The burner releases heat, which is first absorbed by the water wall by radiative heat transfer. The water of the water wall boils and vaporizes, and a large amount of steam enters the steam drum for steam and water separation.
2.The separated saturated steam enters the superheater and continues to absorb by convection. The flue gas heat at the top of the furnace and the horizontal flue, the tail flue, and the superheated steam reaches the required operating temperature.
the 500kg small water tube gas steam boiler application area:
1. For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For chemical industry: activated carbon heating and disinfection, high temperature plating.
3.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
4.For biological equipment industry: sterilizer, sterilizer, school laboratory, thermal test
and so on...
our engineering case:
500kg small water tube gas steam boiler cost analysis:
|Fuel Cost analysis(Take 100 kg per hour as an example)|
|Equipment selection||Steam volume||Energy consumption||Unit Price||Operating costs|
|Electrothermal steam boiler||100kg||72 kw/h||0.08 USD/kw||10.91 USD|
|Fuel steam boiler||100kg||7 kg/h||0.53 USD/kg||7.42 USD|
|Gas steam boiler||100kg||8 m³/h natural gas||0.34 USD/m³||5.45 USD|
|Biomass steam boiler||100kg||20 kg/h wood pellet||0.08 USD/kg||3.03 USD|
500kg small water tube gas steam boiler boiler technical parameters:
1.Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
2.It's the national designated A-class boiler and D1,D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.It holds level 1 boiler installation permit. National special equipment manufacturing license ,National specialequipment installation remould maintenance permits and so on.
Q1:How to install a boiler?
A1:This boiler is factory-assembled and easy to install. It does not require professional installers to install, and it also saves a lot of installation materials.
Q2: How many years is the boiler’s life span?
A2: The boiler is designed for at least 10 years life span, but under good maintenance, usually the boiler can use at least 15 years, Swet Boiler provide full life after-sales service to each sold boiler.
Q3: How to choose a boiler model?
A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, Swet Boiler will suggest a suitable model based on your usage.
Q4: How is the warranty term?
A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Q5: How to get the best price quickly?
A5: We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then confirm the boiler model. (2) The customer needs to provide us with your name, e-mail address and company name, and we will send you a price list immediately. If you use WhatsApp, Skype or WeChat, you can provide us with your ID, which will be more convenient for our communication.
Q6: Why do you have to believe in the quality of our boilers?
A6:(1). Applied material information strength calculation report;
(2) Non-destructive testing (non-destructive testing) of steel plates, tubes, and electrodes is 100%;
(3) 100% X-ray inspection (welding): to ensure the quality of the entire boiler;
(4). Hydrostatic pressure test: ensuring standard working pressure and safety;
(5). Third party inspection report: Henan Boiler Testing Institute;
(6). Passed ISO:9001 and SGS certificates.
1. Focus on customers, the pursuit of excellence, and customers to progress together;
2. Customer demand is our eternal pursuit;
3. Sell a boiler, build a demonstration project, pay a friend, open up a market is my company's business philosophy.
